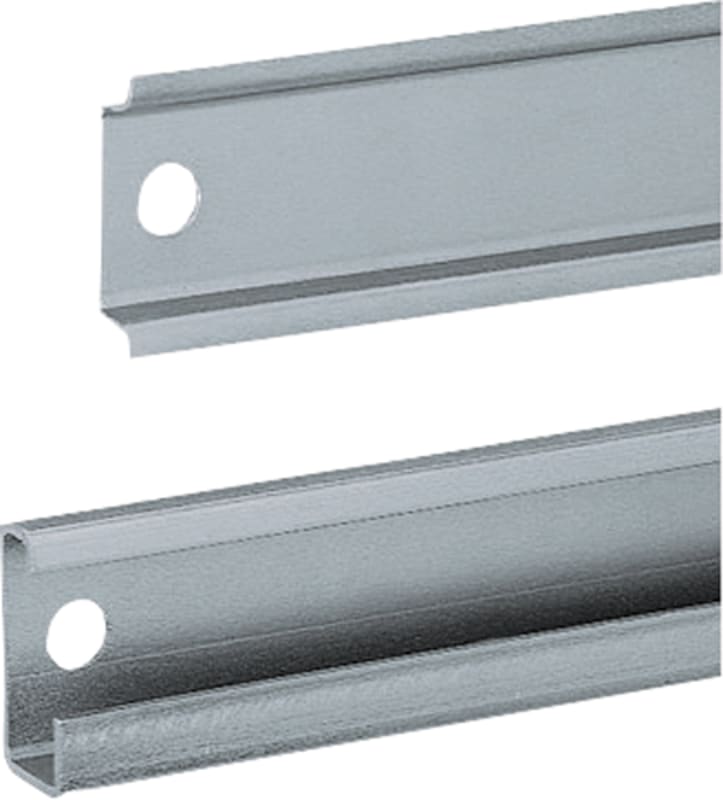

Schneider Electric One symmetric mounting rail perforated 35X7.2 mm L2000 mm type B Supply: 20 NSYSDR200BD
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSDR200BD — One symmetric mounting rail perforated 35x7.2 mm L2000 mm type B Supply: 20.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSDR200BD
- EAN / GTIN
- 3606480184338
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Anwendung
- Multi-purpose
- Range
- PanelSeT
- Product or component type
- Rail
- Device short name
- TR
- Accessory / separate part category
- Mounting accessory
- Type of rail
- Symmetrical DIN
- Enclosure nominal dimensions
- -
- Range compatibility
- PanelSeT
- Device composition
- 1 rail
- Quantity per set
- Set of 10
- Material
- Galvanised steel
- Surface finish
- Perforated
- Fixing mode
- By fixing element - structure of enclosure location
- Adjustment
- Pitch 25 mm; Continuous adjustment
- Length
- 2000 mm
- Height
- Nominal: 7.2 mm
- Width
- Nominal: 35 mm
- thickness
- 1 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.450 cm
- Package 1 Width
- 4.500 cm
- Package 1 Length
- 200.000 cm
- Package 1 Weight
- 660.000 g
- Unit Type of Package 2
- CAR
- Number of Units in Package 2
- 10
- Package 2 Height
- 4.500 cm
- Package 2 Width
- 4.500 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 6.600 kg
- Unit Type of Package 3
- P2M
- Number of Units in Package 3
- 800
- Package 3 Height
- 45.000 cm
- Package 3 Width
- 200.000 cm
- Package 3 Length
- 120.000 cm
- Package 3 Weight
- 550.000 kg
- Country of origin
- IT
- Warranty (in months)
- 18
- Model
- DIN rail (top hat rail) 35/7.5 mm
- Surface protection
- Continuously galvanised
- Material thickness
- 1 mm
- Punch shape
- Long-slot
- Drill hole distance centrically
- 19.7 mm
- Surface finishing
- Galvanic/electrolytic zinc plated
Standards & Compliance
- HS Code
- 7216.61
Cross References
- EAN 3606480184338
- SAP 1000470695
- Code 8580247
