Modular unit 135M 800X600X200
Pricing
Request a quote
We reply within 24 hours
Product Description

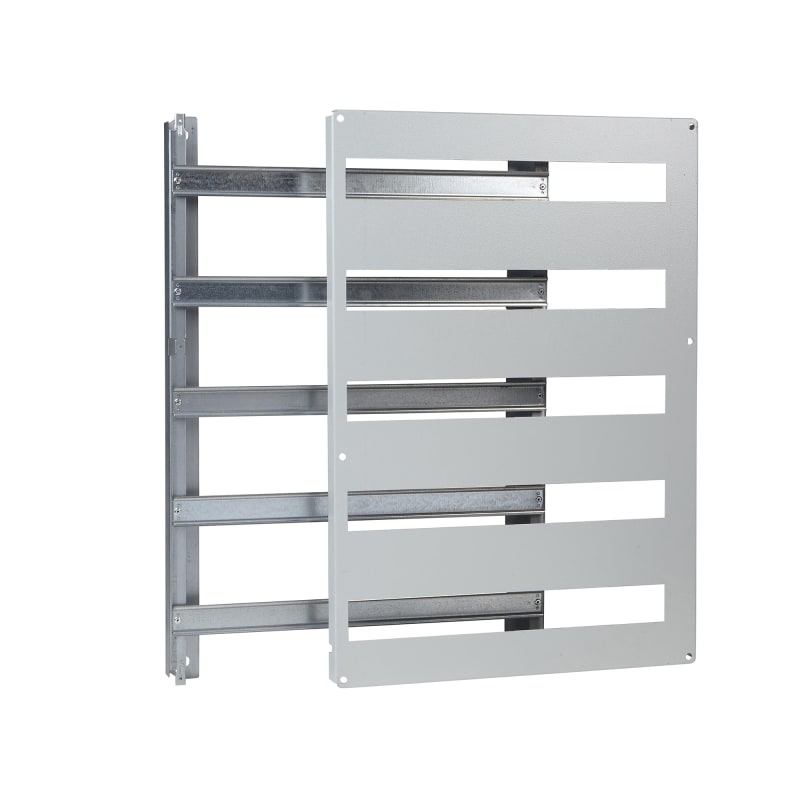

Schneider Electric NSYDLCR135 Modular unit 135M 800X600X200.
Technical Specifications
- Manufacturer part number (MPN)
- NSYDLCR135 EAN / GTIN: 3606480162626 Sales unit: pcs Dimensions: 800×600×200 Range: PanelSeT Accessory / separate part category: Mounting accessory Application: Multi-purpose; Modular distribution application Product or component type: Chassis Device short name: DL For enclosure nominal dimensions: - Mounting location: Front of enclosure Range compatibility: PanelSeT CRN Device composition: 1 chassis structure; 1 neutral/earth strip 2 x 16 mm² 5 x 6 mm²; 1 front panel; 5 35 mm DIN rail Quantity per set: Set of 1 material: Steel Colour: Front panel: grey (RAL 7035) Surface finish: Polyester powder Fixing mode: By fixing element - on back with supports location Adjustment: In height from 40 to 85 mm for DIN rail Number of horizontal rows: 5 Total number of 18 mm modules: 135 Type of front plate: Plain and cut-out plates Number of cut-out: 5 cut-outs Height: 755 mm Width: 555 mm Depth: 110 mm Number of Units in Package 1: 1 Number of Units in Package 2: 30 Warranty (in months): 18 With mounting plate: No Type of covering: With notch With cover: No Number of DIN-rails: 5 Number of modular spacings per DIN-rail: 27 With N-PE clamp: Yes Country of origin: Spain
Standards & Compliance
- HS Code
- 9403.99
Cross References
- EAN 3606480162626
- SAP 1200496589
- Code 82629346
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric APC Back-UPS CS 325VA, 230V, without auto shutdown software, 4 IEC outlets (1 surge) BK325I
Schneider Electric
Schneider Electric TeSys K -Time delay auxiliary contact block - 1 C/O - 110...240 V - 1…30S LA2KT2U
Schneider Electric
Riflet Pilot Light Head Yellow F/LE
ZB4BV053S
Schneider Electric
Schneider Electric APC Service Bypass Panel 200/208/230/240V 125A HW Input/Output SBP20KP
Schneider Electric
Door for PrismaSeT G CABINET-IP55-27MOD B600
LVS08327
Schneider Electric
APC Replacement Battery Cartri (APCRBC143)
Schneider Electric
Schneider Electric TeSys GV4 - magnetic circuit breaker - 50A 3P - with compression lug GV4LE50S6
Schneider Electric
Schneider Electric STD - SAE - remote control dimmer - 400 W CCTDD20002
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYDLCR135?
- NSYDLCR135 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYDLCR135.
- What is the HS code for NSYDLCR135?
- The customs tariff (HS) code for NSYDLCR135 is 9403.99.
- Who manufactures NSYDLCR135?
- NSYDLCR135 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYDLCR135?
- Yes — the NSYDLCR135 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYDLCR135?
- The minimum order quantity is 1.
- Is NSYDLCR135 available?
- Yes — NSYDLCR135 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
