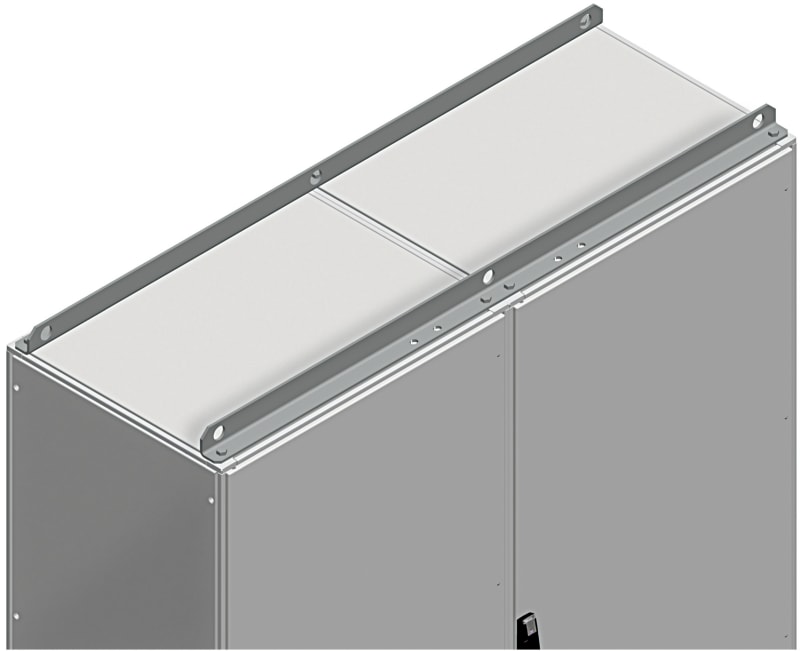

Schneider Electric PanelSeT SFN/SF Lifting Bar 2400 mm Steel Set of 2
Pricing
Request a quote
We reply within 24 hours
Product Description
Pair of steel lifting bars sized for a 2400 mm PanelSeT SF, SFHD, SFM or SFN floor-standing enclosure. Zinc-coated finish with a permanent permissible load of 3000 kg, fixed by M12 screws directly to the enclosure uprights. Enables crane or hoist relocation of assembled cabinets during installation.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFTB24
- EAN / GTIN
- 3606485131856
- Sales unit
- pcs
- Area
- PanelSeT
- category
- Lifting accessory
- Product or component type
- Lifting bar
- Application
- Multi-purpose
- Mounting location
- Enclosure top
- Mounting support
- Directly in the axis of the uprights
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SFHD; PanelSeT PanelSeT SFM
- Device composition
- 2 lifting bars; fixing elements
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Zinc coated
- Fixing mode
- By screws - screw type M12
- Permanent permissible load
- 3000 kg
- Length
- Nominal: 2400 mm; Real: 2395 mm
- Height
- 60 mm
- Depth
- 60 mm
- Diameter
- 32 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 9.500 cm
- Package 1 Width
- 12.000 cm
- Package 1 Length
- 289.000 cm
- Package 1 Weight
- 40.000 kg
- Unit Type of Package 2
- PAL
- Number of Units in Package 2
- 10
- Package 2 Height
- 95.000 cm
- Package 2 Width
- 12.000 cm
- Package 2 Length
- 289.000 cm
- Package 2 Weight
- 400.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Transport bracket
- Width
- 2400 mm
- Load bearing capacity
- 3000 kg
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485131856
- SAP 1000317599
- Code 8822926
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Canalis KBA Cable Duct 25 mm 3 m
KFB25CD253
Schneider Electric
Schneider Electric empty flush mounted box - XAP-E - insulated material - without opening - IP 65 XAPE901
Schneider Electric
VAD-strobe 709APO (FFS06728123)
Schneider Electric
SET A 4 PCS Cable LUG 95 mm² CU
28952
Schneider Electric
Schneider Electric Modbus SL diagnostic expansion module with spring term XPSMCMCO0000MBG
Schneider Electric

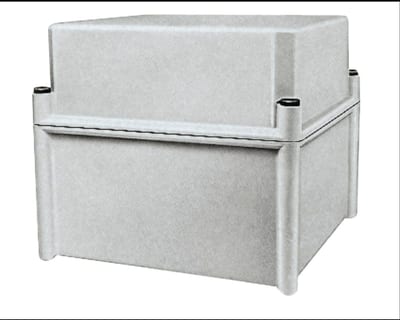

Schneider Electric PLS box, polyester rear, opaque PC cover IP65 18X27X18CM NSYPLSC1827G
Schneider Electric

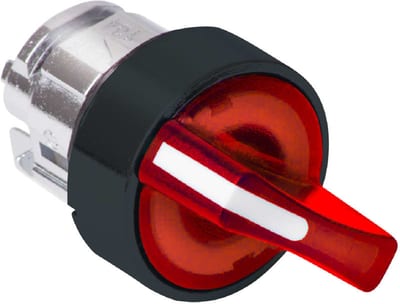

Selector switch with LIGHT 3POS.RET.H RED
ZB5AK1843
Schneider Electric

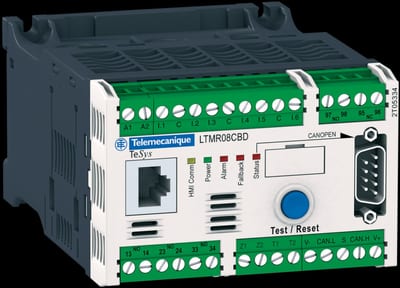

Tesys T Canop 0,4-8A 230VAC
