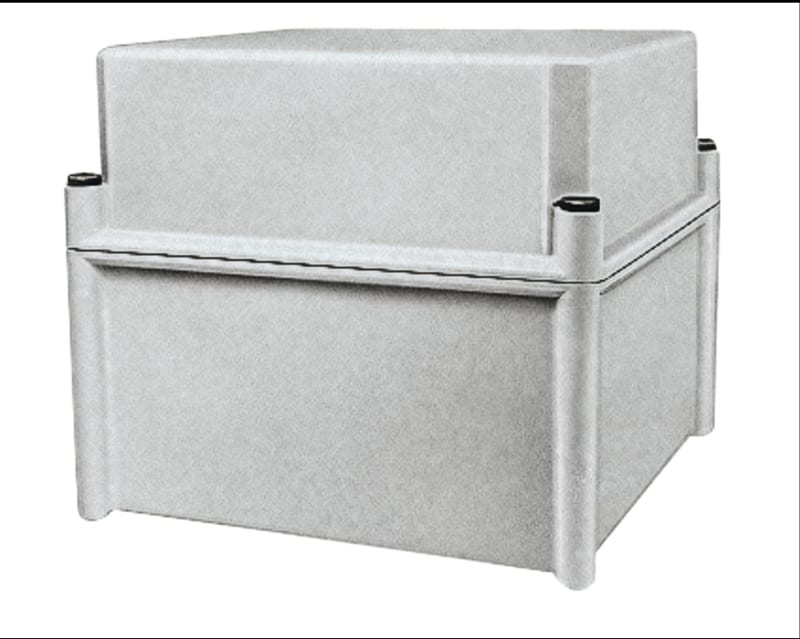

Schneider Electric PLS box, polyester rear, opaque PC cover IP65 18X27X18CM NSYPLSC1827G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYPLSC1827G sealed PC PLS 7035 box18x27x18.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLSC1827G EAN / GTIN: 3606480777097 Sales unit: pcs Range: PanelSeT Product name: PanelSeT PLS Device short name: PLS Enclosure type: Multi-purpose Category: Insulating modular box Nominal height: 180 mm Nominal width: 270 mm Nominal depth: 180 mm Enclosure mounting: Wall mounted Device composition: 1 cover: on enclosure; 1 rear part: on enclosure; locking screws Body type: One piece moulded Type of front cover: Low plain cover Lock type: Slot screw Removable parts: Cover locking screw material: Cover: polycarbonate; Rear: polyester reinforced with fibreglass Colour: Body: grey (RAL 7035) Standards: IEC 62208; NEMA classification 13; NEMA 4X Product certifications: UL Electrical insulation class: Class II IP degree of protection: IP66 conforming to IEC 60529 IK degree of protection: IK09 conforming to IEC 62262 Fire resistance: 960 °C conforming to IEC 62208 Ambient air temperature for storage: -30…70 °C Unit Type of Package 1: PCE Number of Units in Package 1: 1 Package 1 Height: 19.000 cm Package 1 Width: 21.000 cm Package 1 Length: 28.000 cm Package 1 Weight: 1.376 kg Unit Type of Package 2: PAM Number of Units in Package 2: 112 Package 2 Height: 138.000 cm Package 2 Width: 100.000 cm Package 2 Length: 120.000 cm Package 2 Weight: 169.000 kg Country of origin: ES Warranty (in months): 18 Width: 270 mm Height: 180 mm Depth: 180 mm RAL-number: 7035 With mounting plate: No Impact strength: IK09 Degree of protection (IP): IP66
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480777097
- SAP 1000752681
- Code 8487718
Product Documentation
