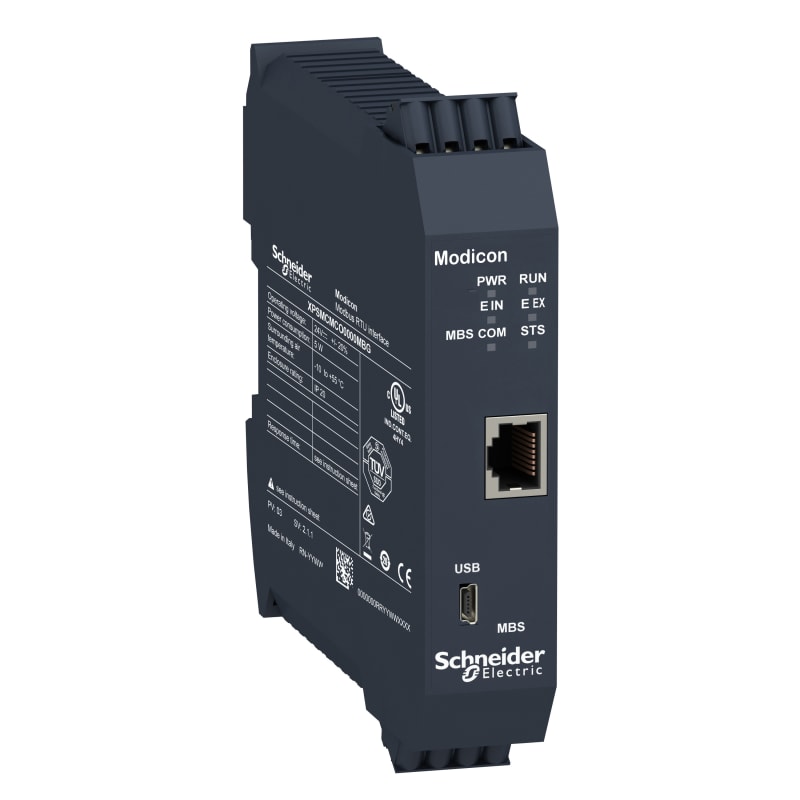

Schneider Electric Modbus SL diagnostic expansion module with spring term XPSMCMCO0000MBG

Schneider Electric XPSMCMCO0000MBG Modbus SL diagnostic expansion module for Modicon MCM with spring terminals.

Manufacturer part number (MPN)

XPSMCMCO0000MBG

EAN / GTIN

3606480748455

Sales unit

pcs

Range of product

Modicon MCM

Product or component type

Non-safe communication module

Device short name

XPSMCM

[Us] rated supply voltage

24 V - 20...20 % DC

Power dissipation in W

3 W

Quality labels

CE

Range compatibility

Preventa XPSMCM

Connector type

RJ45

Number of port

1

Method of access

Server

Transmission rate

1.2 kbit/s; 2.4 kbit/s; 4.8 kbit/s; 9.6 kbit/s; 19.2 kbit/s; 38.4 kbit/s

Communication port protocol

Modbus serial

Current consumption

0.125 mA

Maximum cable distance between devices

1000 m

Local signalling

LED green with PWR marking for power ON; LED green with RUN marking for operating; LED red with E IN marking for internal error; LED red with E EX marking for external error; LED green/red with NET marking for connection state; LED green/red with STS marking for communication status

Connections - terminals

2 spring clamp terminals, removable terminal block

Cable cross section

0.2…2.5 mm² - 24 AWG...14 AWG flexible cablewithout cable end; 0.25…2.5 mm² - 23 AWG...14 AWG flexible cablewith cable end, with bezel; 0.25…2.5 mm² - 23 AWG...14 AWG flexible cablewith cable end, without bezel; 0.2…2.5 mm² - 24 AWG...14 AWG solid cablewithout cable end; 0.5…1 mm² - 20 AWG...18 AWG flexible cablewith cable end, with double bezel

Mounting support

Omega 35 mm DIN rail conforming to EN 50022

Width

22.5 mm

Height

99 mm

Depth

114.5 mm

Product weight

0.3 kg

Product certifications

cULus; RCM; TÜV

IP degree of protection

IP20

Ambient air temperature for operation

-10…55 °C

Ambient air temperature for storage

-20…85 °C

Relative humidity

10…95 %

Pollution degree

2

Insulation

250 V AC between power supply and housing conforming to IEC 61800-5-1

Overvoltage category

II

Electromagnetic compatibility

Electrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2; Electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2; Susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3; Susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3

Vibration resistance

+/-0.35 mm (f= 10…55 Hz) conforming to IEC 61496-1

Shock resistance

10 gn (duration = 16 ms) for 1000 shocks on each axis conforming to IEC 61496-1

Operating altitude

2000 m

service life

20 year(s)

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.5 cm

Package 1 Width

12.8 cm

Package 1 Length

16.2 cm

Package 1 Weight

231 g

Unit Type of Package 2

S01

Number of Units in Package 2

6

Package 2 Height

15 cm

Package 2 Width

15 cm

Package 2 Length

40 cm

Package 2 Weight

1.649 kg

Country of origin

IT

Warranty (in months)

18

Power consumption

1.1 W

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces other

1

With optical interface

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

Yes

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

Redundancy

No

Type of data transmission

Serial

With potential separation

No

SIL according to IEC 61508

None

Suitable for safety functions

No

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

None

Explosion safety category for dust

None

HS Code

8536.90
