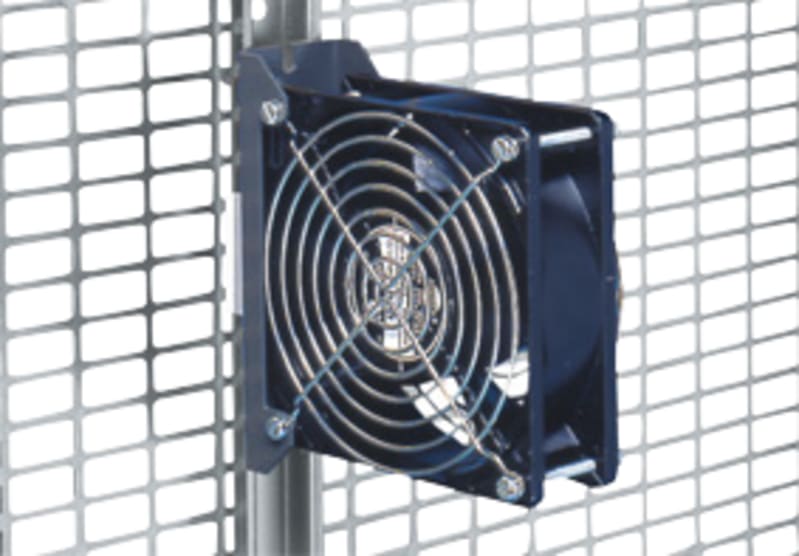

Schneider Electric Motor fan 35 M3/h 230V NSYCVF35M230
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCVF35M230 FAN 35M3/H 230V.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCVF35M230
- EAN / GTIN
- 3606480151484
- Sales unit
- pcs
- Voltage
- 230 V
- Flow rate
- 35 m³/h
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- Fan motor
- Input voltage
- 230 V 50/60 Hz
- Absorbed power
- 16 W 50 Hz; 14 W 60 Hz
- Noise level < at
- 32 dB
- Height
- External: 80 mm
- Width
- External: 80 mm
- Depth
- External : 25 mm
- Cut-out dimensions
- Ø 78 mm
- Device composition
- 1 axial motor
- Number of Units in Package 1
- 1
- Country of origin
- CN
- Warranty (in months)
- 18
- Mounting method
- Screw mounting
- Colour
- Black
- RAL-number
- 9005
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- Yes
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP00
- With protective cover
- Yes
- With filter
- No
- Rated power
- 16 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 35 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 50 dB(A)
- Operating voltage AC 50 Hz
- 230 V
- Operating voltage AC 60 Hz
- 230 V
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606480151484
- SAP 1000470005
- Code 8104485
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Residual current circuit breaker (RCCB), ACTI9 iID, 4P, 25A, B-SI type, 30MA, double terminal A9Z61425
Schneider Electric

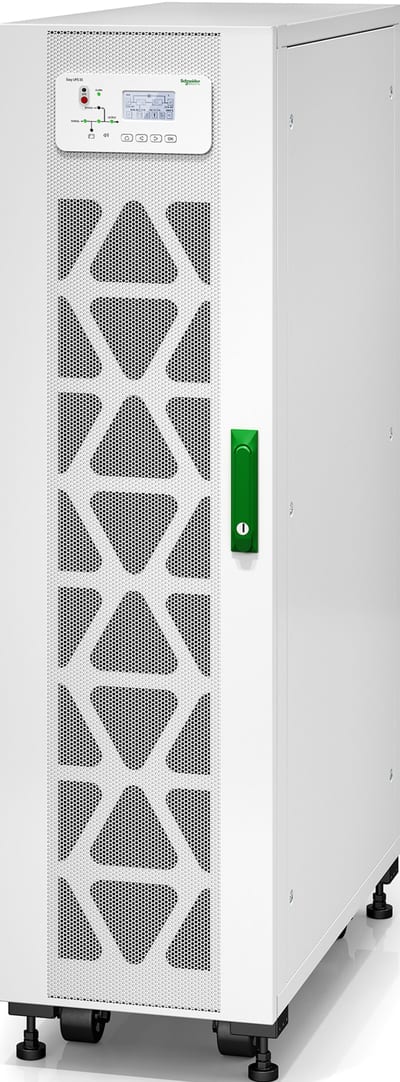

Schneider Electric Easy UPS 3S 15 kVA 400V 3:3 UPS, 2 internal 7AH modular battery strings, expandable to 3 E3SUPS15KHB2
