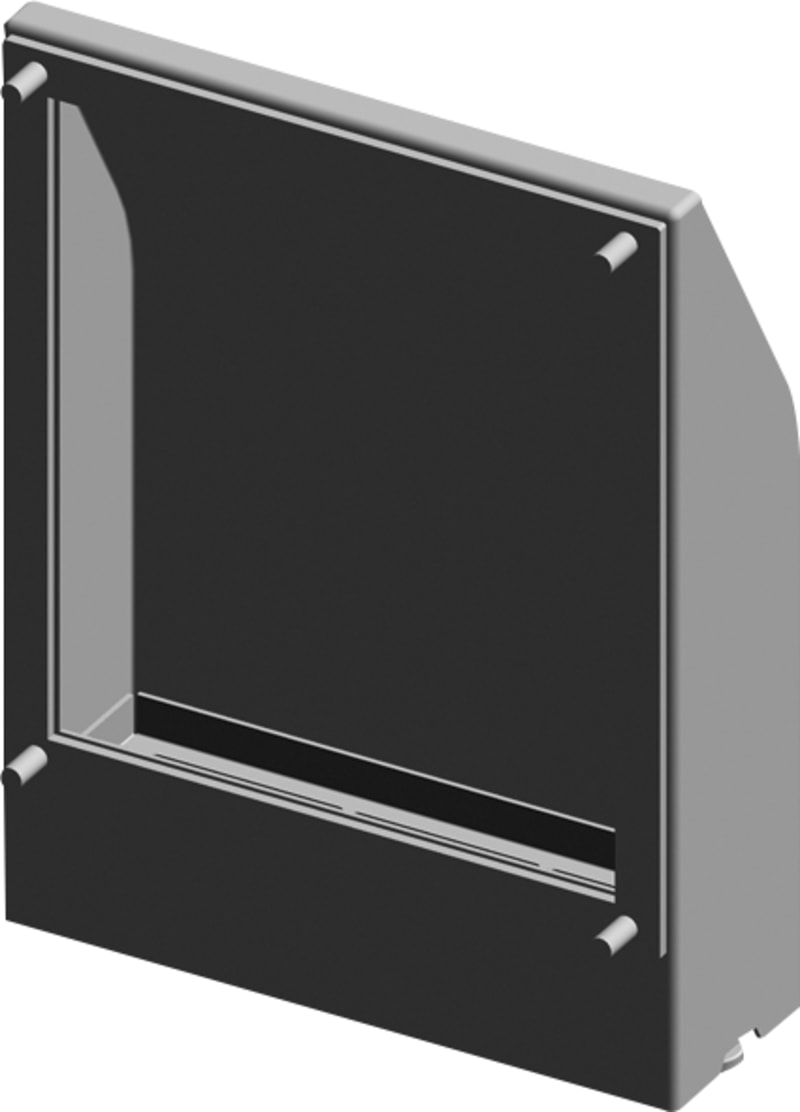

Schneider Electric EMC cover cut-out 291X291 with filter IP55 NSYCAP291LE
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCAP291LE EMC EL IP55 UTSP.291X291mm.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCAP291LE
- EAN / GTIN
- 3606480152023
- Sales unit
- pcs
- IP rating
- IP55
- Range
- ClimaSys
- Product name
- ClimaSys CA
- Product or component type
- EMC sealing cover
- Accessory / separate part category
- Thermal management accessory
- Mounting location
- On enclosure
- fixing mode
- By screws
- Range compatibility
- ClimaSys ClimaSys CV EMC fan; Prisma Prisma P
- Device composition
- 1 cover; 1 filter
- Material
- Painted steel
- Colour
- Grey (RAL 7035)
- Cut-out dimensions
- 291 x 291 mm
- Height
- External: 430 mm
- Width
- External: 373 mm
- Depth
- External : 105 mm
- IP degree of protection
- IP54
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 15.500 cm
- Package 1 Width
- 37.000 cm
- Package 1 Length
- 55.000 cm
- Package 1 Weight
- 4.370 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 20
- Package 2 Height
- 85.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 113.000 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Mounting method
- Screw mounting
- Suitable for enclosure building depth
- 400 mm
- For max. number of fans
- 1
- With built-in filter
- Yes
- Degree of protection (IP)
- IP55
- Surface finishing
- Lacquered
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606480152023
- SAP 1000470021
- Code 8104537
Product Documentation
