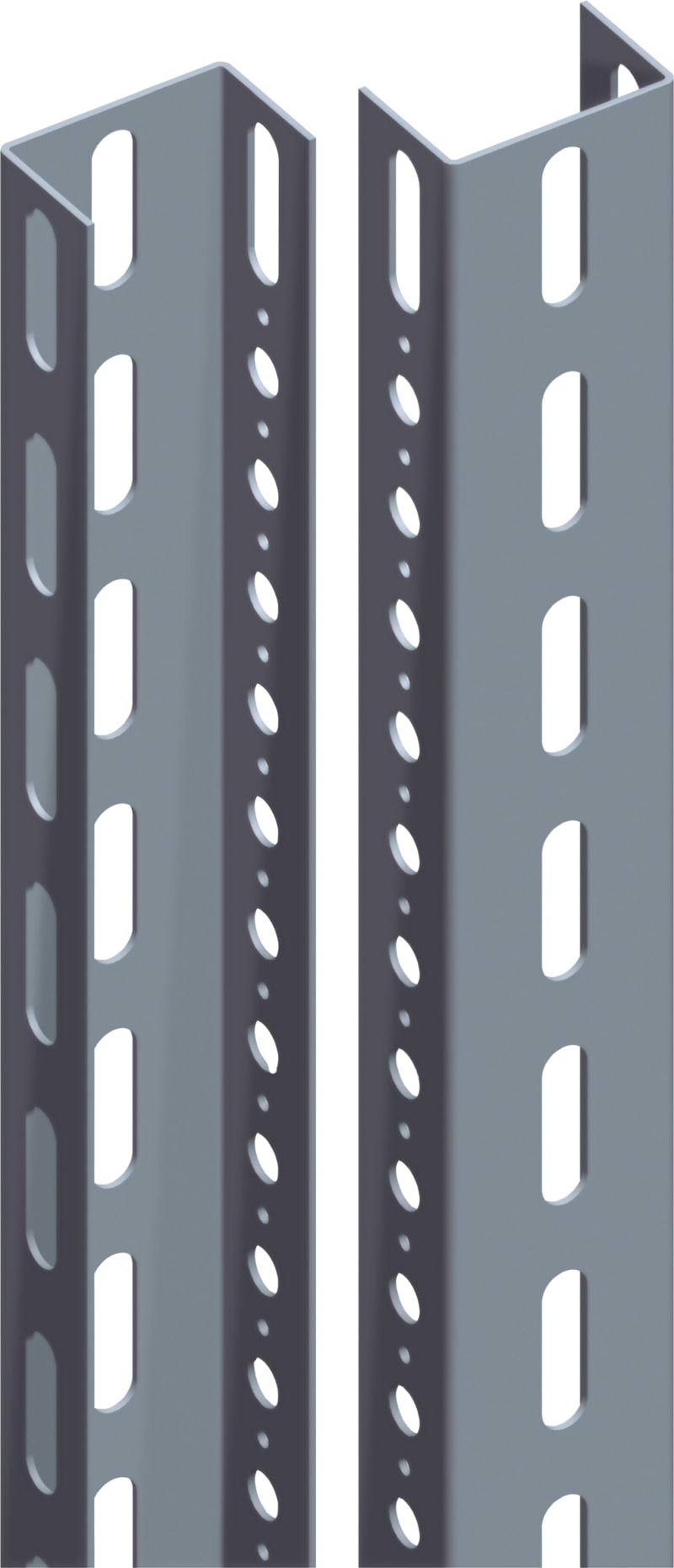

Vertical Profile Upright 2000mm PanelSeT
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYVR20 vertical profile upright 2000 mm for PanelSeT SF/SM/SFX/SMX enclosures. Galvanised steel construction adjustable in 25 mm and 50 mm increments, supplied as a set of two uprights. Compatible with mounting plate fixing bracket and upright fixing bracket.
Technical Specifications
- Manufacturer part number (MPN)
- NSYVR20
- EAN / GTIN
- 3606485133720
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Standard upright
- device application
- Multi-purpose
- enclosure nominal dimensions
- - H: 2000 mm
- Mounting support
- Mounting plate fixing bracket; Upright fixing bracket
- Range compatibility
- PanelSeT SF; PanelSeT SM; PanelSeT SFX; PanelSeT SMX
- Device composition
- 2 upright
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Adjustment
- Adjustable in height every 25 mm; Adjustable in height every 50 mm
- Length
- 1896 mm
- Height
- 2000 mm
- Width
- 50 mm
- Depth
- 30 mm
- thickness
- 2 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.500 cm
- Package 1 Width
- 5.000 cm
- Package 1 Length
- 190.000 cm
- Package 1 Weight
- 5.064 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 140
- Package 2 Height
- 55.000 cm
- Package 2 Width
- 120.000 cm
- Package 2 Length
- 200.000 cm
- Package 2 Weight
- 735.000 kg
- Country of origin
- IN
- Warranty (in months)
- 18
- Model
- Mounting rail
- Suitable for enclosure building height
- 2000 mm
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606485133720
- SAP 1000090324
- Code 8846568
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Socket, Mureva PK, panel-mounted, fast connection, 32A, 3P+N+E, 400V, IP44 PKY32G435
Schneider Electric
Inf.socket 16A 3P+J m/br 400V (82085)
Schneider Electric
Front plate NS1600B-3200-PRISMASET P
LVS03716
Schneider Electric
Schneider Electric processor module M340 - max 1024 discrete + 256 analog I/O - CANOpen BMXP3420302
Schneider Electric
Cable Compartment with door-PrismaSeTG -IP55 27MOD
LVS08347
Schneider Electric
Schneider Electric Universal Mounting Accessory, Harmony XV4/XV6/XVB7 Modular Tower Light, Plastic Side Entry Adapter, Grey XVZ07
Schneider Electric
Schneider Electric cable on reel - free ends - 2 line testers - 100 m TSXCBY1000
Schneider Electric

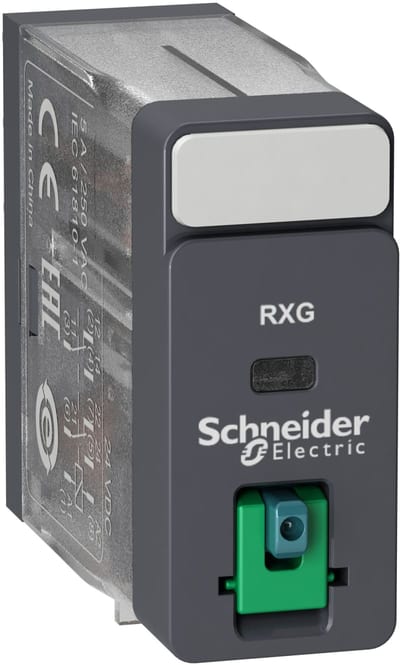

Schneider Electric Interface plug-in relay, 5 A, 2 CO, lockable test button, 12 V DC RXG21JD
