Front plate NS1600B-3200-PRISMASET P
Pricing
Request a quote
We reply within 24 hours
Product Description

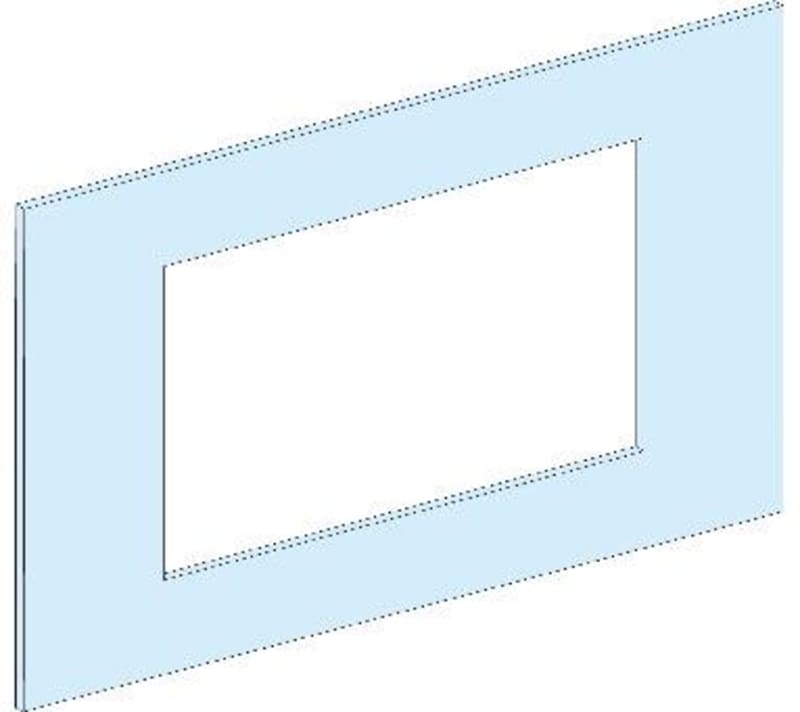

Schneider Electric LVS03716 Front plate for NS1600B-3200-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS03716
- EAN / GTIN
- 3606481872616
- Sales unit
- pcs
- Package quantity
- 6 pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Front plate
- Accessory / separate part category
- Installation accessory
- Range compatibility
- PrismaSeT PrismaSeT P cubicle
- Type of front plate
- Cut-out
- Installed device
- ComPact: fixed NS1600b - control: toggle - vertical installation; ComPact: fixed NS2000...3200 - control: toggle - vertical installation
- Poles description
- 1 x 3P: mounting plate support: NS1600b vertical installation; 1 x 4P: mounting plate support: NS1600b vertical installation; 1 x 3P: mounting plate support: NS2000...3200 vertical installation; 1 x 4P: mounting plate support: NS2000...3200 vertical installation
- Operating position
- Horizontal
- Enclosure/cubicle description
- Cubicle - width 650 mm depth 400 mm; Cubicle - width 650 mm depth 600 mm
- Connection position
- Front connection
- Number of vertical modules [50 mm]
- 8
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Material
- Steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Width
- 500 mm
- Height
- 400 mm
- Product weight
- 1.02 kg
- Quantity per set
- Set of 1
- functional unit
- 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600b fixed toggle vertical 3P 1 front connection on adaptor 14; 650 mm 400 mm PrismaSeT P cubicle ComPact NS1600b fixed toggle vertical 4P 1 front connection on adaptor 14; 650 mm 600 mm PrismaSeT P cubicle ComPact NS2000...3200 fixed toggle vertical 3P 1 front connection on adaptor 16; 650 mm 600 mm PrismaSeT P cubicle ComPact NS2000...3200 fixed toggle vertical 4P 1 front connection on adaptor 16
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 650 mm
- Number of height units
- 8
- Surface finishing
- Powder coating
- Suitable for enclosure building height
- 2000 mm
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481872616
- SAP 1200546738
- Code 82880210
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric processor module M340 - max 1024 discrete + 256 analog I/O - CANOpen BMXP3420302
Schneider Electric
Cable Compartment with door-PrismaSeTG -IP55 27MOD
LVS08347
Schneider Electric
Schneider Electric Universal Mounting Accessory, Harmony XV4/XV6/XVB7 Modular Tower Light, Plastic Side Entry Adapter, Grey XVZ07
Schneider Electric
Schneider Electric cable on reel - free ends - 2 line testers - 100 m TSXCBY1000
Schneider Electric
Schneider Electric Interface plug-in relay, 5 A, 2 CO, lockable test button, 12 V DC RXG21JD
Schneider Electric
Schneider Electric TeSys GV4 - thermal magnetic circuit breaker - 2A 3P - with compression lug GV4P02N6
Schneider Electric

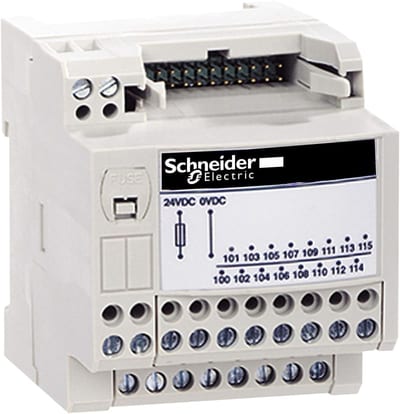

Schneider Electric passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 1M ABE7H20E100
