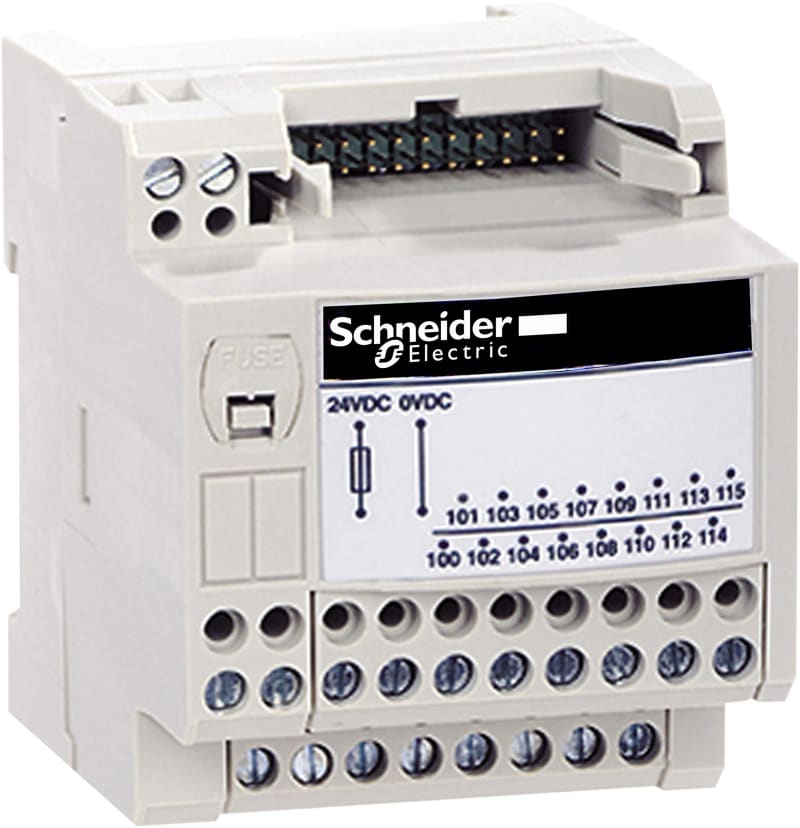

Schneider Electric passive connection sub-base ABE7 - 16 inputs or outputs - Micro/Premium cable 1M ABE7H20E100

Schneider Electric ABE7H20E100 16 In/O,1 term,2 rows,cable 1m.

Manufacturer part number (MPN)

ABE7H20E100

EAN / GTIN

3389110251043

HS code

8544.42

Sales unit

pcs

Package quantity

10 pcs

Range of product

Modicon ABE7

Product or component type

Passive discrete I/O sub-base

Sub-base type

Low cost sub-base

[Us] rated supply voltage

19...30 V conforming to IEC 61131-2

Number of channels

16

Number of terminal per channel

1

Connections - terminals

Screw type terminals, 1 x 0.09...1 x 1.5 mm² (28 AWG...16 AWG) flexible with cable end; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...12 AWG) solid; Screw type terminals, 1 x 0.14...1 x 2.5 mm² (26 AWG...14 AWG) flexible without cable end; Screw type terminals, 2 x 0.09...2 x 0.75 mm² (28 AWG...20 AWG) flexible with cable end; Screw type terminals, 2 x 0.2...2 x 2.5 mm² (24 AWG...14 AWG) solid

supply voltage type

DC

Number of horizontal rows

2

Product compatibility

Modicon TSX Micro PLC; Modicon Premium PLC

Status LED

1 LED (green) power ON; 1 LED (amber) APP1

Short-circuit protection

2 A internal fuse, 5 x 20 mm, fast blow (PLC end)

Fixing mode

By clips (35 mm symmetrical DIN rail); By screws (solid plate with fixing kit)

Maximum supply current

1.8 A

Current per channel

0.5 A

Maximum current per output common

1.8 A

Voltage drop on power supply fuse

0.3 V

[Ui] rated insulation voltage

2000 V terminals/mounting rails

Installation category

II conforming to IEC 60664-1

Tightening torque

0.6 N.m with flat Ø 3.5 mm screwdriver

Product weight

0.33 kg

Product certifications

GL; DNV; UL; CSA; EAC

IP degree of protection

IP2X conforming to IEC 60529

Resistance to incandescent wire

750 °C, extinction time <30 s conforming to IEC 60695-2-11

Shock resistance

15 gn for 11 ms conforming to IEC 60068-2-27

Vibration resistance

2 gn (f= 10…150 Hz) conforming to IEC 60068-2-6

Resistance to electrostatic discharge

4 kV (contact) level 3 conforming to IEC 61000-4-2; 8 kV (air) level 3 conforming to IEC 61000-4-2

Resistance to radiated fields

10 V/m (26000000…1000000000 Hz) conforming to IEC 61000-4-3 level 3

Resistance to fast transients

2 kV level 3 conforming to IEC 61000-4-4

Ambient air temperature for operation

-5…60 °C conforming to IEC 61131-2

Ambient air temperature for storage

-40…80 °C conforming to IEC 61131-2

Pollution degree

2 conforming to IEC 60664-1

Number of Units in Package 1

1

Number of Units in Package 2

10

Country of origin

LV

Warranty (in months)

18

HS Code

8544.42

• EAN 3389110251043
• SAP 1200131681
• Code 81985556
