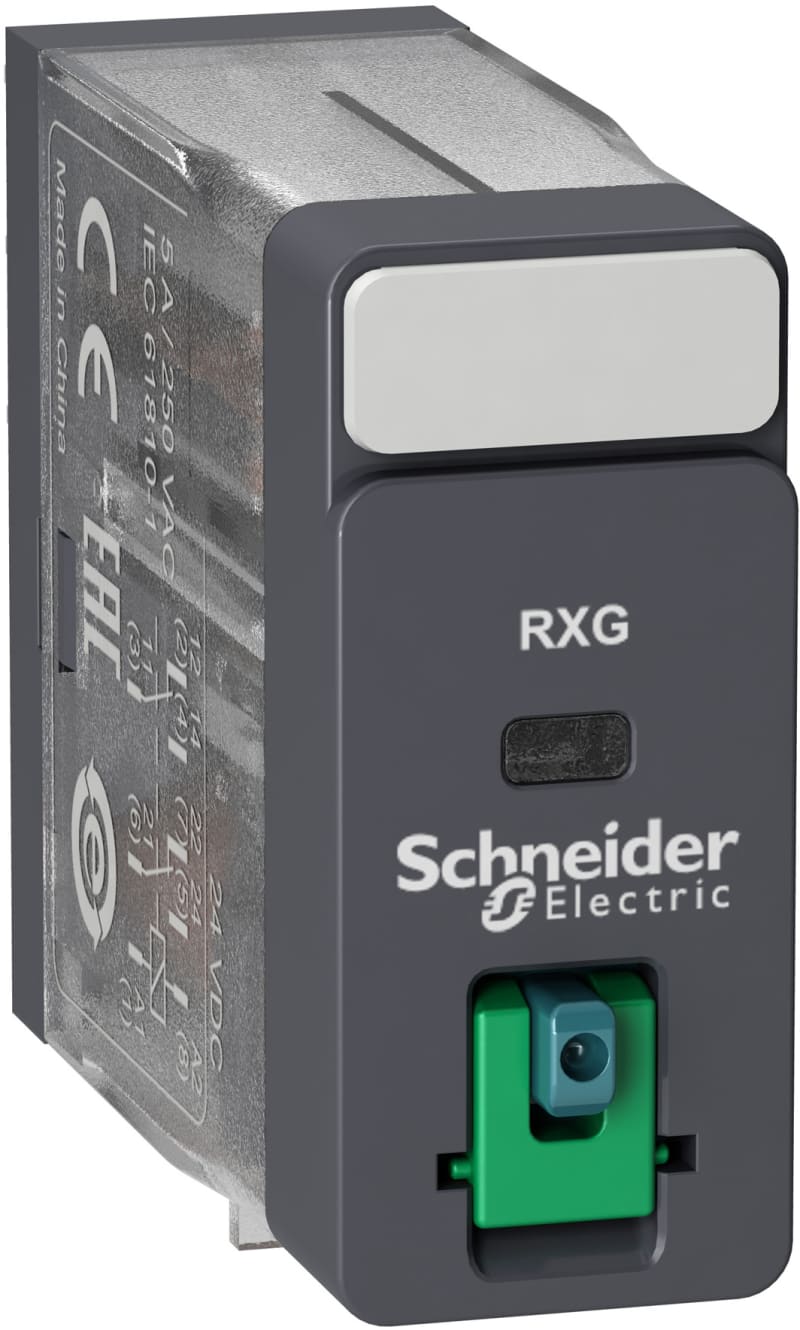

Schneider Electric Interface plug-in relay, 5 A, 2 CO, lockable test button, 12 V DC RXG21JD

Schneider Electric RXG21JD 2CO 5A INTERFACE RELAY LTB-LED 12VDC.

Manufacturer part number (MPN)

RXG21JD EAN / GTIN: 3606480689055 HS code: 8536.90 Sales unit: pcs Package quantity: 10 pcs Voltage: 12 V DC Rated current: 5 A Range of product: Harmony Electromechanical Relays Series name: RXG series Product or component type: Plug-in relay Relay type: Interface relay Contacts type and composition: 2 C/O [Uc] control circuit voltage: 12 V DC [Ithe] conventional enclosed thermal current: 5 A at -40…55 °C Local signalling: Flag status LED: Without Electrical durability: 100000 cycles for NO resistive load at 55 °C; 100000 cycles for NC resistive load at 55 °C [Ui] rated insulation voltage: 250 V conforming to IEC; 300 V conforming to CSA; 300 V conforming to UL Removable legend: With Maximum switching voltage: 250 V AC; 30 V DC Drop-out voltage threshold: >= 0.1 Uc DC [Ie] rated operational current: 5 A at 30 V (DC) conforming to UL; 5 A at 30 V (DC) conforming to IEC; 5 A at 250 V (AC) conforming to UL; 5 A at 250 V (AC) conforming to IEC Load current: 5 A at 250 V AC minimum switching capacity: 50 mW at 10 mA, 5 V DC Maximum switching capacity: 1250 VA Control type: Lockable test button Average resistance: 270 Ohm at 23 °C +/- 10 % Contact resistance: 100 mOhm Insulation resistance: 1000 MOhm at 500 V DC Electrical insulation class: Class F Mechanical durability: 10000000 cycles Safety reliability data: B10d = 100000 Operating rate: <= 1800 cycles/hour under load; <= 18000 cycles/hour no-load Utilisation coefficient: 20 % Operating time: 20 ms Reset time: 20 ms Dielectric strength: 1000 V AC between contacts with micro disconnection; 5000 V AC between coil and contact with reinforced insulation; 3000 V AC between poles with basic insulation; 1300 V AC terminals and case with basic insulation [Uimp] rated impulse withstand voltage: 1200 V AC between contacts with micro disconnection; 6000 V between coil and contact with reinforced insulation; 1500 V between terminals and case with basic insulation; 4000 V between poles with basic insulation Overvoltage category: III Protection category: RT I Pollution degree: 2 Test levels: Level A group mounting Device presentation: Complete product Contacts material: Silver alloy (AgSnO2In2O3) Shape of pin: Flat (faston type) Product weight: 0.02 kg Standards: IEC 61810-1; UL 508; CSA C22.2 No 14 Product certifications: CSA; CE; EAC; UL; DNV Ambient air temperature for storage: -40…85 °C Ambient air temperature for operation: -40…70 °C IP degree of protection: IP40 Relative humidity: 10…85 % Vibration resistance: 3 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)in operation; 5 gn, amplitude = +/- 0.75 mm (f = 10…150 Hz)not in operation Country of origin: CN Warranty (in months): 18

HS Code

8536.90

• EAN 3606480689055
• SAP 1000702641
