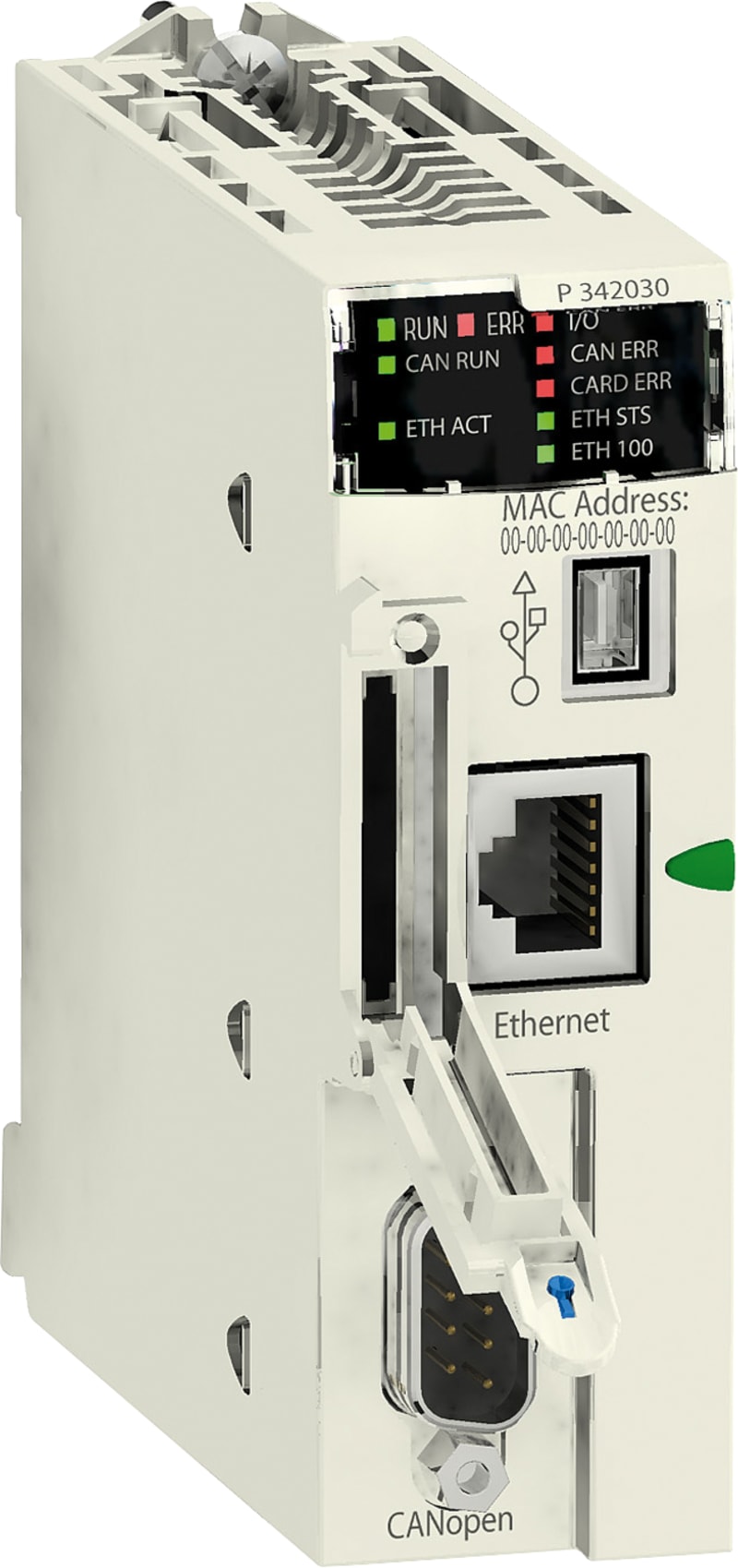

Schneider Electric processor module M340 - max 1024 discrete + 256 analog I/O - CANOpen BMXP3420302

Schneider Electric BMXP3420302 M340 CPU 4R,1024D,256A,Eth,CANopen.

Manufacturer part number (MPN)

BMXP3420302

EAN / GTIN

3595864024455

Sales unit

pcs

Range of product

Modicon M340 automation platform

Product or component type

Processor module

Concept

CANopen; Transparent Ready

Number of racks

4

Local I/O processor capacity (discrete)

1024 I/O

Analogue I/O processor capacity

256 I/O

Number of application specific channel

36

Control channels

Programmable loops

Motion control

Independent axis CANopen

Integrated connection type

USB port at 12 Mbit/s; CANopen master bus SUB-D 9, transmission mode: 2 twisted shielded pairs at 20 kbit/s...1 Mbit/s; Ethernet TCP/IP RJ45, transmission mode: 1 twisted pair at 10/100 Mbit/s

Communication module processor capacity

2 Ethernet communication module; 4 AS-Interface module

embedded communication service

Network management (NMT) CANopen; Process Data Object (PDO) CANopen; Service Data Object (SDO) CANopen; Special functions (SYNC, EMCY, TIME) CANopen; Bandwidth management, Ethernet TCP/IP; Data Editor, Ethernet TCP/IP; Modbus TCP messaging, Ethernet TCP/IP; Rack Viewer, Ethernet TCP/IP; SNMP network administrator, Ethernet TCP/IP

Port Ethernet

10BASE-T/100BASE-TX

Transmission rate

1 Mbit/s 0…20 m 0…0.6 m; 125 kbit/s 0…500 m 0…10 m; 20 kbit/s 0…2500 m 0…300 m; 250 kbit/s 0…250 m 0…10 m; 50 kbit/s 0…1000 m 0…120 m; 500 kbit/s 0…100 m 0…10 m; 800 kbit/s 0…40 m 0…6 m

Bus type

CANopen M20 DS 301 V4.02 devices linked by daisy-chaining or tap junctions CSMA/CA; CANopen M20 DS 303-2 devices linked by daisy-chaining or tap junctions CSMA/CA; CANopen M20 DS 405 devices linked by daisy-chaining or tap junctions CSMA/CA

Number of server device(s)

63 CANopen

Number of devices per segment

0…16 for <205 m (CANopen); 0…32 for <185 m (CANopen); 0…64 for <160 m (CANopen)

Memory description

Supplied memory card (BMXRMS008MP) backup of programs, constants, symbols and data; Internal RAM 4096 kB; Internal RAM 256 kB data; Internal RAM 3584 kB program constants and symbols; Supplied memory card (BMXRMS008MP) activation of standard web server, class B10

Maximum size of object areas

32634 %Mi located internal bits; 32464 %MWi internal words; 32760 %KWi constant words

Default size of object areas

1024 %MWi internal words located internal data; 256 %KWi constant words located internal data; 512 %Mi located internal bits

Application structure

1 cyclic/periodic master task; 1 periodic fast task; No auxiliary task; 64 event tasks

Execution time per instruction

0.12 µs Boolean; 0.17 µs double-length words; 0.25 µs single-length words; 1.16 µs floating points

Number of instructions per ms

6.4 Kinst/ms 65 % Boolean + 35 % fixed arithmetic; 8.1 Kinst/ms 100 % Boolean

System overhead

0.13 ms for fast task; 0.7 ms for master task

Current consumption

135 mA at 24 V DC

Supply

Internal power supply via rack

Marking

CE; UL; CSA; RCM; EAC; UKCA; China RoHS; WEEE; IEC

Status LED

1 LED (green) activity on Ethernet network (ETH ACT); 1 LED (green) integrated machine/installation bus operational (CAN RUN); 1 LED (green) processor running (RUN); 1 LED (green) status of Ethernet network (ETH STS); 1 LED (green) data rate (ETH 100); 1 LED (red) I/O module fault (I/O); 1 LED (red) integrated machine/installation bus fault (CAN ERR); 1 LED (red) memory card fault (CARD ERR); 1 LED (red) processor or system fault (ERR)

Product weight

0.215 kg

Ambient air temperature for operation

0…60 °C

Relative humidity

5…95 % without condensation

IP degree of protection

IP20

Protective treatment

TC

Directives

2014/35/EU - low voltage directive; 2014/30/EU - electromagnetic compatibility; 2012/19/EU - WEEE directive

Product certifications

CE; UL; CSA; RCM; EAC; UKCA; Merchant Navy; CCSAus HazLoc Class I Division 2 Group A; CCSAus HazLoc Class I Division 2 Group B; CCSAus HazLoc Class I Division 2 Group C; CCSAus HazLoc Class I Division 2 Group D

Standards

IEC 61131-2; IEC 61010-2-201; UL 61010-2-201; CSA C22.2 No 61010-2-201; IACS E10; EN/IEC 61000-6-5, interface type 1 and type 2; EN/IEC 61850-3, location G

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.500 cm

Package 1 Width

11.000 cm

Package 1 Length

11.700 cm

Package 1 Weight

249.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

15

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.109 kg

Country of origin

FR

Warranty (in months)

18

Width

35 mm

Model

Modular

Height

100 mm

Depth

160 mm

Number of digital inputs

1024

Number of digital outputs

1024

Number of analogue inputs

256

Number of analogue outputs

256

Voltage type (supply voltage)

DC

Type of memory

NVRAM

Memory size

4096 kByte

Processing time (1K, binary operation)

12 ms

Max. number of addressable analogue I/O-ports

256

Max. number of addressable digital I/O-ports

1024

Number of HW-interfaces industrial Ethernet

2

Number of HW-interfaces RS-232

1

Number of HW-interfaces RS-485

1

Number of HW-interfaces USB

1

Number of HW-interfaces other

4

Explosion safety category for gas

None

Explosion safety category for dust

None

Performance level according to EN ISO 13849-1

None

Long-Term Evolution (LTE)

No

SIL according to IEC 61508

None

HS Code

8537.10
