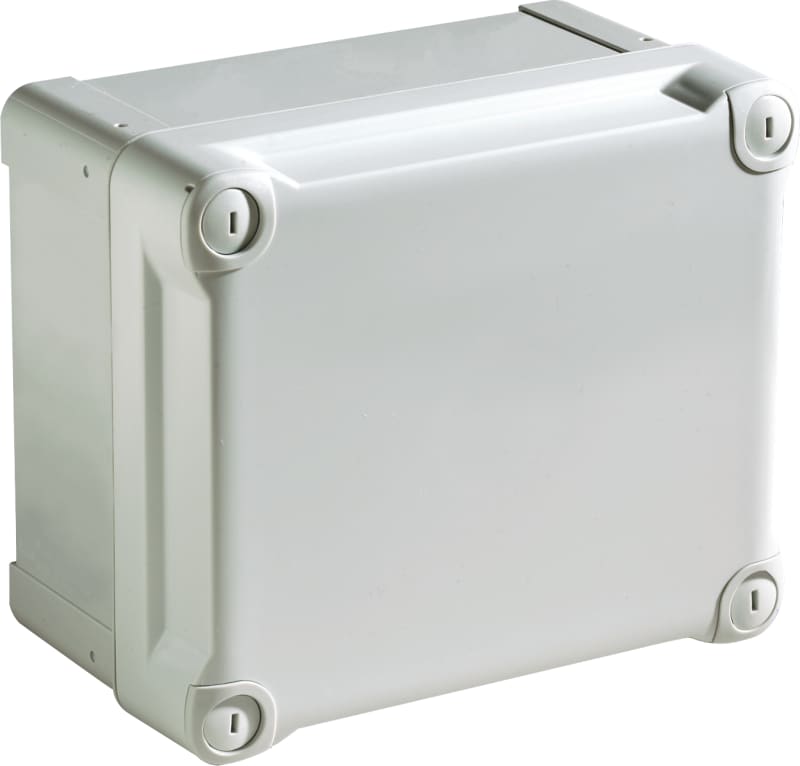

Schneider Electric ABS industrial box, PanelSeT TBS, 116X94X116MM, int. 65X85X105MM, high plain cover, IP66, IK07, RAL 7035 NSYTBS1179H
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYTBS1179H 85022 Abs Box 65X107X85.
Technical Specifications
- Manufacturer part number (MPN)
- NSYTBS1179H
- EAN / GTIN
- 3606480165238
- Sales unit
- pcs
- Package quantity
- 3 pcs
- Dimensions
- 65×107×85
- Range
- PanelSeT
- Device application
- Multi-purpose
- Category
- Industrial box
- Height
- 116 mm
- Width
- 116 mm
- Depth
- 94 mm
- Internal height
- 105 mm
- Internal width
- 65 mm
- Internal depth
- 85 mm
- Enclosure mounting
- Wall mounted
- Device composition
- 1 body; 1 cover; 4 cover screw
- Quantity per set
- Set of 3
- Body type
- One piece moulded
- Type of front cover
- High plain cover
- Cover fixing
- Plastic screws
- Lock type
- Captive screw flat outside sealed area
- Removable parts
- Cover by captive screws
- Material
- ABS with 45% of post-industrial recycled content
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- TÜV
- Electrical insulation class
- Class II
- IP degree of protection
- IP66 conforming to NEMA 4.4X
- IK degree of protection
- IK07 conforming to IEC 62262
- Glow wire resistance
- 650 °C conforming to IEC 60695-2-11
- Ambient air temperature for storage
- -15…40 °C
- Operating temperature
- -25…60 °C
- Product weight
- 0.146 kg
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 3
- Number of Units in Package 3
- 63
- Warranty (in months)
- 18
- RAL-number
- 7035
- With mounting plate
- No
- Impact strength
- IK07
- Degree of protection (IP)
- IP66
- Country of origin
- Hungary
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480165238
- SAP 1000090232
- Code 8893558
