ISFL250-630 1 CT400/5-KL 1-5VA
Pricing
Request a quote
We reply within 24 hours
Product Description

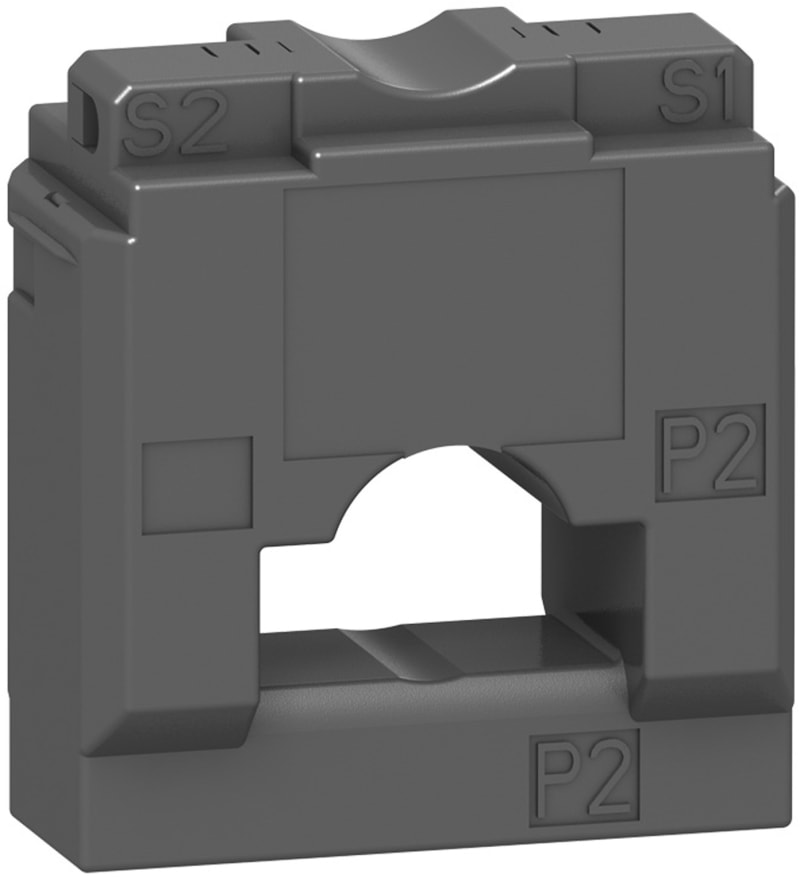

Schneider Electric LV480887 ISFL250-630 1 CT400/5-kl 1-5VA.
Technical Specifications
- Manufacturer part number (MPN)
- LV480887
- EAN / GTIN
- 3606480341458
- Sales unit
- pcs
- Package quantity
- 40 pcs
- Range of product
- ISFL1250; ISFL250...630
- Range
- FuPacT
- Product or component type
- Current transformer
- Device application
- Power supply
- Range compatibility
- FuPacT FuPacT ISFL ISFL250 fuse-switch disconnector; FuPacT FuPacT ISFL ISFL400; FuPacT FuPacT ISFL ISFL630; FuPacT FuPacT ISFL ISFL1250
- Current transformer ratio
- 400/5 A
- Power consumption in VA
- 5 VA
- Accessory / separate part category
- Measurement accessory
- Current transformer type
- Measurement class 1
- Maximum safety factor
- 5
- [Ue] rated operational voltage
- 800 V AC 50/60 Hz
- IP degree of protection
- IP20
- Standards
- IEC 60044-1; VDE 0414; BS 7626
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…80 °C
- Height
- 78 mm
- Width
- 60 mm
- Depth
- 30 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 40
- Warranty (in months)
- 18
- Power consumption
- 5 W
- Model
- Single-phase current converter
- Rated primary current
- 400 A
- Rated secondary current
- 5 A
- Rated secondary apparent power
- 5 VA
- Accuracy class
- 1
- Overcurrent limiting factor
- FS 5
- Calibrated
- Yes
- With contact protection
- Yes
- Snap mounting
- Yes
- With copper rail
- No
- Number of primary inputs
- 1
- Secondary connection
- Plug-in connection
- Country of origin
- Germany
Standards & Compliance
- HS Code
- 8504.31
Cross References
- EAN 3606480341458
- SAP 1200502863
- Code 82627676
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric basic analog input kit STB - 0..10 V - 2 I - 10 bits STBAVI1255K
Schneider Electric
Schneider Electric APC Smart-UPS X External Battery Pack, Rack/Tower 2U, 120VDC, W/rail kit SMX120RMBP2U
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS1600H, 70KA at 415VAC, 1600A, 3P, fixed, manually operated, without control unit C160H3FM
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS800L, 150KA at 415VAC, 800A, 4P, fixed, manually operated, without control unit C080L4FM
Schneider Electric
Passiva filter 150A 400V 50Hz (VW3A46112)
Schneider Electric
Schneider Electric APC Replacement Battery Cartridge #23 with 2 Year Warranty RBC23
Schneider Electric
Schneider Electric transfer switch, TransferPacT automatic, 100A, 230V, 2P, rotary, frame 100A TA10D2S1003TPE
Schneider Electric
Alarm contact SDX for NSXm Vigi
LV426900
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LV480887?
- LV480887 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LV480887.
- What is the HS code for LV480887?
- The customs tariff (HS) code for LV480887 is 8504.31.
- Who manufactures LV480887?
- LV480887 is a Schneider Electric product in the Electrical Components range.
- Is a datasheet available for LV480887?
- Yes — the LV480887 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LV480887?
- The minimum order quantity is 1.
- Is LV480887 available?
- Yes — LV480887 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
