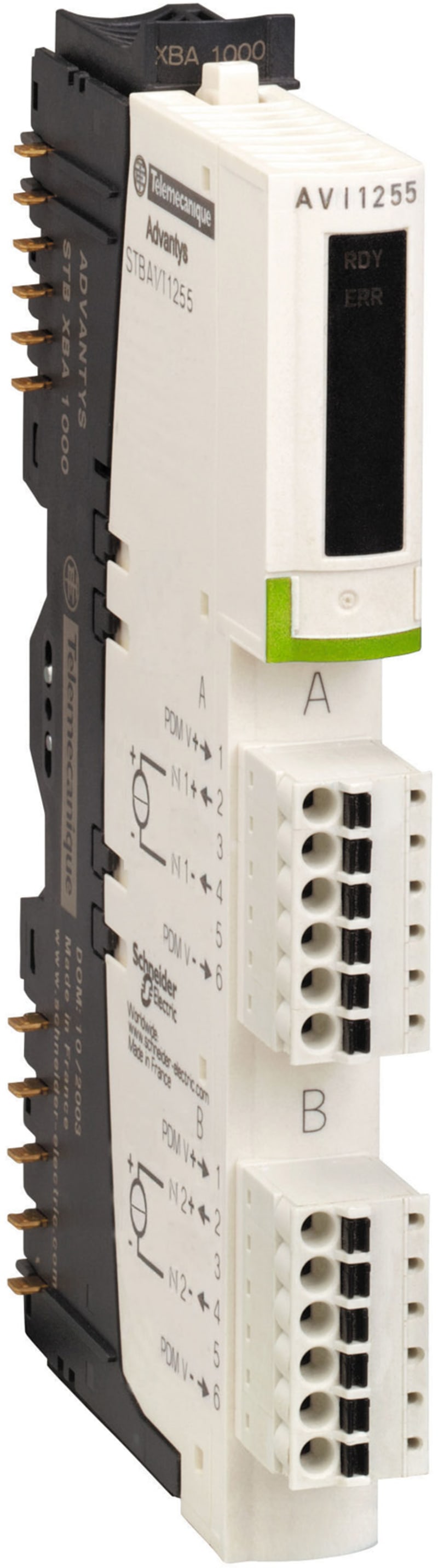

Schneider Electric basic analog input kit STB - 0..10 V - 2 I - 10 bits STBAVI1255K

Schneider Electric STBAVI1255K STB kit 2 in analog 0-10V,10bit,.

Manufacturer part number (MPN)

STBAVI1255K

EAN / GTIN

3595863948912

Sales unit

pcs

Output signal

0–10 V

Range of product

Modicon STB distributed I/O solution

Product or component type

Basic analog input kit

Kit composition

STBAVI1255 module; STBXTS2100, 6-terminal spring clamp connector; STBXTS1100, 6-terminal screw type connector; STBXBA1000 base

Product compatibility

Mounting base STBXBA1000; Power distribution module STBPDT3100/3105

Analogue input number

2

Analogue output number

0

Update time

10 ms

Hot swapping fallback

No for basic NIMs

Height

18.4 mm

Width

128.3 mm

Depth

70 mm

Product weight

0.116 kg

Marking

CE

Relative humidity

95 % at 60 °C without condensation

Number of Units in Package 1

1

Number of Units in Package 2

28

Country of origin

ID

Warranty (in months)

18

Certified for UL hazardous location division 1

No

Certified for UL hazardous location division 2

No

Certified for UL hazardous location group A (acetylene)

No

Certified for UL hazardous location group B (hydrogen)

No

Certified for UL hazardous location group C (ethylene)

No

Certified for UL hazardous location group D (propane)

No

Certified for UL hazardous location group E (metal dusts)

No

Certified for UL hazardous location class I

No

Certified for UL hazardous location class II

No

Certified for UL hazardous location class III

No

Supporting protocol for EtherCAT

No

Supply voltage DC

0–10 V

Voltage type (supply voltage)

AC/DC

Input, current

Yes

Input, voltage

No

Input, resistor

No

Input, resistance thermometer

No

Input, thermocouple

No

Input signal, configurable

Yes

Resolution of the analogue inputs

10 Bit

Output, current

No

Output, voltage

No

Output signal configurable

No

Resolution of the analogue outputs

10 Bit

Number of analogue inputs

2

Analogue inputs configurable

Yes

Analogue outputs configurable

No

Supporting protocol for TCP/IP

No

Supporting protocol for PROFIBUS

No

Supporting protocol for CAN

No

Supporting protocol for INTERBUS

No

Supporting protocol for ASI

No

Supporting protocol for KNX

No

Supporting protocol for Modbus

No

Supporting protocol for Data-Highway

No

Supporting protocol for DeviceNet

No

Supporting protocol for SUCONET

No

Supporting protocol for LON

No

Supporting protocol for PROFINET IO

No

Supporting protocol for PROFINET CBA

No

Supporting protocol for SERCOS

No

Supporting protocol for Foundation Fieldbus

No

Supporting protocol for EtherNet/IP

No

Supporting protocol for AS-Interface Safety at Work

No

Supporting protocol for DeviceNet Safety

No

Supporting protocol for INTERBUS-Safety

No

Supporting protocol for PROFIsafe

No

Supporting protocol for SafetyBUS p

No

Supporting protocol for other bus systems

No

Radio standard Bluetooth

No

Radio standard WLAN 802.11

No

Radio standard GPRS

No

Radio standard GSM

No

Mobile communications standard 3G (UMTS)

No

IO link master

No

System accessory

Yes

Degree of protection (IP)

IP20

Type of electric connection

Screw connection

Fieldbus connection over separate bus coupler possible

Yes

Suitable for rail mounting

Yes

Wall mounting/direct mounting

No

Front built-in possible

No

Rack-assembly possible

Yes

Suitable for safety functions

No

SIL according to IEC 61508

None

Performance level according to EN ISO 13849-1

None

Appendant operation agent (Ex ia)

No

Explosion safety category for gas

ATEX gas-ex-protection, Cat. 3G

HS Code

8538.90

• EAN 3595863948912
• SAP 1000085733
• Code 8857811
