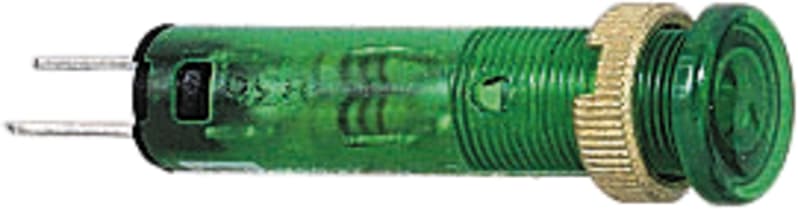

LED lamp 8mm 12 V Green
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric XVLA223 LED lamp 8mm 12 V Green.
Technical Specifications
- Manufacturer part number (MPN)
- XVLA223
- EAN / GTIN
- 3389110651300
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Voltage
- 12 V
- Range of product
- Harmony XVL
- Product or component type
- LED pilot light with integral lens cap
- Component name
- XVL
- Mounting diameter
- 8 mm
- Light source
- Covered LED
- Light block colour
- Green
- Protection type
- Integral ballast resistor; Built-in by diode
- [Us] rated supply voltage
- 12 V
- IP degree of protection
- IP65 (with seal XVLZ911) conforming to IEC 60529; IP65 (with seal XVLZ911) conforming to NF C 20-010; IP40 conforming to IEC 60529; IP40 conforming to NF C 20-010
- Sale per indivisible quantity
- 10
- Supply circuit type
- DC
- Connections - terminals
- Tag for Faston connectors: 2.8 x 0.5 mm; Tag for soldering connectors
- Current consumption
- 18 mA
- [Ui] rated insulation voltage
- 50 V conforming to IEC 60947-1
- Bulb lifespan
- 100000 h
- Nominal voltage limit
- 0.8...1.1 Un
- Terminals description ISO n°1
- (X1-X2)PL
- Height
- 10 mm
- Width
- 10 mm
- Depth
- 36 mm
- Product weight
- 0.003 kg
- Product certifications
- UL; CSA
- Protective treatment
- TC
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Overvoltage category
- Class 3 conforming to IEC 60536; Class 3 conforming to NF C 20-030
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 100
- Country of origin
- ES
- Warranty (in months)
- 18
- Hole diameter
- 8 mm
- Voltage type
- AC/DC
- Colour lens
- Green
- Number of indicator lights
- 1
- Colour front ring
- Black
- Type of electric connection
- Flat plug-in connection
- Degree of protection (IP)
- IP40
- With light source
- Yes
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of lamp socket
- LED
- Type of lens
- Flat
Standards & Compliance
- HS Code
- 8531.80
Cross References
- EAN 3389110651300
- SAP 1000006037
- Code 855594
