DOUBLE PUSH BUTTON for LIGHT S+r KN UMRK G (ZB4BW7L3740)

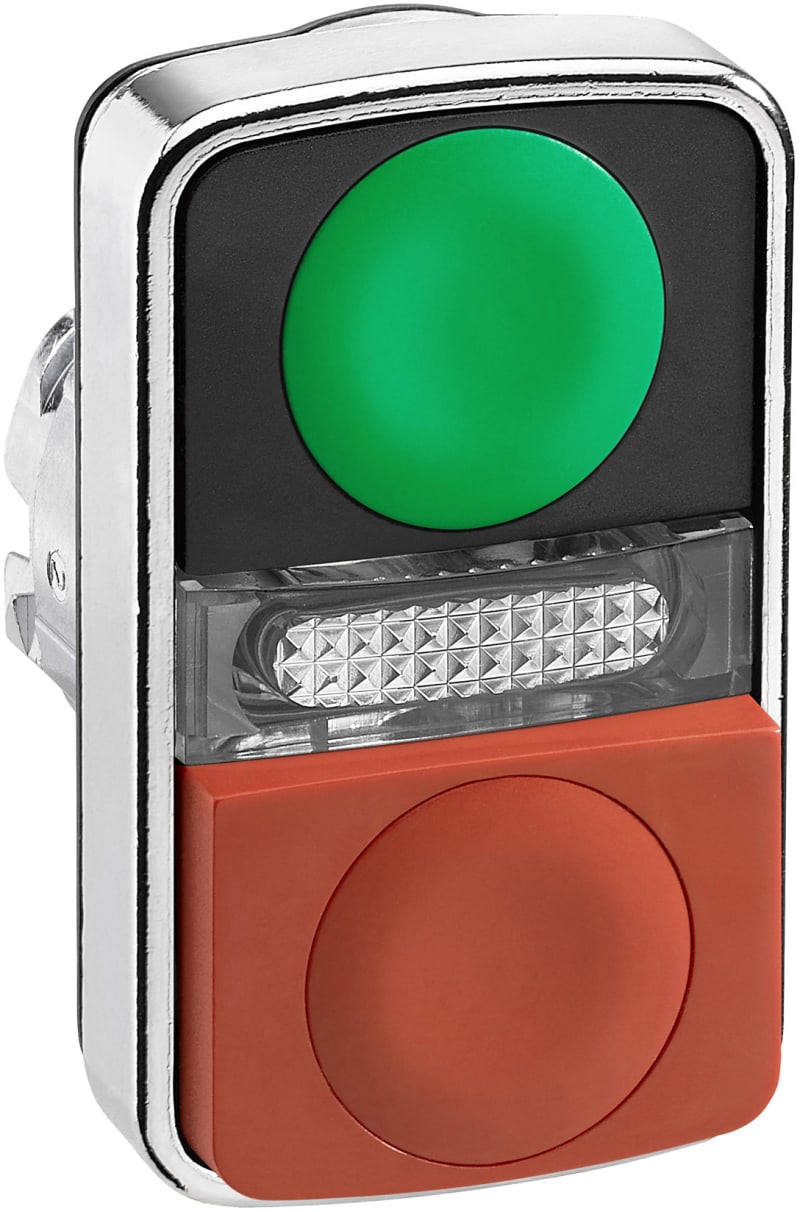

Schneider Electric ZB4BW7L3740 Double push-button head in metal for LED with plan green and raised red push surface.

Manufacturer part number (MPN)

ZB4BW7L3740

EAN / GTIN

3389119043762

Sales unit

pcs

Package quantity

5 pcs

Range of product

Harmony XB4

Product or component type

Head for illuminated double-headed push-button

Product compatibility

Integral LED

Device short name

ZB4

Bezel material

Chromium plated metal

Head type

Standard

Mounting diameter

22 mm

Sale per indivisible quantity

1

Shape of signaling unit head

Rectangular

Type of operator

spring return

Operator profile

1 flush - 1 projecting push-buttons - 1 central pilot light

Operators description

Green unmarked - red unmarked

CAD overall width

30 mm

CAD overall height

50 mm

CAD overall depth

30 mm

Product weight

0.056 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Colour of marking

White marking when green, red or black caps; Black marking when white caps

Mechanical durability

1000000 cycles

Electrical composition code

M1 for <6 contacts using single blocks in front mounting with integral LED; M2 for <6 contacts using single and double blocks in front mounting with integral LED; M6 for <2 contacts using single blocks in front mounting with integral LED and transformer; M10 for <2 contacts using single blocks in front mounting with integral LED

Device presentation

Basic sub-assemblies

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Electrical shock protection class

Class I conforming to IEC 61140

IP degree of protection

IP66 conforming to IEC 60529; IP69K; IP69 conforming to IEC 60529

Enclosure Type

UL type 4X/13

IK degree of protection

IK06 conforming to IEC 50102

Standards

IEC 60947-5-4; IEC 60947-1; JIS C8201-5-1; UL 508; IEC 60947-5-5; IEC 60947-5-1; CSA C22.2 No 14; JIS C8201-1

Product certifications

CSA; LROS (Lloyds register of shipping); BV; UL listed; DNV

Vibration resistance

5 gn (f= 2…500 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27

Number of Units in Package 1

1

Number of Units in Package 2

5

Number of Units in Package 3

100

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Colour button

Red/green

Suitable for lighting

Yes

Number of command positions

2

Spring-return

Yes

Labelled

No

Type of button

High

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

With protective cover

No

Material front ring

Metal

With front ring

Yes

Construction type lens

Rectangular

Switching function latching

No

HS Code

8538.90
