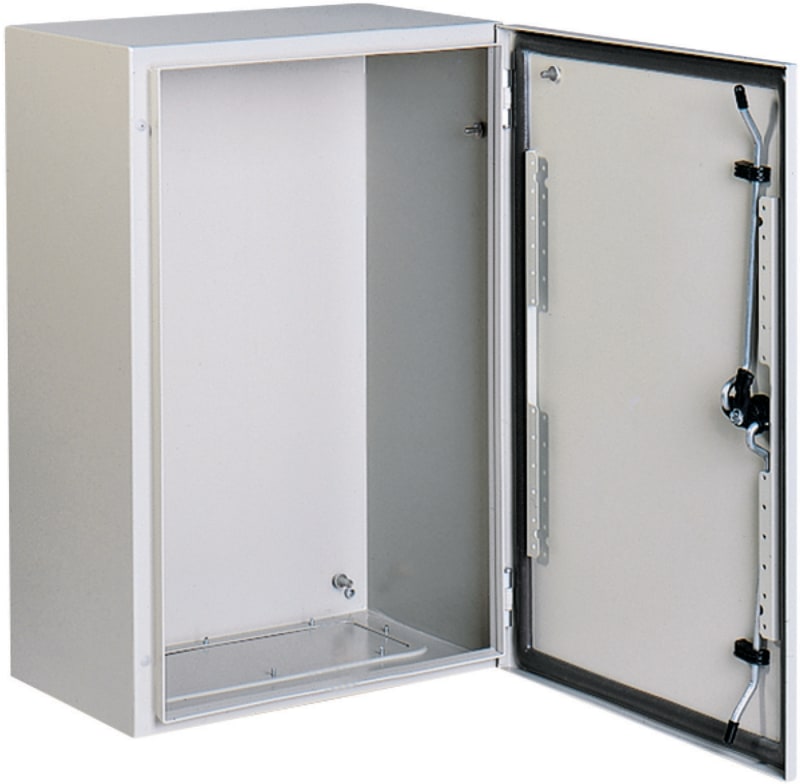

Schneider Electric PanelSeT S3DEX (ATEX certified) H600XW600XD250 .IP66 IK10 RAL7035. NSYS3DEX6625
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3DEX6625 S3D Eex 60X60X25.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3DEX6625
- EAN / GTIN
- 3606480158612
- Sales unit
- pcs
- Dimensions
- 60×60×25
- Range
- PanelSeT
- Product name
- PanelSeT S3DEX
- Application
- ATEX certified application
- Category
- Compact enclosure
- Enclosure nominal height
- 600 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 250 mm
- Door type
- Plain
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Installation accessory type
- Wall-mounting
- Product destination
- For potentially explosive atmosphere
- Device composition
- 1 door; 1 lock; body with clamped blind nut
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges
- Material
- Steel
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- EN 60079-0:2012; EN 60079-7:2007; EN 60079-31:2009
- Marking
- II 2 GD Ex e IIC Gb Ex tb IIIC Db according to the ATEX directive 94/9/EC
- Product weight
- 15.5 kg
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK10 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529 (enclosures with single door)
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 18
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 600 mm
- Depth
- 250 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- Yes
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Impact strength
- IK10
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- No
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- Yes
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
- Max. permitted load of the door(s) according to IEC 62208
- 50 N
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480158612
- SAP 1000089670
- Code 8582023
Product Documentation
More from Schneider Electric
Schneider Electric
ISFL250-630 1 CT400/5-KL 1-5VA
LV480887
Schneider Electric
Schneider Electric basic analog input kit STB - 0..10 V - 2 I - 10 bits STBAVI1255K
Schneider Electric
Schneider Electric APC Smart-UPS X External Battery Pack, Rack/Tower 2U, 120VDC, W/rail kit SMX120RMBP2U
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS1600H, 70KA at 415VAC, 1600A, 3P, fixed, manually operated, without control unit C160H3FM
Schneider Electric
Schneider Electric Circuit breaker frame, ComPacT NS800L, 150KA at 415VAC, 800A, 4P, fixed, manually operated, without control unit C080L4FM
Schneider Electric
Passiva filter 150A 400V 50Hz (VW3A46112)
Schneider Electric
Schneider Electric APC Replacement Battery Cartridge #23 with 2 Year Warranty RBC23
Schneider Electric
Schneider Electric transfer switch, TransferPacT automatic, 100A, 230V, 2P, rotary, frame 100A TA10D2S1003TPE
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy NSYS3DEX6625?
- NSYS3DEX6625 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is NSYS3DEX6625.
- What is the HS code for NSYS3DEX6625?
- The customs tariff (HS) code for NSYS3DEX6625 is 9403.20.
- Who manufactures NSYS3DEX6625?
- NSYS3DEX6625 is a Schneider Electric product in the Enclosures range.
- Is a datasheet available for NSYS3DEX6625?
- Yes — the NSYS3DEX6625 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for NSYS3DEX6625?
- The minimum order quantity is 1.
- Is NSYS3DEX6625 available?
- Yes — NSYS3DEX6625 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
