WALL-Mount Cabinet WITH WINDOW. 4X3X1,5
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3D4315T Wall-mount cabinet With Window. 4X3X1,5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3D4315T
- EAN / GTIN
- 3606480159619
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3D
- Application
- Multi-purpose
- Category
- Compact enclosure
- Enclosure nominal height
- 400 mm
- Enclosure nominal width
- 300 mm
- Enclosure nominal depth
- 150 mm
- Door type
- Glazed
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Device composition
- 1 body; 1 door; 1 lock; 1 cable gland plate
- body type
- Gutter-shaped front rail double sheet thickness; Single piece body
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 mm double-bar lock
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel; Door: steel and security glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208; UL; CUL
- Product certifications
- BV; DNV; UL; cUL; GL
- Product weight
- 4.94 kg
- Electromagnetic compatibility
- Electromagnetic field immunity test
- NEMA degree of protection
- NEMA 4X/13
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.000 cm
- Package 1 Width
- 31.000 cm
- Package 1 Length
- 42.000 cm
- Package 1 Weight
- 4.940 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 28
- Package 2 Height
- 98.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 149.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 300 mm
- Height
- 400 mm
- Depth
- 150 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 250 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480159619
- SAP 1000089586
- Code 8914816
Product Documentation
More from Schneider Electric
Schneider Electric
End Piece for TIR+ ES200/60 Trunking, White
5427245
Schneider Electric
Schneider Electric Complete pilot light, Harmony XB6, rectangular green, plastic, 16mm, integral LED, 12...24V XB6DV3BB
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PrismaSeT HD, decarbonized steel, 2000X700X600MM, IP55 NSYSFPN20760G
Schneider Electric
Schneider Electric PC box IP66 IK08 RAL7035 INT.H275W225D120 EXT.H291W241D128 Transparent cover H20 NSYTBP292412T
Schneider Electric
Schneider Electric Single contact block with body fixing collar, Harmony XB4, metal, screw clamp terminal, 1NO+2NC ZB4BZ141
Schneider Electric
Schneider Electric Power plug-in relay, 15 A, 4 CO, with LED, 110 V DC RPM42FD
Schneider Electric

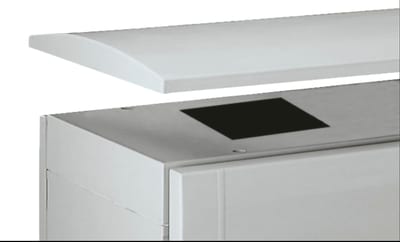

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 750X750X320 IP44 NSYPLAZT773G
Schneider Electric

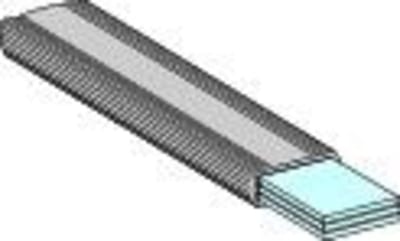

Schneider Electric Insulated flexible bar, PrismaSeT P and G, 200 A, busbar size 20 x 2mm, length 1800mm, set of 1 LVS04742
