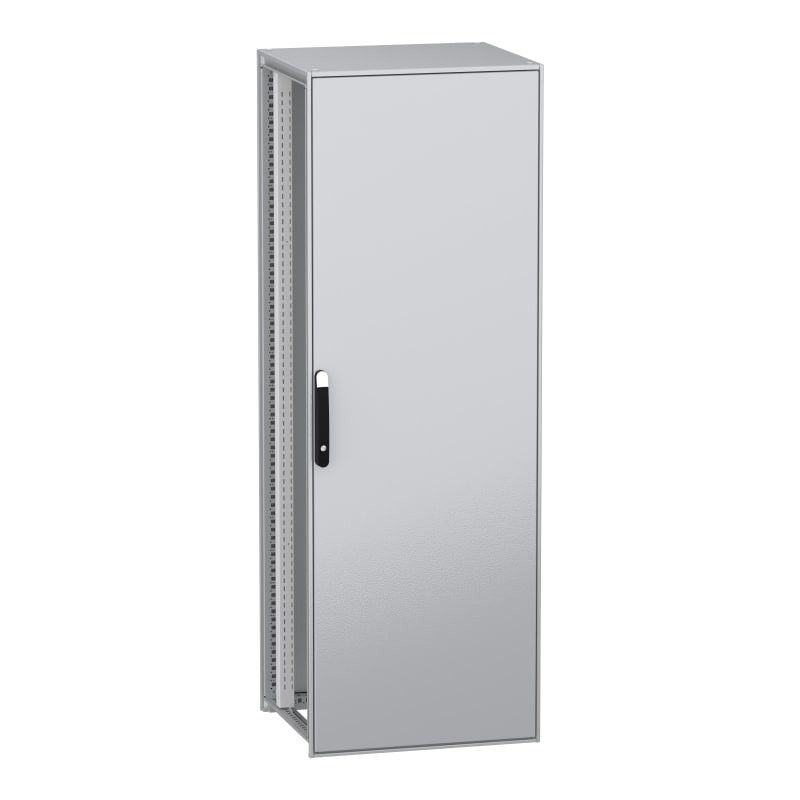

Schneider Electric Floor standing modular electrical enclosure, PrismaSeT HD, decarbonized steel, 2000X700X600MM, IP55 NSYSFPN20760G
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFPN20760G Floor-standing cabinet for electrical distribution, PrismaSeT HD, decarbonised steel, 2000x700x600mm, IP55.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFPN20760G
- EAN / GTIN
- 3606486446027
- Sales unit
- pcs
- Colour
- RAL 7035
- Dimensions
- 2000×700×600
- Range
- PrismaSeT
- Extended range
- PrismaSeT HD
- Application
- Low voltage electrical distribution
- Product or component type
- Suitable enclosure
- Enclosure nominal height
- 2000 mm
- Enclosure nominal width
- 700 mm
- Enclosure nominal depth
- 600 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 structure; 1 door; 1 locking system with handle: door; 1 rear panel; 1 roof; 2 adaptor upright: door; 2 intermediate upright
- Structure type
- Vertical uprights joined with top and bottom frames; Formed from a single section; Perforated structure with a pitch of 25 mm; Panels and doors built into the structure
- Door opening side
- Reversible (120 °)
- Door type
- Plain front
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Without gland plate
- Lock type
- 4 points lock, handle with 5 mm double bar insert front door
- Number of doors
- Front: 1 door(s)
- Accessibility for operation
- Sides of enclosure; Rear; Front
- Removable parts
- Door by screws hinge; Rear panel by screws; Roof by screws; Mounting plate bracket by screws; Sliding rail by screws; Adaptor upright by screws
- Material
- Frame: galvanised steel; Uprights: galvanised steel; Door: sheet steel; Panels: sheet steel; Hinge: zamak; Handle: polyamide 6 with 30 % fibre glass
- Surface finish
- Epoxy-polyester powder
- Product weight
- 82.4 kg
- Standards
- IEC 62208; IEC 61439-1; IEC 61439-2
- IP degree of protection
- IP55 conforming to IEC 60529
- IK degree of protection
- IK10 conforming to IEC 62262
- Environmental characteristic
- Harsh environment
- Number of Units in Package 1
- 1
- Warranty (in months)
- 18
- Width
- 700 mm
- Height
- 2000 mm
- Depth
- 600 mm
- RAL-number
- 7035
- With mounting plate
- No
- Number of locks
- 1
- Suitable for wall mounting
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- Yes
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- With ventilation door
- No
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- Yes
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- Yes
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- Yes
- Country of origin
- France
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606486446027
- SAP 1200697955
- Code 83799751
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric PC box IP66 IK08 RAL7035 INT.H275W225D120 EXT.H291W241D128 Transparent cover H20 NSYTBP292412T
Schneider Electric
Schneider Electric Single contact block with body fixing collar, Harmony XB4, metal, screw clamp terminal, 1NO+2NC ZB4BZ141
Schneider Electric
Schneider Electric Power plug-in relay, 15 A, 4 CO, with LED, 110 V DC RPM42FD
Schneider Electric
Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 750X750X320 IP44 NSYPLAZT773G
Schneider Electric
Schneider Electric Insulated flexible bar, PrismaSeT P and G, 200 A, busbar size 20 x 2mm, length 1800mm, set of 1 LVS04742
Schneider Electric

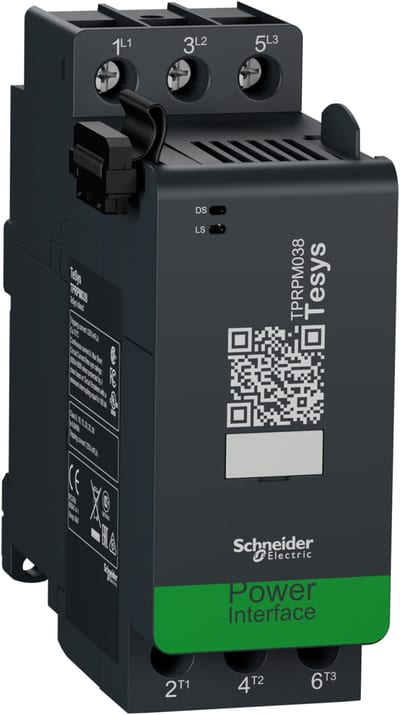

Schneider Electric Power interface module, TeSys island, 40A AC-1, 38A AC-3, 18.5kW / 20hp TPRPM038
Schneider Electric

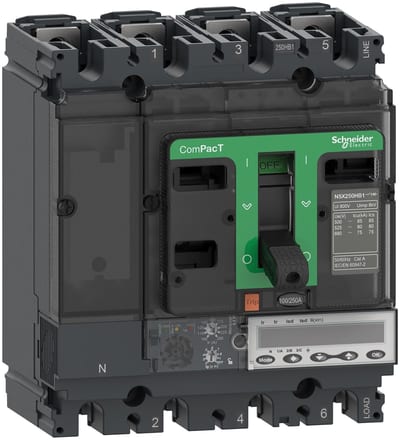

Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 4 poles, MicroLogic 6.2E trip unit 160A C25V46E160
Schneider Electric

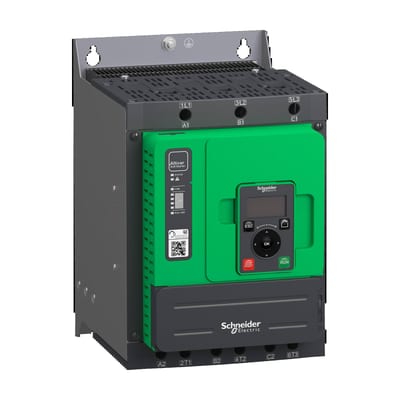

Schneider Electric Soft starter, Altistart 480, 62A, 208 to 690V AC, control supply 110 to 230V AC ATS480D62Y
