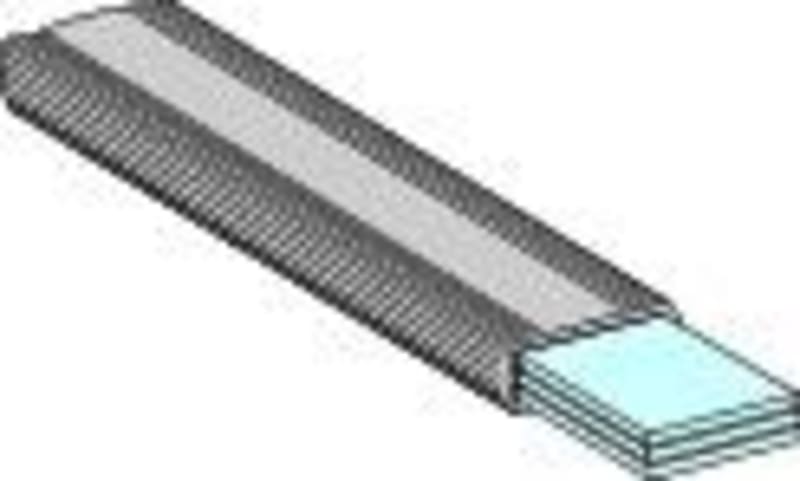

Schneider Electric Insulated flexible bar, PrismaSeT P and G, 200 A, busbar size 20 x 2mm, length 1800mm, set of 1 LVS04742
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04742 Flexisbel rail insulated 200A 20X2mm-length 1800mm-PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04742
- EAN / GTIN
- 3606481868237
- Sales unit
- pcs
- Rated current
- 200 A
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Insulated flexible bar
- product name
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure; PrismaSeT Prisma iPM L enclosure; PrismaSeT Prisma iPM M enclosure
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- installation description
- Cubicle; Floor-standing enclosure; Wall-mounted enclosure
- Installed device
- ComPact: NSX100 + INS100; ComPact: INS100...160; ComPact: INV100; ComPact: INV160; EasyPact: CVS100...160
- [Ie] rated operational current
- 200 A
- Busbar cross section
- 20 x 2 mm
- Length
- 1800 mm
- Product weight
- 1.38 kg
- Quantity per set
- Set of 1
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 130
- Warranty (in months)
- 18
- Width
- 20 mm
- Height
- 2 mm
- Flexible
- Yes
- Rated current In
- 200 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606481868237
- SAP 1200547140
- Code 82879136
