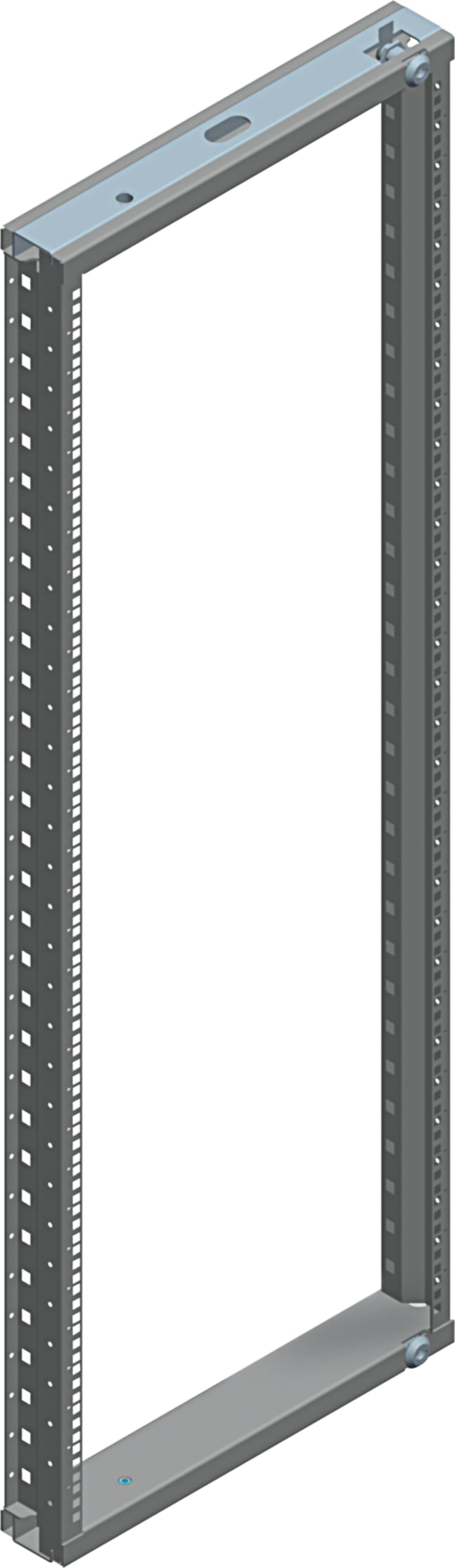

Schneider Electric PanelSeT SF/SM 19" swing rack - 1800X600 mm - 36 modules NSYRSW636
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYRSW636 Spacial SF/SM 19" - Swing frame - 1800x600 mm - 36 modules.
Technical Specifications
- Manufacturer part number (MPN)
- NSYRSW636
- EAN / GTIN
- 3606480067242
- Sales unit
- pcs
- Rack units
- 36U
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- 19" rack
- Application
- Electronic application
- For enclosure nominal dimensions
- -
- Rack type
- Swing
- Mounting location
- On structure of enclosure
- Mounting support
- 19" swing rack support
- Range compatibility
- PanelSeT PanelSeT SF; PanelSeT PanelSeT SM
- Device composition
- 1 rack
- Number of units 19"
- 36
- Rack coverage
- Complete
- Material
- Steel
- Enclosure/cubicle description
- Floor-standing enclosure
- Surface finish
- Zinc coated
- Lock type
- Lock 5 mm double bar
- fixing mode
- By fixing element
- Adjustment
- Adjustable in depth every 25 mm
- Permanent permissible load
- 3 kg per unit
- Opening of the 19" racks
- Reversible 120 °
- Height
- 1800 mm
- Width
- 600 mm
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Country of origin
- ES
- Warranty (in months)
- 18
- Model
- Swing frame
- Suitable for enclosure building width
- 600 mm
- Suitable for enclosure building height
- 1800 mm
- Depth
- 180 mm
- Max. load capacity
- 3 kg
- Colour
- Grey
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 8538.10
Cross References
- EAN 3606480067242
- SAP 1000470672
- Code 8114407
