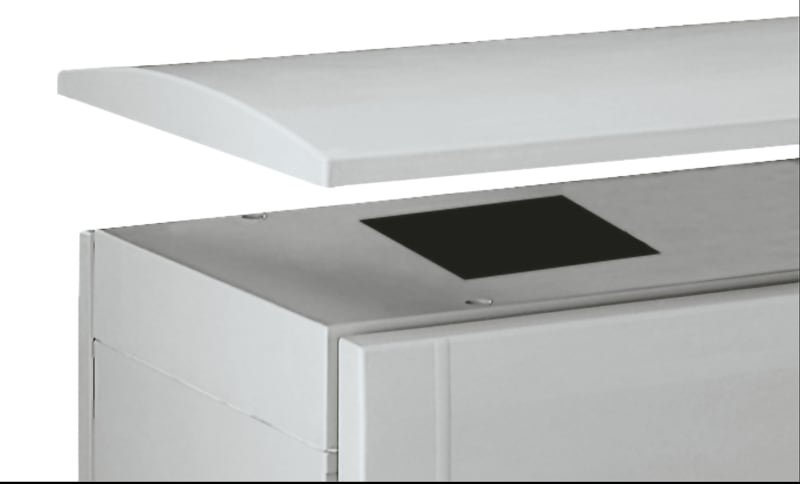

Schneider Electric Floor standing encl.polyester vers.PLAZT w/open plinth+canopy 750X750X320 IP44 NSYPLAZT773G
Pricing
Request a quote
We reply within 24 hours
Product Description
THLSA REGNT TO.SOK 7035 750X750X320.
Technical Specifications
- Manufacturer part number (MPN)
- NSYPLAZT773G
- EAN / GTIN
- 3606480776335
- Sales unit
- pcs
- IP rating
- IP44
- Dimensions
- 750×750×320
- Range
- PanelSeT
- Product name
- PanelSeT PLA
- Enclosure type
- Multi-purpose
- Product or component type
- Suitable enclosure
- Version
- PLAZT
- Nominal height
- 750 mm
- Nominal width
- 750 mm
- Nominal depth
- 320 mm
- Enclosure mounting
- Floor-standing
- Device composition
- 1 top part; 1 bottom part; 2 side part; 1 rear panel; 1 door; 1 canopy; 1 plinth
- Body type
- Open top and bottom part assembled with side parts
- Door type
- Plain front
- Number of doors
- 1 door(s)
- Door opening side
- Reversible (180 °)
- Lock type
- 2 points handle lock, 5 mm double-bar
- Accessibility for operation
- Front; Rear; Top; Bottom
- Removable parts
- Door by hinges; Rear panel by fixing element; Canopy by fixing element
- Material
- Polyester reinforced with fibreglass
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- Veritas
- Electrical insulation class
- Class II
- IP degree of protection
- IP44 conforming to IEC 60529 (with plinth type open bottom part and ventilated canopy)
- IK degree of protection
- IK10 conforming to IEC 62262 (plain door)
- Fire resistance
- 960 °C conforming to IEC 62208
- Ambient air temperature for storage
- -35…90 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 6
- Country of origin
- ES
- Warranty (in months)
- 18
- Width
- 750 mm
- Height
- 750 mm
- Depth
- 320 mm
- RAL-number
- 7035
- Number of locks
- 1
- Material quality
- Polyester
- Impact strength
- IK10
- Degree of protection (IP)
- IP44
- Suitable for outdoor set-up
- Yes
- Connectable
- No
- Wall fastening possible
- No
- Surface finishing
- Untreated
- Max. permitted load of the enclosure according to IEC 62208
- 687 N
- Max. permitted load of the door(s) according to IEC 62208
- 157 N
Standards & Compliance
- HS Code
- 9403.70
Cross References
- EAN 3606480776335
- SAP 1000752603
- Code 8488777
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Insulated flexible bar, PrismaSeT P and G, 200 A, busbar size 20 x 2mm, length 1800mm, set of 1 LVS04742
Schneider Electric
Schneider Electric Power interface module, TeSys island, 40A AC-1, 38A AC-3, 18.5kW / 20hp TPRPM038
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250HB1, 75KA/690VAC, 4 poles, MicroLogic 6.2E trip unit 160A C25V46E160
Schneider Electric
Schneider Electric Soft starter, Altistart 480, 62A, 208 to 690V AC, control supply 110 to 230V AC ATS480D62Y
Schneider Electric

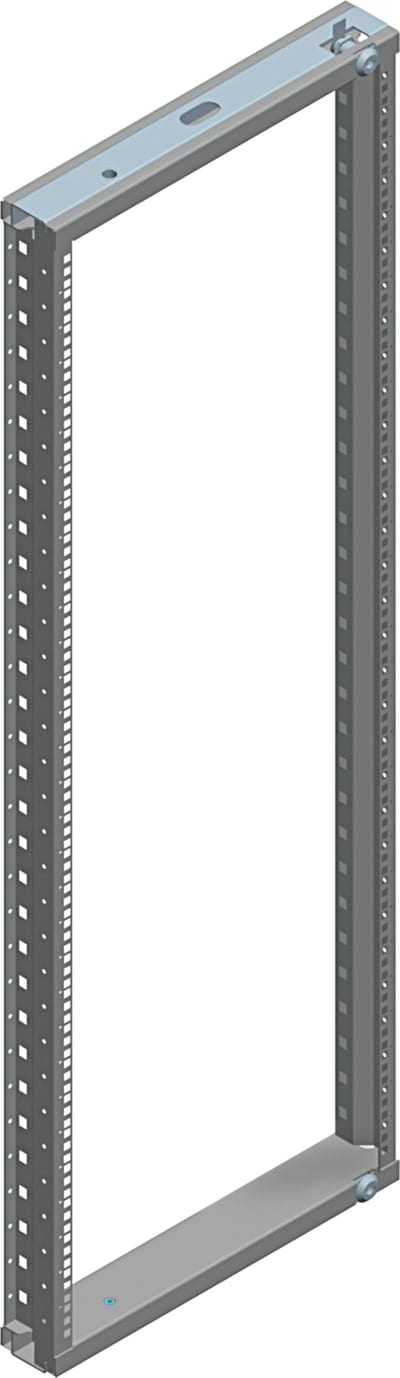

Schneider Electric PanelSeT SF/SM 19" swing rack - 1800X600 mm - 36 modules NSYRSW636
Schneider Electric

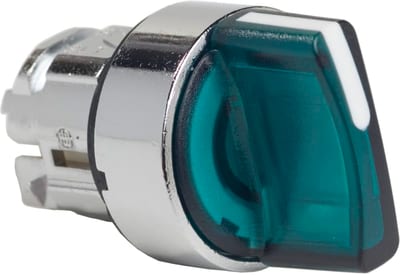

Selector switch with LIGHT 3ST.RET.FR.V Green
ZB4BK1733
Schneider Electric

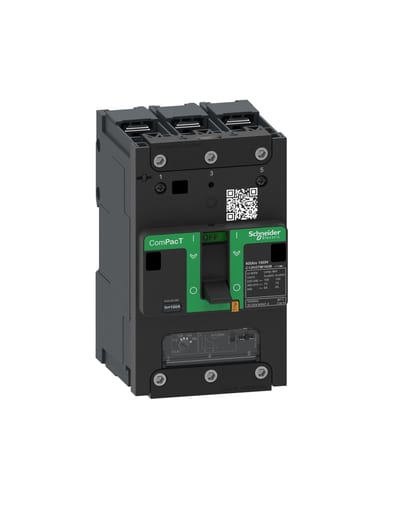

Schneider Electric Circuit breaker, ComPacT NSXm 63H, 70KA/415VAC, 3 poles, TMD trip unit 16A, lugs/busbars C11H3TM016B
Schneider Electric

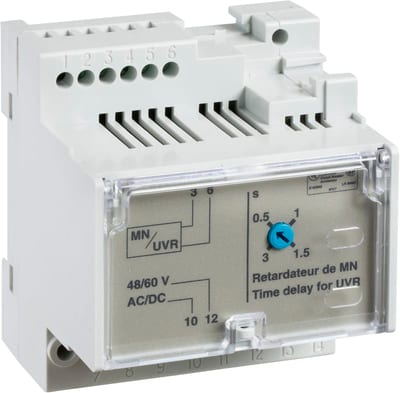

Adjustable Time delay for (33681)
