Gland Plate 2-piece 10X5
Pricing
Request a quote
We reply within 24 hours
Product Description

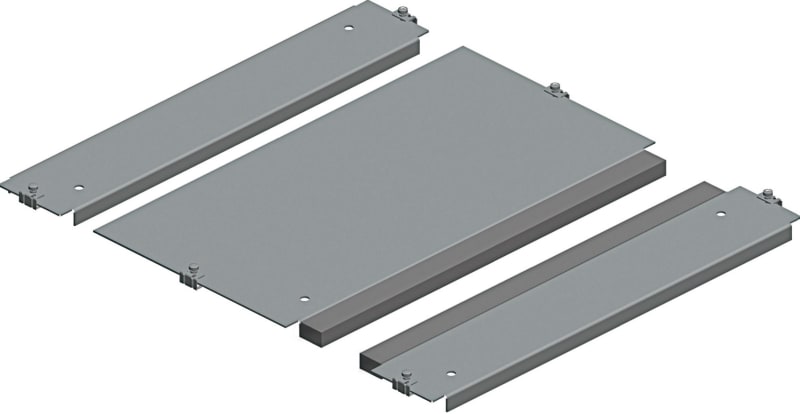

Schneider Electric NSYEC1051 Flange plate 2-piece 10X5.
Technical Specifications
- Manufacturer part number (MPN)
- NSYEC1051
- EAN / GTIN
- 3606485126333
- Sales unit
- pcs
- Range
- PanelSeT
- Product or component type
- Cable gland plate
- Accessory / separate part category
- Cable management accessory
- Application
- Multi-purpose
- Range compatibility
- PanelSeT SF
- Mounting location
- Enclosure bottom
- Cable gland type
- Standard
- Cable entry
- 1 entry
- Device composition
- fixing elements; 1 plate; self extinguishing polyurethane adhesive gasket with cross-section of 15 x 25 mm
- Quantity per set
- Set of 1
- Material
- Galvanised steel
- Height
- 30 mm
- Width
- Nominal: 1000 mm; Useful: 816 mm; Real: 860 mm
- Depth
- Nominal : 500 mm
- thickness
- 1.5 mm
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 25.000 cm
- Package 1 Length
- 85.500 cm
- Package 1 Weight
- 5.000 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 45
- Package 2 Height
- 59.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 240.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Surface protection
- Galvanised
- Pre-stamping
- Yes
- Type
- Straight
- Thread type
- None
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606485126333
- SAP 1000089092
- Code 8581391
