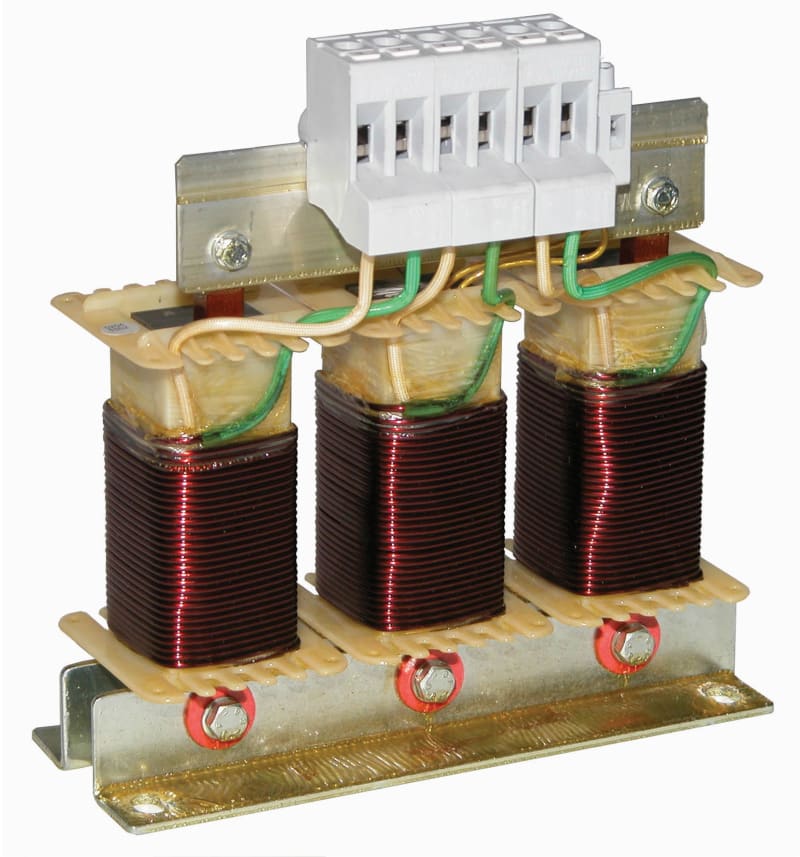

Motordrossel 12A (VW3A5101)

Schneider Electric motor choke - 12 A - for variable speed drive.

Manufacturer part number (MPN)

VW3A5101

EAN / GTIN

3389118065895

HS code

8504.40

Sales unit

pcs

Package quantity

8 pcs

Product or component type

Motor choke

Range compatibility

Altivar 61; Altivar 71

Product specific application

Output filter

[In] rated current

12 A

Product compatibility

ATV61H075M3; ATV61H075N4; ATV61HU15M3; ATV61HU15N4; ATV61HU22M3; ATV61HU22N4; ATV61HU30N4; ATV61HU40N4; ATV61W075N4; ATV61W075N4C; ATV61WU15N4; ATV61WU15N4C; ATV61WU22N4; ATV61WU22N4C; ATV61WU30N4; ATV61WU30N4C; ATV61WU40N4; ATV61WU40N4C; ATV71H037M3; ATV71H075M3; ATV71H075N4; ATV71HU15M3; ATV71HU15N4; ATV71HU22M3; ATV71HU22N4; ATV71HU30N4; ATV71HU40N4; ATV71P075N4Z; ATV71PU15N4Z; ATV71PU22N4Z; ATV71PU30N4Z; ATV71PU40N4Z; ATV71W075N4; ATV71WU15N4; ATV71WU22N4; ATV71WU30N4; ATV71WU40N4

nedded quantity

1

Electrical connection

Terminal, connection capacity: 10 mm² / 6 AWG

Maximum motor cable length

75 m shielded cable P motor 0.75…4 kW at 380...480 V 1; 90 m unshielded cable P motor 0.75…4 kW at 380...480 V 1; 150 m shielded cable P motor 0…2.2 kW at 200...240 V 1; 300 m unshielded cable P motor 0…2.2 kW at 200...240 V 1

dv/dt

500 V/µs max at 400 V

Thermal losses

150 W

Tightening torque

1.5 N.m

maximum drive output frequency

100 Hz

Protection type

Thermal protection by temperature-controlled switch, tripping temperature: 125 °C for <250 V AC, <0.5 A

Ambient air temperature for operation

-10…50 °C

Product weight

5.5 kg

IP degree of protection

IP20 (with kits VW3A9612,613); IP00

Ambient air temperature for storage

-25…70 °C

Country of origin

HU

Warranty (in months)

18

HS Code

8504.40

• EAN 3389118065895
• SAP 1000045827
• Code 8796212
