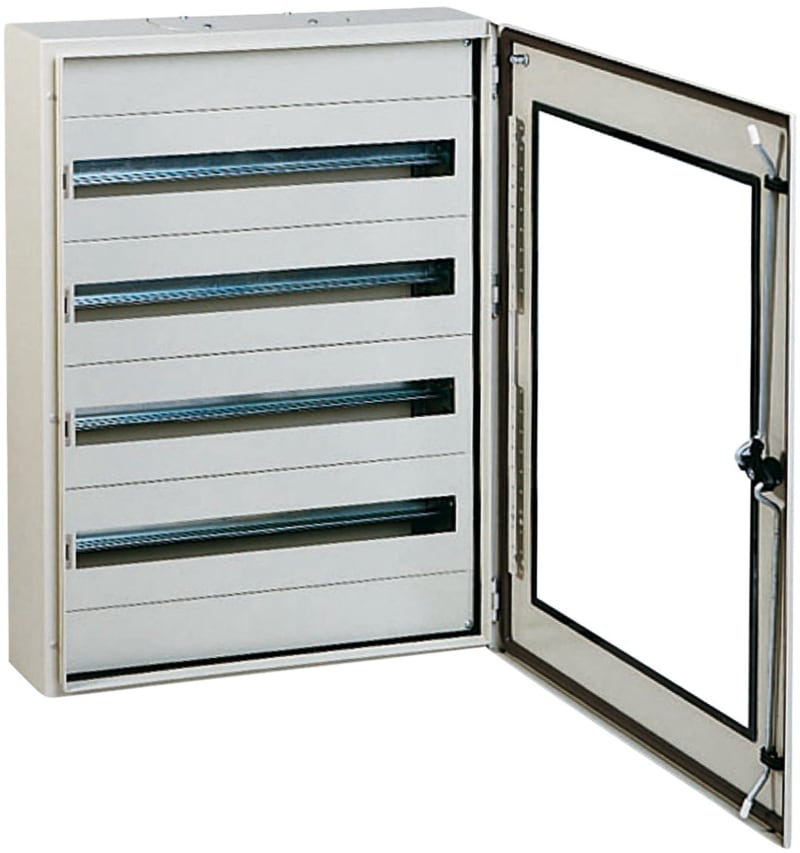

Schneider Electric PanelSet S3DM H800XW600XD150.IP66 IK10 RAL7035. top and bottom. NSYS3DM8615T
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYS3DM8615T S3DM Module gl door.
Technical Specifications
- Manufacturer part number (MPN)
- NSYS3DM8615T
- EAN / GTIN
- 3606480158513
- Sales unit
- pcs
- Range
- PanelSeT
- Product name
- PanelSeT S3DM
- Application
- Modular distribution application
- Category
- Compact enclosure
- Enclosure nominal height
- 800 mm
- Enclosure nominal width
- 600 mm
- Enclosure nominal depth
- 150 mm
- Door type
- Glazed
- Mounting plate description
- Without mounting plate
- Type of gland plate
- Standard
- Installation accessory type
- Wall-mounting
- Product destination
- For installation of modular chassis DLM
- Device composition
- 2 cable gland plate: top and bottom; 1 body; 1 door; 1 lock
- body type
- Single piece body; Gutter-shaped front rail double sheet thickness
- Number of doors
- Front face: 1 door(s)
- Door opening side
- Reversible (120 °)
- Lock type
- 3 points lock, 3 mm double-bar
- Accessibility for operation
- Front
- Removable parts
- Door by hinges; Cable gland plate by screws
- Material
- Body: steel; Door: steel and security glass
- Surface finish
- Epoxy-polyester powder
- Colour
- Grey (RAL 7035)
- Standards
- IEC 62208
- Product certifications
- GL; BV; UL; cUL; DNV
- IK degree of protection
- IK08 conforming to IEC 62262
- IP degree of protection
- IP66 conforming to IEC 60529
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 19.500 cm
- Package 1 Width
- 61.000 cm
- Package 1 Length
- 81.500 cm
- Package 1 Weight
- 19.910 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 12
- Package 2 Height
- 177.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 252.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Width
- 600 mm
- Height
- 800 mm
- Depth
- 150 mm
- RAL-number
- 7035
- Number of locks
- 1
- Impact strength
- IK08
- Degree of protection (IP)
- IP66
- Suitable for outdoor set-up
- No
- Connectable
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- Max. permitted load of the enclosure according to IEC 62208
- 50 N
Standards & Compliance
- HS Code
- 9403.20
Cross References
- EAN 3606480158513
- SAP 1000488833
- Code 8602064
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric High power contactor,TeSys Giga 800,4P(4NO),AC-1 <=440V 1050A,advanced version,48-130V AC/DC wide band coil LC1G8004EHEA
Schneider Electric
Push-button flush red (ZB4FH04)
Schneider Electric

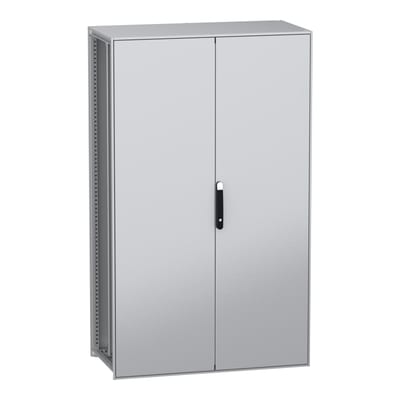

Floor-standing cabinet SFN m/m.pl 2000X1200X600 2DOOR
NSYSFN2012602DP
Schneider Electric

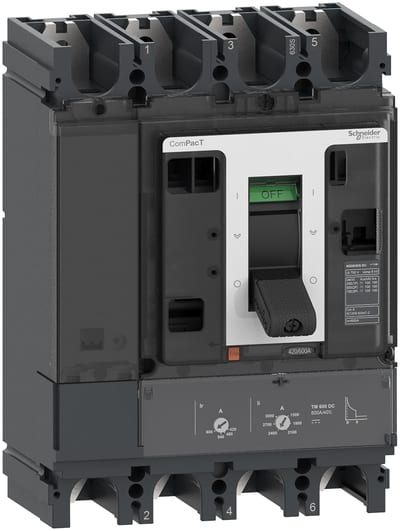

Schneider Electric Circuit breaker, ComPacT NSX400F DC, 36KA/750VDC, 4 poles, TM-DC trip unit 320A C40F4TM320D
Schneider Electric

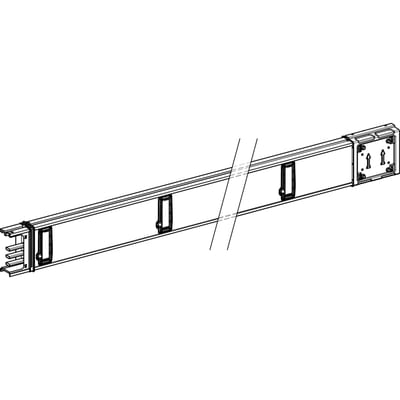

RAIL 400A 3L 5M 20 Outlet
KSA400ED35020
Schneider Electric

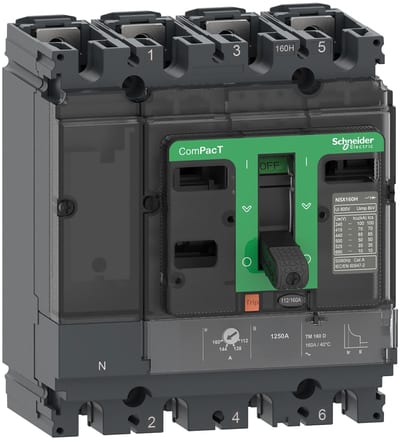

Schneider Electric Circuit breaker, ComPacT NSX100HB2, 100KA/690VAC, 4 poles 4D (neutral fully protected), TMD trip unit 80A C10W4TM080
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX100M AC/DC, 40KA/240VAC, 1 pole, TMD trip unit 40A C10M1TM040
Schneider Electric

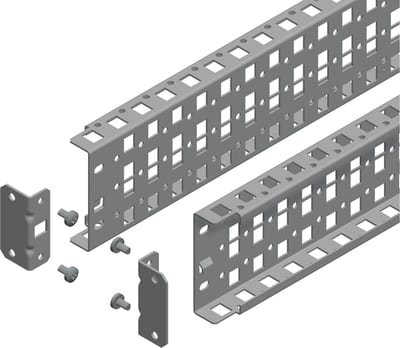

Schneider Electric Universal cross rails, PanelSeT SFN, PanelSeT SF, PanelSeT SM, H90 W600MM, 3 rows, set of 2 NSYSUCR9060
