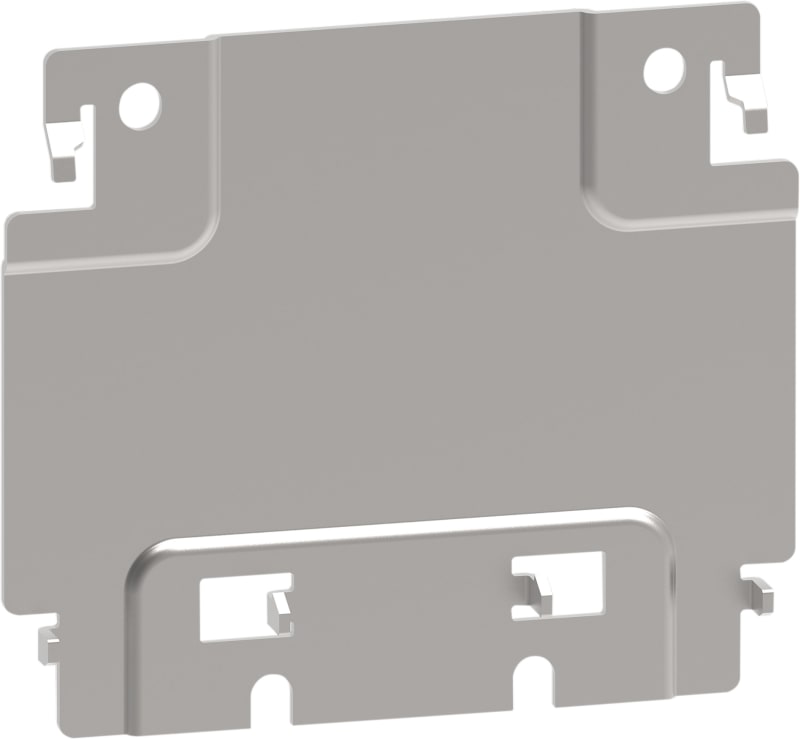

Mounting plate f/ LR9G500 (LA9G3651)
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LA9G3651 Mounting plate f/ele.overlastr.LR9G500,independent mounting for kont.LC1G265-500.
Technical Specifications
- Manufacturer part number (MPN)
- LA9G3651
- EAN / GTIN
- 3606481916563
- Sales unit
- pcs
- Package quantity
- 15 pcs
- Range
- TeSys
- Device short name
- LA9G
- Product or component type
- Mounting base
- Accessory / separate part category
- Installation accessories
- Range compatibility
- TeSys G LC1G contactor
- Product compatibility
- LC1G265...330; LC1G300...475; LR9G500
- Quantity per set
- Set of 1
- [Ie] rated operational current
- 330 A
- IP degree of protection
- IP20 conforming to IEC 60529
- Height
- 10 mm
- Width
- 95 mm
- Depth
- 145 mm
- thickness
- 6 mm
- Product weight
- 0.4 kg
- Operating altitude
- 3000 m without derating; 5000 m with derating factor
- Standards
- EN/IEC 60947-4-1; UL 60947-4-1; CSA C22.2 No 60947-4-1
- Pollution degree
- 3 conforming to IEC 60947-1
- Ambient air temperature for operation
- -40…60 °C
- Ambient air temperature for storage
- -60…80 °C
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 15
- Country of origin
- CN
- Warranty (in months)
- 18
- Type of accessory/spare part
- Mounting plate
- Accessory
- Yes
- Spare part
- Yes
Standards & Compliance
- HS Code
- 7326.19
Cross References
- EAN 3606481916563
- SAP 1200587651
- Code 82974759
