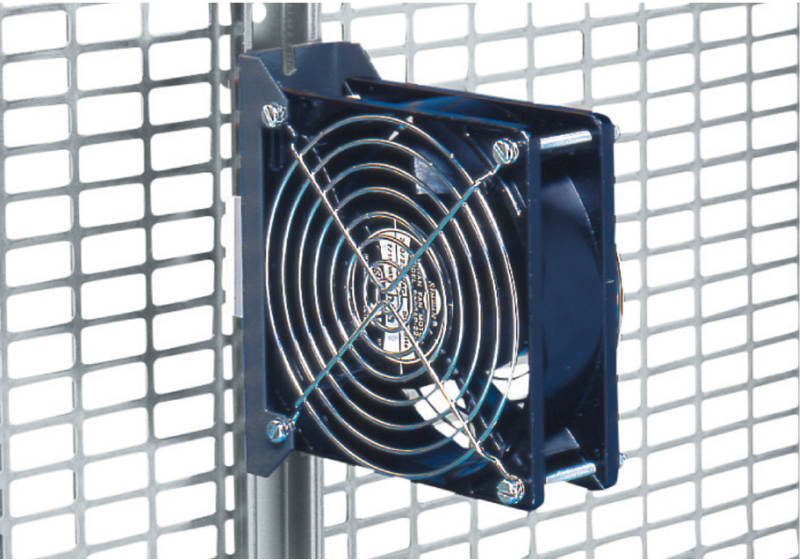

Schneider Electric Climasys forced vent. 170 M3/h, 230V without grille NSYCVF170M230
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYCVF170M230 FAN 170m³/h 230V WITHOUT RIST, ClimaSys.
Technical Specifications
- Manufacturer part number (MPN)
- NSYCVF170M230
- EAN / GTIN
- 3606480151422
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Voltage
- 230 V
- Range
- ClimaSys
- Product name
- ClimaSys CV
- Product or component type
- Fan
- Range compatibility
- Prisma P
- Flow rate
- Free flow rate: 170 m3/h at 50 Hz
- Input voltage
- 230 V 50/60 Hz
- Absorbed power
- 17 W
- Noise level < at
- 41 dB
- Height
- External: 119 mm
- Width
- External: 119 mm
- Depth
- External : 38 mm
- Product weight
- 0.82 kg
- Material
- Protective grille: steel
- Device composition
- 1 axial motor; 2 protective grille: on the front and rear surfaces; 1 fixing collar
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 10
- Number of Units in Package 3
- 320
- Country of origin
- FR
- Warranty (in months)
- 18
- Mounting method
- Screw mounting
- Colour
- Black
- RAL-number
- 9005
- Voltage type
- AC
- Suitable for 19 inch rack mounting
- No
- Number of fans
- 1
- EMC-version
- No
- Degree of protection (IP)
- IP20
- With protective cover
- Yes
- With filter
- No
- Rated power
- 17 W
- Roof fan
- No
- Built as slide-in fan
- No
- Volume flow, freeblowing
- 170 m³/h
- Air circulator
- Yes
- Suitable for wall built-in
- No
- Noise emission
- 50 dB(A)
- Operating voltage AC 50 Hz
- 230 V
- Operating voltage AC 60 Hz
- 230 V
Standards & Compliance
- HS Code
- 8414.59
Cross References
- EAN 3606480151422
- SAP 1000089054
- Code 8581346
