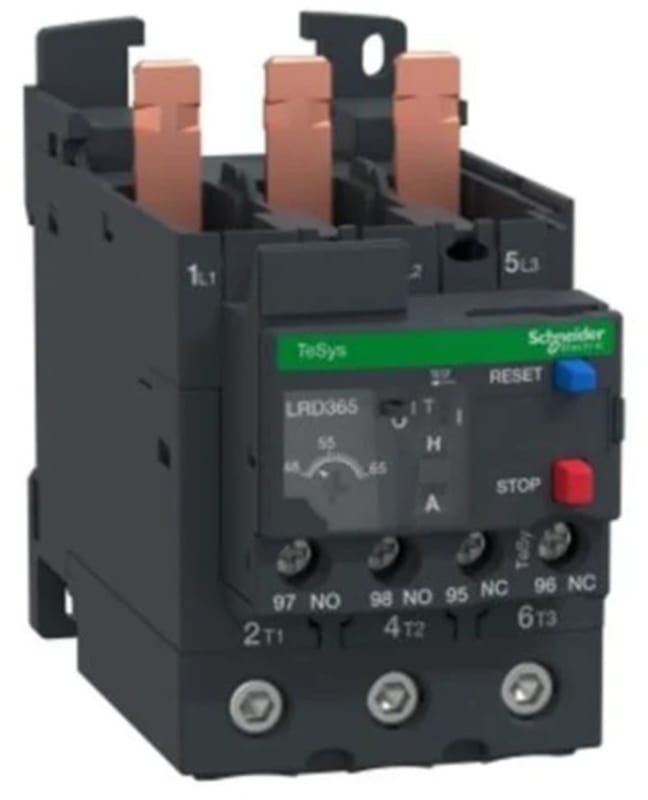

Schneider Electric Thermal overload relay, TeSys Deca, 690VAC, 48 to 65A, 1NO+1NC, class 10A, EverLink BTR screw LRD365
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LRD365 — TeSys thermal overload relay. Bimetallic thermal overload relay for motor protection. Thermal protection, series D. Up to 150 A (0.06 - 75 kW) for both AC and DC motor controls. Integrated manual/automatic reset.
Technical Specifications
- Manufacturer part number (MPN)
- LRD365 EAN / GTIN: 3389119215510 HS code: 8536.90 Sales unit: pcs Package quantity: 13 pcs Setting range: 48-65 A Range: TeSys; TeSys Deca Product name: TeSys LRD; TeSys Deca Product or component type: Differential thermal overload relay Device short name: LRD Relay application: Motor protection Product compatibility: LC1D65A; LC1D50A Network type: DC; AC Thermal overload class: Class 10A conforming to IEC 60947-4-1 Thermal protection adjustment range: 48…65 A [Ui] rated insulation voltage: Power circuit: 600 V conforming to CSA; Power circuit: 600 V conforming to UL; Power circuit: 690 V conforming to IEC 60947-4-1 Network frequency: 0...400 Hz Mounting support: Plate, with specific accessories; Rail, with specific accessories; Under contactor Tripping threshold: 1.14 +/- 0.06 Ir conforming to IEC 60947-4-1 Auxiliary contact composition: 1 NO + 1 NC [Ith] conventional free air thermal current: 5 A for signalling circuit Permissible current: 0.95 A at 38
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3389119215510
- SAP 1000036800
- Code 8726363
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric spring return contact block - 1 NC + 2 NO - front mounting XENG1191
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250B, 25KA/415VAC, 3 poles, MicroLogic 2.2 trip unit 250A C25B32D250
Schneider Electric
Schneider Electric NSYS3X3215 PanelSet S3X stainless 304L, Scotch Brite® finish, H300XW200XD150 mm.
Schneider Electric
Schneider Electric Switch disconnector, ComPacT NSX250NA, 4 poles, fixed, thermal current Ith 250A C254250S
Schneider Electric
Schneider Electric Harmony XAP, XB2 SL, Empty control station, zinc alloy, grey, M20, 3 cut-outs 22mm, 80 x 130 x 77, UL cULus XAPD2503
Schneider Electric
Schneider Electric PC box IP66 IK08 RAL7035 INT.H225W175D100 EXT.H241W194D105 opaque PC cover H20 NSYTBP241910H
Schneider Electric
CYB-DC BR.2XRJ45 AMP CAT. 3 WHITE.
5971713
Schneider Electric
Blank Cover RJ45 AMP
5914160
Technical guides
Catalogue entry last verified: 2026-09-29. A manufacturer datasheet is attached to this entry — confirm application-critical values against it.
Frequently asked questions
- Where can I buy LRD365?
- LRD365 can be ordered from cballast.com as a Schneider Electric catalogue item: request a quotation on this page or email sales@cballast.com, and the order ships worldwide.
- What is the manufacturer part number for this Schneider Electric product?
- The manufacturer part number is LRD365.
- What is the HS code for LRD365?
- The customs tariff (HS) code for LRD365 is 8536.90.
- Who manufactures LRD365?
- LRD365 is a Schneider Electric product in the Switchgear & Protection range.
- Is a datasheet available for LRD365?
- Yes — the LRD365 datasheet can be viewed and downloaded on this page.
- What is the minimum order quantity for LRD365?
- The minimum order quantity is 1.
- Is LRD365 available?
- Yes — LRD365 is available to order: fulfilment is from supplier stock in cBallast's European network, dispatched directly from the warehouse to the customer, with the exact lead time stated in the quotation (reply within 24 hours).
