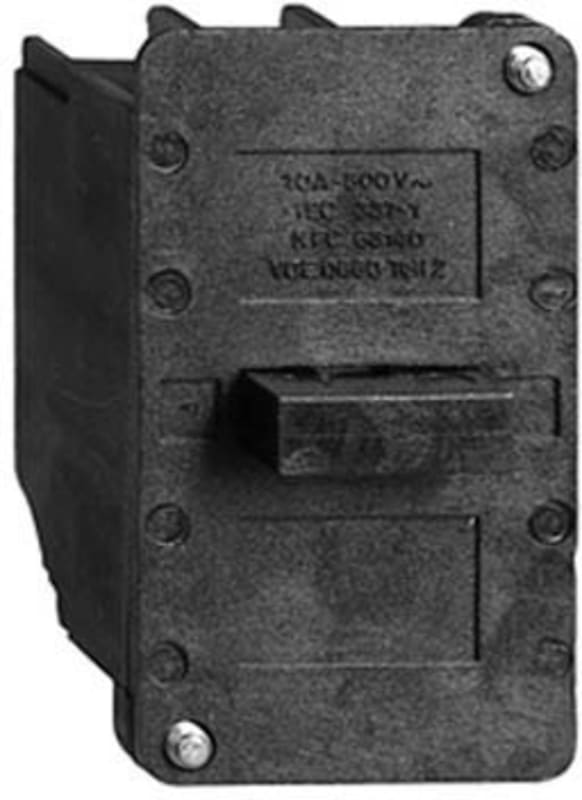

Schneider Electric spring return contact block - 1 NC + 2 NO - front mounting XENG1191

Schneider Electric XENG1191 — spring return contact block - 1 NC + 2 NO - front mounting.

Manufacturer part number (MPN)

XENG1191

EAN / GTIN

3389110645705

Sales unit

pcs

Package quantity

100 pcs

Range of product

Harmony XAC

Product or component type

Contact block

Component name

XENG

Electrical circuit type

Control circuit

Contact block application

2-speed

Contact block type

Single

Type of operator

Spring return

Product compatibility

XACA; XACA9...head

Contacts type and composition

1 NC + 2 NO

Mounting of block

Front mounting

Contact operation

Slow-break; Staggered

Connections - terminals

Screw clamp terminals, 1 x 0.5...1 x 2.5 mm² without cable end; Screw clamp terminals, 1 x 0.5...2 x 1.5 mm² with cable end

Mechanical durability

1000000 cycles

Contact code designation

A600 AC-15, Ue = 240 V, Ie = 3 A conforming to IEC 60947-5-1 appendix A; A600 AC-15, Ue = 600 V, Ie = 1.2 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 250 V, Ie = 0.27 A conforming to IEC 60947-5-1 appendix A; Q600 DC-13, Ue = 600 V, Ie = 0.1 A conforming to IEC 60947-5-1 appendix A

[Ithe] conventional enclosed thermal current

10 A

[Ui] rated insulation voltage

600 V (pollution degree 3) conforming to IEC 60947-1

[Uimp] rated impulse withstand voltage

6 kV conforming to IEC 60947-1

Maximum resistance across terminals

25 MOhm

Operating force

18 N

Short-circuit protection

10 A fuse protection by cartridge fuse type gG

Rated operational power in W

40 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 120 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 48 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 48 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C; 65 W DC-13 for 1000000 cycles, operating rate <60 cyc/mn at 24 V, load factor = 0.5 (inductive load) conforming to IEC 60947-5-1 appendix C

Terminals description ISO n°1

(21-22)NC; (33-34)NO_CL; (13-14)NO

Product weight

0.04 kg

Standards

UL 508; IEC 60947-5-1; CSA C22.2 No 14

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

3.000 cm

Package 1 Width

3.800 cm

Package 1 Length

5.300 cm

Package 1 Weight

42.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

100

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.501 kg

Unit Type of Package 3

P06

Number of Units in Package 3

1600

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

80.516 kg

Country of origin

CZ

Warranty (in months)

18

HS Code

8536.50
