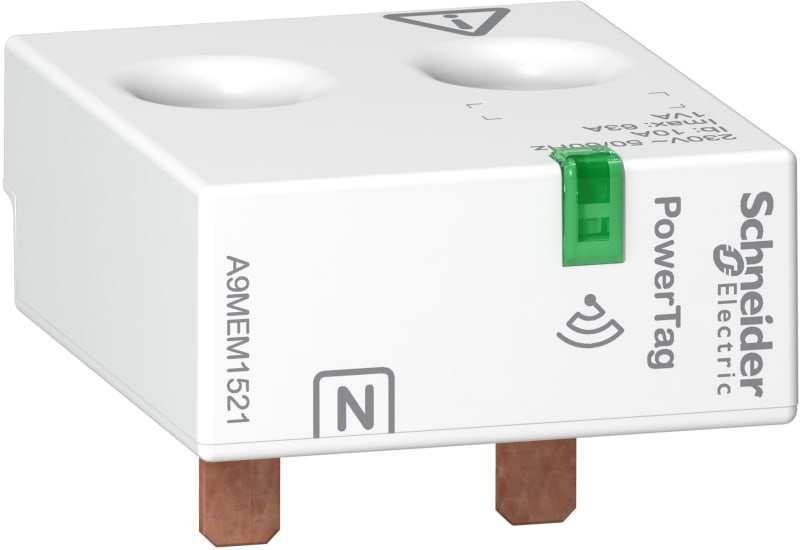

Schneider Electric energy sensor, PowerTag Monoconnect 63A 1P+N top position A9MEM1521
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric A9MEM1521 Acti 9 PowerTag 1P+N 63A wireless energy meter for mounting above on miniature circuit breaker.
Technical Specifications
- Manufacturer part number (MPN)
- A9MEM1521
- EAN / GTIN
- 3606480909139
- HS code
- 8536.90
- Sales unit
- pcs
- Package quantity
- 48 pcs
- Rated current
- 63 A
- Number of poles
- 1P+N
- Range of product
- PowerLogic
- Product name
- PowerTag A9 M63
- Product or component type
- Energy sensor
- Poles
- 1P + N
- Maximum current [Imax]
- 63 A
- [Ib] Basic current
- 10 A
- Starting current
- 40 mA
- Saturation current
- 130 A
- Product specific application
- Overload alarm; Cost allocation; Circuit monitoring; Load monitoring; Energy management
- Concentrator compatibility
- EcoStruxure Panel Server Entry; EcoStruxure Panel Server Universal; EcoStruxure Panel Server Advanced; Wiser hub generation 2; Acti9 Smartlink SI B; Acti9 Smartlink SI D; Acti9 PowerTag Link; Acti9 PowerTag Link HD
- Application
- Buildings: breaker voltage monitoring; Buildings: cost allocation; Buildings: overload alarm
- Range compatibility
- Acti9 Acti9 iKQE RCBO; Multi9 Multi9 C60; Multi9 Multi9 ID; Multi9 Multi9 C32N; Multi9 Multi9 C65; Acti9 Acti9 iID; Acti9 Acti9 iID K; Acti9 Acti9 iK60; Acti9 Acti9 iKQ; Acti9 Acti9 K60; Acti9 Acti9 Reflex iC60; Acti9 Acti9 iC65; Acti9 Acti9 DT60; Acti9 Acti9 iC60 single terminal
- Type of measurement
- Power factor; Current; Active energy; Active power; Voltage
- Accuracy class
- Class 1 current conforming to IEC 61557-12; Class 0.5 voltage conforming to IEC 61557-12; Class 1 active power conforming to IEC 61557-12; Class 1 active energy conforming to IEC 61557-12; Class 1 power factor conforming to IEC 61557-12
- Mounting location
- Top
- Mounting support
- On circuit breaker
- Product destination
- Switchboard
- Event management
- Voltage loss with measured current at voltage loss
- Transmission support medium
- Radio frequency 2.4…2.4835 GHz conforming to IEEE 802.15.4
- Emission power
- 10 mW
- Form factor
- Monoconnect
- Mounting mode
- By screws (terminals)
- Electrical connection (voltage sensing & power supply)
- Connector tooth
- Cable cross section
- 1 rigid cable 1.5…16 mm²; 2 stranded cable 1.5…2.5 mm²; 2 rigid cable 1.5…2.5 mm²; 1 stranded cable 1.5…16 mm²
- supply voltage
- 200...240 V AC, +/- 20 %
- Network frequency
- 50 Hz; 60 Hz
- Maximum power consumption
- 1 VA
- Standards
- IEC 61557-12; IEC 61010-1; IEC 61010-2-030; IEC 61326-1; ETSI EN 300 328; ETSI EN 301 489-1
- Product certifications
- IEC; DNV Marine
- Height
- 16.5 mm
- Width
- 36 mm
- Depth
- 43 mm
- Product weight
- 17.5 g
- Colour
- White (RAL 9003)
- Compatibility code
- PowerTag A9 M63
- Quality labels
- CE
- Directives
- 2014/53/EU - radio equipment directive
- Operating altitude
- 0...2000 m
- Ambient air temperature for operation
- -25…60 °C
- Ambient air temperature for storage
- -40…85 °C
- Overvoltage category
- III conforming to IEC 61010-1
- Measurement category
- Category III conforming to IEC 61010-2-030
- IP degree of protection
- IP20 conforming to IEC 60529
- IK degree of protection
- IK05
- Pollution degree
- 3
- Relative humidity
- 0…95 % at 45 °C conforming to IEC 60721-3-3
- Vibration resistance
- 3M4 conforming to IEC 60721-3-3
- Electromagnetic compatibility
- Industrial electromagnetic environment conforming to IEC 61326-1; Radiated EMC conforming to ETSI EN 301 489-17; Electromagnetic emission conforming to IEC 62311
- environmental characteristics
- Dustproof class 3S3 conforming to IEC 60721-3-3; Salt mist class 3C2 conforming to IEC 60721-3-3; Indoor use
- Warranty (in months)
- 18
Standards & Compliance
- HS Code
- 8536.90
Cross References
- EAN 3606480909139
- SAP 1200014442
- Code 81383715
Product Documentation
More from Schneider Electric
Schneider Electric
Floor-standing cabinet SFN m/m.pl 2000X800X400
NSYSFN20840P
Schneider Electric
J.F.BR IID 4P 63A 100MA-S THV
A9Z83463
Schneider Electric
Schneider Electric ZB4BA2 Harmony XB4 Push-Button Head — Ø22 mm, Black, flush, spring return, non-illuminated, metal bezel
Schneider Electric
Schneider Electric Thermal overload relay, TeSys Deca, 690VAC, 48 to 65A, 1NO+1NC, class 10A, EverLink BTR screw LRD365
Schneider Electric
Schneider Electric spring return contact block - 1 NC + 2 NO - front mounting XENG1191
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSX250B, 25KA/415VAC, 3 poles, MicroLogic 2.2 trip unit 250A C25B32D250
Schneider Electric
Schneider Electric NSYS3X3215 PanelSet S3X stainless 304L, Scotch Brite® finish, H300XW200XD150 mm.
Schneider Electric

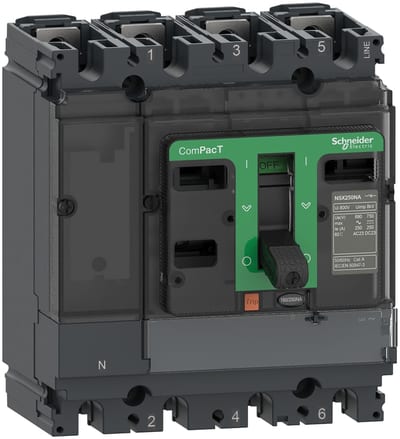

Schneider Electric Switch disconnector, ComPacT NSX250NA, 4 poles, fixed, thermal current Ith 250A C254250S
