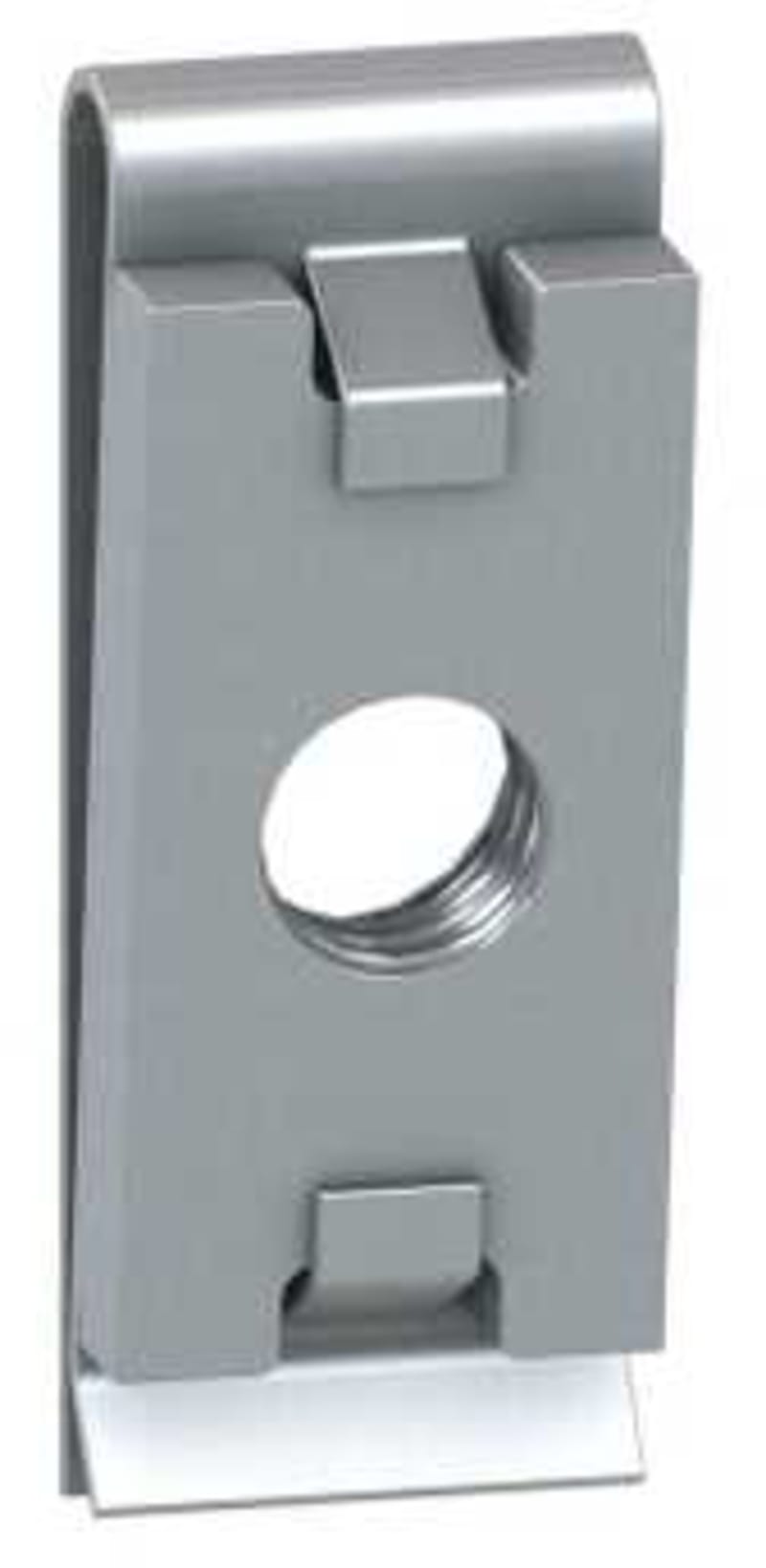

Schneider Electric AF1EA5 SLIDING NUT - M5
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric AF1EA5 SLIDING NUT - M5 is listed under Fasteners & Hardware / Nuts. Sales unit: pcs; Package quantity: 100 pcs; Device short name: AM3MU; AM3EC; Quantity per set: Set of 100; ISO thread: M5; Product weight: 0.008 kg.
Technical Specifications
- Manufacturer part number (MPN)
- AF1EA5
- EAN / GTIN
- 3389110570069
- Sales unit
- pcs
- Package quantity
- 100 pcs
- Accessories included with enclosure
- Ducting support; Pre-slotted mounting plates
- Accessory / separate part category
- Mounting accessories
- Device short name
- AM3MU; AM3EC
- Quantity per set
- Set of 100
- ISO thread
- M5
- Mounting support
- -
- Product weight
- 0.008 kg
- Type of nut
- Clip
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 0.140 cm
- Package 1 Width
- 10.000 cm
- Package 1 Length
- 3.500 cm
- Package 1 Weight
- 4.000 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 100
- Package 2 Height
- 14.000 cm
- Package 2 Width
- 10.000 cm
- Package 2 Length
- 3.500 cm
- Package 2 Weight
- 465.000 g
- Unit Type of Package 3
- CAR
- Number of Units in Package 3
- 2000
- Package 3 Height
- 15.000 cm
- Package 3 Width
- 30.000 cm
- Package 3 Length
- 40.000 cm
- Package 3 Weight
- 9.624 kg
- Country of origin
- ES
- Warranty (in months)
- 18
- Surface protection
- Galvanic/electrolytic zinc plated
- With screw
- No
- Thread type
- Metric
- Material
- Steel
- Thread size (metric)
- 5
- With washer
- No
- With earthing connection
- No
Standards & Compliance
- HS Code
- 7318.19
Cross References
- EAN 3389110570069
- SAP 1000080992
- Code 8849489
Product Documentation
More from Schneider Electric
Schneider Electric

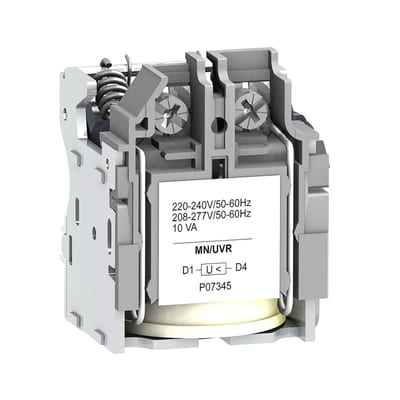

Schneider Electric MN undervoltage release, ComPacT NSX, rated voltage 380/415 VAC 50/60 Hz, 440/480 VAC 60 Hz, screwless spring terminal connections LV429408
Schneider Electric

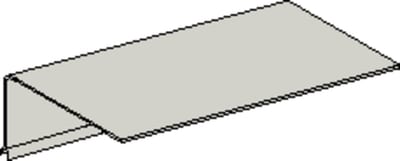

GNISTK.Cover NS630B-1600 3P
33596
Schneider Electric

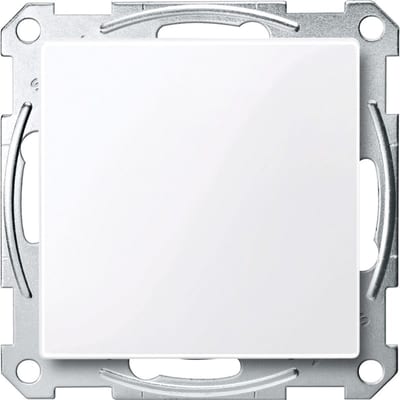

Schneider Electric Push-button Pro T, Merten System M, active white, Temperature sensor, Touchless, Supply KNX 20 mA MTN6185-0325
Schneider Electric

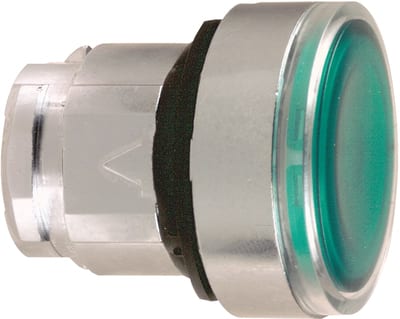

Schneider Electric ZB4BH033 Harmony XB4 Push-Button Head — Ø22 mm, Green, flush, push-push, illuminated (LED), metal bezel
Schneider Electric

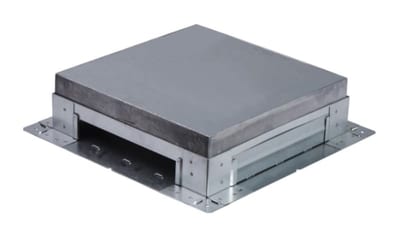

Schneider Electric UFB-IG Cast-In Floor Box 110/150 mm
5197565
Schneider Electric

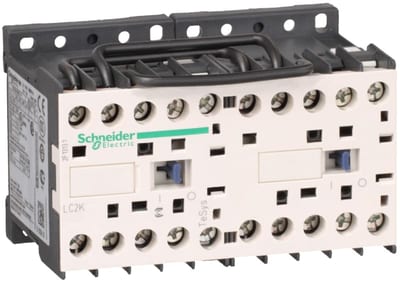

Schneider Electric reversing Contactor, TeSys K, 3P, AC-3/AC-3E,<=440V 9A, 1NC, 24V AC coil LC2K0901B7
Schneider Electric

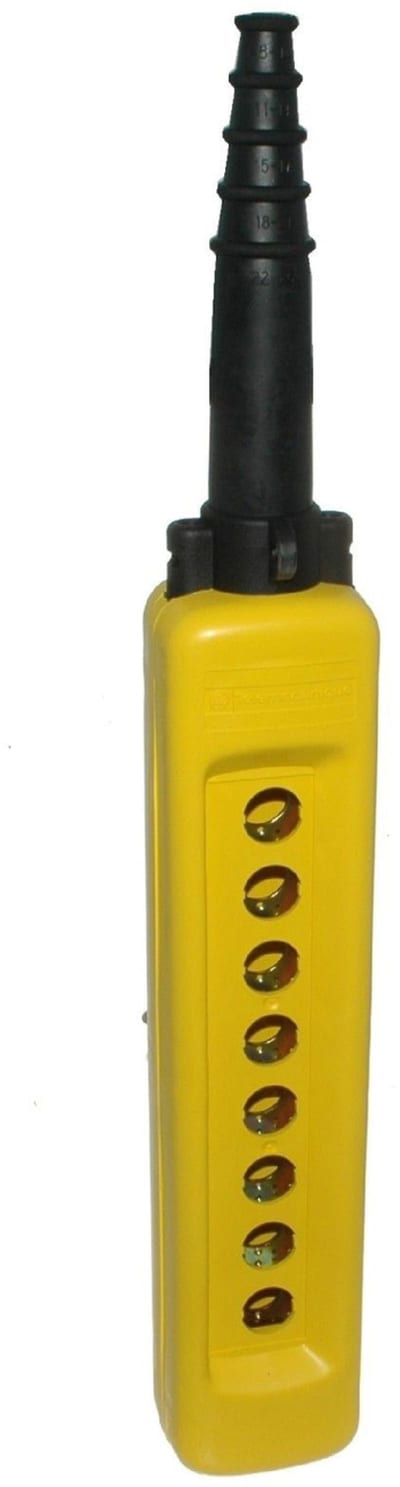

Schneider Electric XACA08 empty pendant control station XAC-A - 8 vertical openings
Schneider Electric

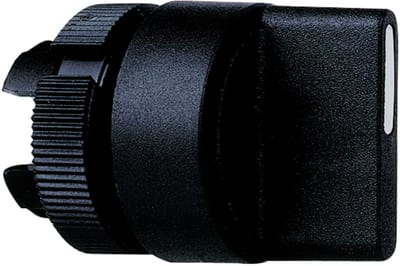

Schneider Electric ZA2BD2 black selector switch - 2 positions - standard handle
