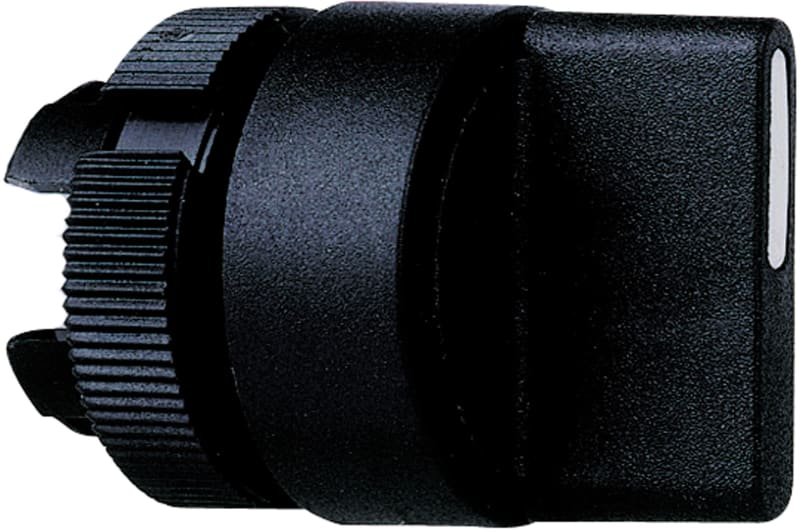

Schneider Electric ZA2BD2 black selector switch - 2 positions - standard handle
Pricing
Request a quote
We reply within 24 hours
Overview
Schneider Electric ZA2BD2 black selector switch - 2 positions - standard handle is listed under Control & Automation / Pushbuttons & Pilot Lights. Sales unit: pcs; Package quantity: 10 pcs; Range of product: Harmony XAC; Product or component type: Selector switch; Component name: ZA2; Product compatibility: XACA.
Technical Specifications
- Manufacturer part number (MPN)
- ZA2BD2
- EAN / GTIN
- 3389110645309
- Sales unit
- pcs
- Package quantity
- 10 pcs
- Range of product
- Harmony XAC
- Product or component type
- Selector switch
- Component name
- ZA2
- Product compatibility
- XACA
- Product weight
- 0.018 kg
- Cap/operator or lens colour
- Black
- Marking
- Unmarked
- Mounting location
- Base of enclosure; Front of enclosure
- Sale per indivisible quantity
- 1
- Standards
- CSA C22.2 No 14; IEC 60947-5-1; IEC 60204-32; UL 508
- Ambient air temperature for operation
- -25…70 °C
- Ambient air temperature for storage
- -40…70 °C
- Vibration resistance
- 15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6
- Shock resistance
- 100 gn conforming to IEC 60068-2-27
- Overvoltage category
- Class II conforming to IEC 61140
- IP degree of protection
- IP65 conforming to IEC 60529
- IK degree of protection
- IK08 conforming to IEC 62262
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 4.0 cm
- Package 1 Width
- 4.0 cm
- Package 1 Length
- 5.0 cm
- Package 1 Weight
- 21.0 g
- Unit Type of Package 2
- BB1
- Number of Units in Package 2
- 10
- Package 2 Height
- 5.0 cm
- Package 2 Width
- 20.0 cm
- Package 2 Length
- 20.0 cm
- Package 2 Weight
- 215.0 g
- Unit Type of Package 3
- S02
- Number of Units in Package 3
- 100
- Package 3 Height
- 15.0 cm
- Package 3 Width
- 30.0 cm
- Package 3 Length
- 40.0 cm
- Package 3 Weight
- 2.477 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Hole diameter
- 22.5 mm
- Number of switch positions
- 2
- Suitable for lighting
- No
- Spring-return
- No
- Colour front ring
- Black
- Degree of protection (IP), front side
- IP66
- Material front ring
- Plastic
- With front ring
- Yes
- Construction type lens
- Round
- Type of control element
- Short rotary handle
- Colour control element
- Black
- Switching function latching
- No
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3389110645309
- SAP 1000057319
- Code 8542195
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric plug-in kit, ComPact NSX 400/630, 4 poles LV432539
Schneider Electric
Schneider Electric 28-Pin removable caged terminal blocks - 1 x 0.34..1 MM2 BMXFTB2800
Schneider Electric
Schneider Electric TeSys LRD thermal overload relays - 0.16...0.25 A - class 10A LRD02
Schneider Electric
Schneider Electric ABS box IP66 IK07 RAL7035 INT.H175W105D80 EXT.H192W121D87 Opaque cover H20 NSYTBS19128
Schneider Electric
Exxact centre plate R+TV+(SAT) white
WDE002445
Schneider Electric
Schneider Harmony XB4 Illuminated Selector Switch Head, 3-Position Spring-Return Left-to-Centre, Green
ZB4BK1533
Schneider Electric
Interpact INS80, 3P (28904)
Schneider Electric

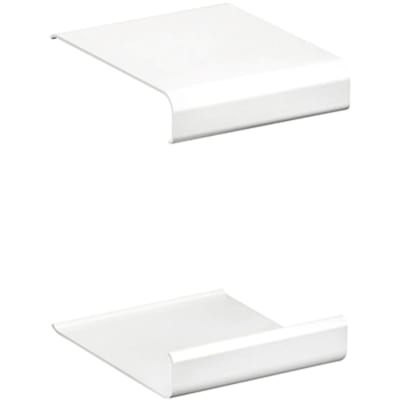

Levelling piece US100 White
