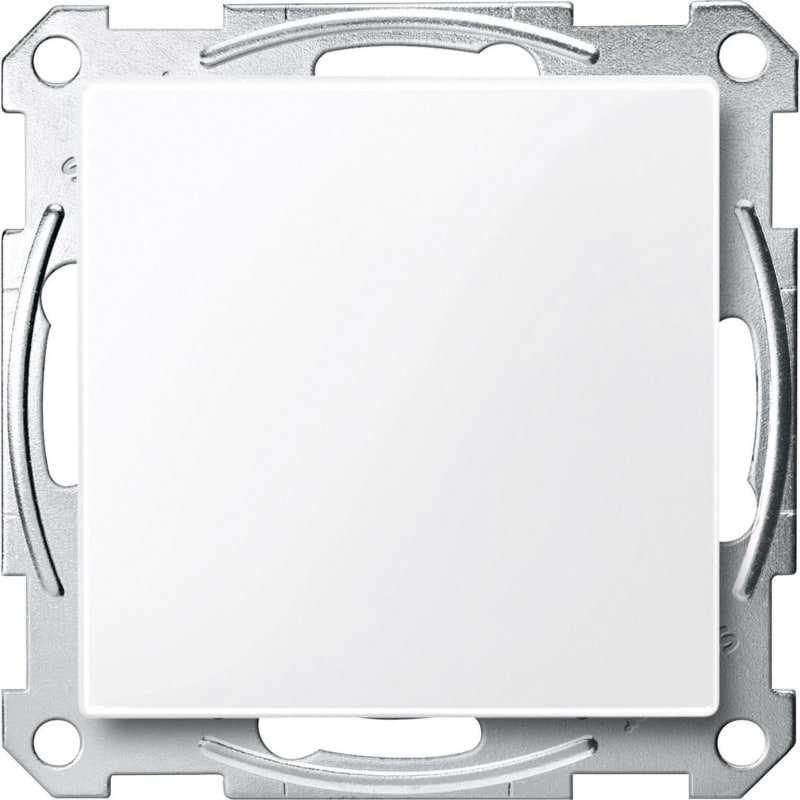

Schneider Electric Push-button Pro T, Merten System M, active white, Temperature sensor, Touchless, Supply KNX 20 mA MTN6185-0325

Schneider Electric MTN6185-0325 — Push-button Pro T, Merten System M, active white, Temperature sensor, Touchless, Supply KNX 20 mA.

Manufacturer part number (MPN)

MTN6185-0325

EAN / GTIN

3606481047632

Sales unit

pcs

Package quantity

50 pcs

Range

SpaceLogic KNX

Product or component type

Push-button

Bus type

KNX

Main colour tint

Active white

Power supply input current

20 mA

Control type

Touch type; Touchless

Sensor type

Temperature

Device mounting

Flush

Number of FUNCTION keys

4

Function available

Pulse edges trigger 1-, 2-, 4- or 8-bit telegrams; Express setting: Calls up a pre-set configuration; Push-button with 1 to 4 operating buttons; Night mode: LEDs light up with reduced brightness; Programmable with ETS4 and higher; Pulse edges with 2-byte telegrams; With status displays; Blind (single/dual-surface); Backlit symbols; Disable functions; Scene retrieval; Behaviour and brightness of the status displays; 8-bit linear regulator; Switching, toggling, dimming (single/dual-surface); Dismantling protection with accesories; Advanced setting: Individual configuration; Scene saving; Proximity function

Local signalling

1 LED per channel (white/green)

Marking

With symbols

Material

Plastic

Colour tint

Active white

surface treatment

Varnished

Width

55 mm

Height

55 mm

Device presentation

Mechanism with fixing frame and cover plate

IP degree of protection

IP20

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

5.400 cm

Package 1 Width

7.600 cm

Package 1 Length

7.700 cm

Package 1 Weight

98.000 g

Unit Type of Package 2

CAR

Number of Units in Package 2

50

Package 2 Height

19.500 cm

Package 2 Width

30.900 cm

Package 2 Length

40.700 cm

Package 2 Weight

5.344 kg

Warranty (in months)

18

Other bus systems

None

Number of actuation points

4

Number of buttons

1

Material quality

Thermoplastic

Surface protection

Lacquered

Surface finishing

Glossy

Colour

White

RAL-number (similar)

9016

Degree of protection (IP)

IP20

Min. depth of built-in installation box

40 mm

Mounting method

Flush-mounted

Country of origin

Germany

HS Code

8536.50

• EAN 3606481047632
• SAP 1200535177
• Code 82822619
