Split Door with Utsp. 4M IP55-G-FOR 11-27MOD
Pricing
Request a quote
We reply within 24 hours
Product Description

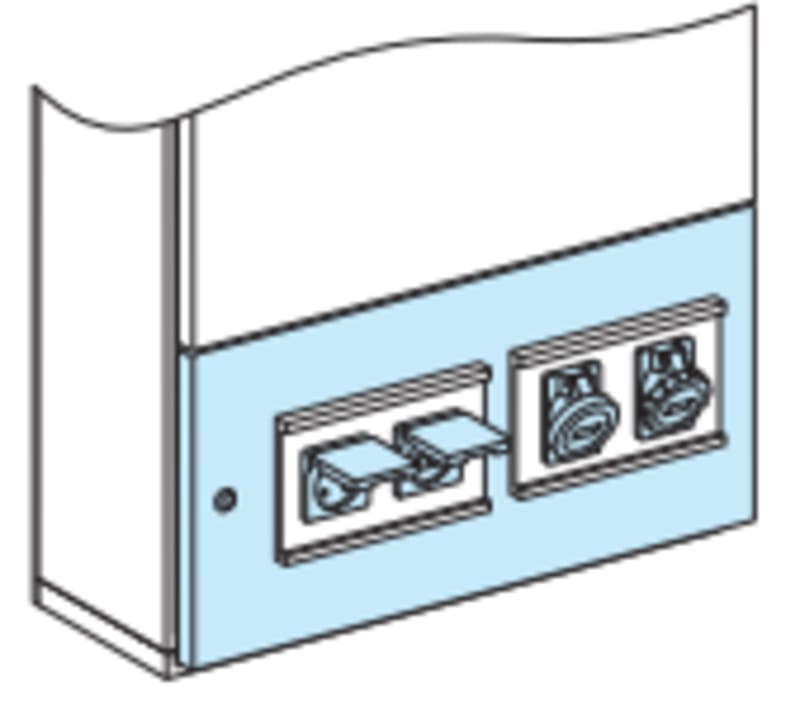

Schneider Electric LVS08376 Split Door with cut-outs-4oduler-for PrismaSeT G IP55-For 11-27modules.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08376
- EAN / GTIN
- 3606481884336
- Sales unit
- pcs
- IP rating
- IP55
- Modular width
- 27 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Partial door
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Provided equipment
- door; 2 hinge; 8 mm male triangle insert; insulating plain mounting plate
- type of door
- Cut-out
- IP degree of protection
- IP55
- installation description
- Wall-mounted enclosure - width 600 mm; Floor-standing enclosure - width 600 mm
- Number of locks
- 3
- door opening angle
- 180 °
- Number of vertical modules [50 mm]
- 4
- Additional information
- Dimensions of the two holes are 200 x 112 mm
- Quantity per set
- Set of 1
- Height
- 575.2 mm
- Width
- 600 mm
- Depth
- 26 mm
- Product weight
- 5.18 kg
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- IK degree of protection
- IK10 conforming to EN/IEC 62262
- Standards
- IEC 61439-2; IEC 61439-1
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Warranty (in months)
- 18
- Model
- Partial door
- EMC-version
- No
- Material
- Steel
- Degree of protection (IP)
- IP55
- Surface finishing
- Powder coating
- Version as glazed door
- No
- Version as door for disconnecting switch interlocking
- No
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481884336
- SAP 1200547547
- Code 82879156
Product Documentation
