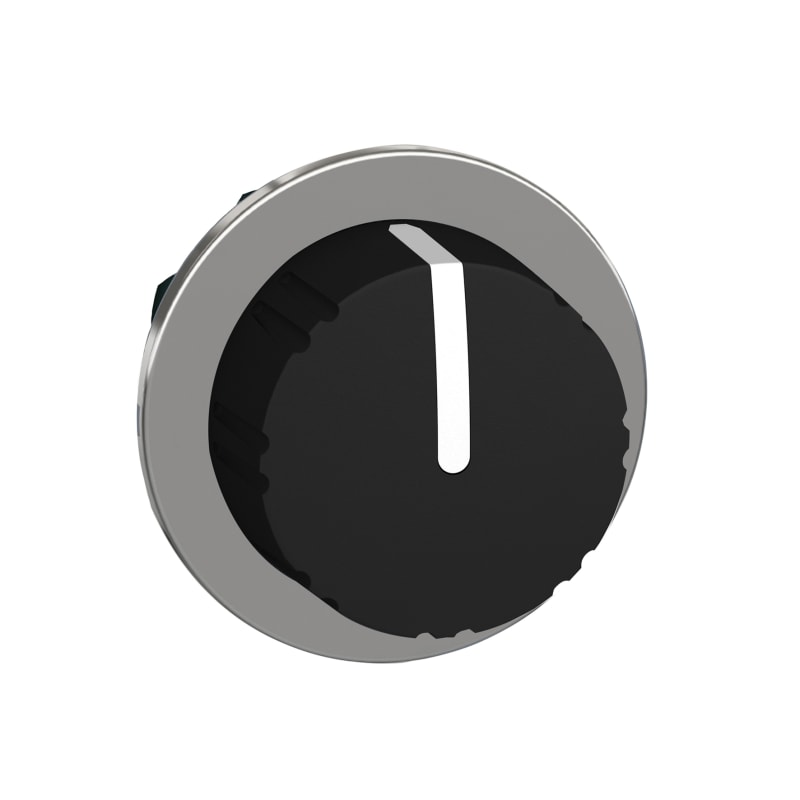

Selector Switch Head flush 3 pos wheel (ZB4FD89)

Schneider Electric ZB4FD89 Selector Switch Head flush with 3 positions and spring return from H for M and black wheel.

Manufacturer part number (MPN)

ZB4FD89

EAN / GTIN

3606489581367

Sales unit

pcs

Range of product

Harmony XB4

Product or component type

Head for selector switch

Device short name

ZB4F

Bezel material

Chromium plated metal

Mounting diameter

30.5 mm

Head type

Built-in-flush

Sale per indivisible quantity

1

Shape of signaling unit head

Round

Type of operator

Right to centre spring return

Operator profile

Black knurled knob

Operator position information

3 positions +/- 45°

CAD overall width

36.6 mm

CAD overall height

36.6 mm

CAD overall depth

47 mm

Product weight

0.080 kg

Resistance to high pressure washer

7000000 Pa at 55 °C, distance : 0.1 m

Mechanical durability

1000000 cycles

Electrical composition code

C3 for <6 contacts using single blocks in front mounting; C4 for <6 contacts using single and double blocks in front mounting; C5 for <5 contacts using single blocks in front mounting; C6 for <5 contacts using single and double blocks in front mounting; C7 for <4 contacts using single blocks in front mounting; C8 for <4 contacts using single and double blocks in front mounting; C11 for <3 contacts using single blocks in front mounting; C15 for <1 contacts using single blocks in front mounting

Device presentation

Basic element

Protective treatment

TH

Ambient air temperature for storage

-40…70 °C

Ambient air temperature for operation

-40…70 °C

Overvoltage category

Class I conforming to IEC 60536

IP degree of protection

IP66 conforming to IEC 60529; IP67 conforming to IEC 60529; IP69 conforming to IEC 60529; IP69K conforming to ISO 20653; Type 13 conforming to UL 50 E; Type 12 conforming to UL 50 E; Type 4 conforming to UL 50 E; Type 4X conforming to UL 50 E

IK degree of protection

IK06 conforming to IEC 50102

Standards

CSA C22.2 No 14; EN/IEC 60947-5-1; EN/IEC 60947-5-4; UL 508; EN/IEC 60947-1; JIS C8201-5-1; CE; JIS C8201-1

Product certifications

UL listed; CSA; CCC; EAC

Vibration resistance

5 gn (f= 10…500 Hz) conforming to IEC 60068-2-6; 2 mm peak to peak (f= 2…10 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 18 ms) for half its wave acceleration conforming to IEC 60068-2-27; 50 gn (duration = 11 ms) for half its wave acceleration conforming to IEC 60068-2-27; 25 gn (duration = 6 ms) for 1000 shocks on each axis conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.3 cm

Package 1 Width

5.2 cm

Package 1 Length

5.5 cm

Package 1 Weight

78.0 g

Country of origin

FR

Warranty (in months)

18

Hole diameter

30.5 mm

Number of switch positions

3

Suitable for lighting

No

Spring-return

No

Colour front ring

Chrome

Degree of protection (IP), front side

IP66

Material front ring

Metal

With front ring

Yes

Construction type lens

Round

Colour control element

Black

Switching function latching

No

Degree of protection (NEMA)

13

HS Code

8538.90
