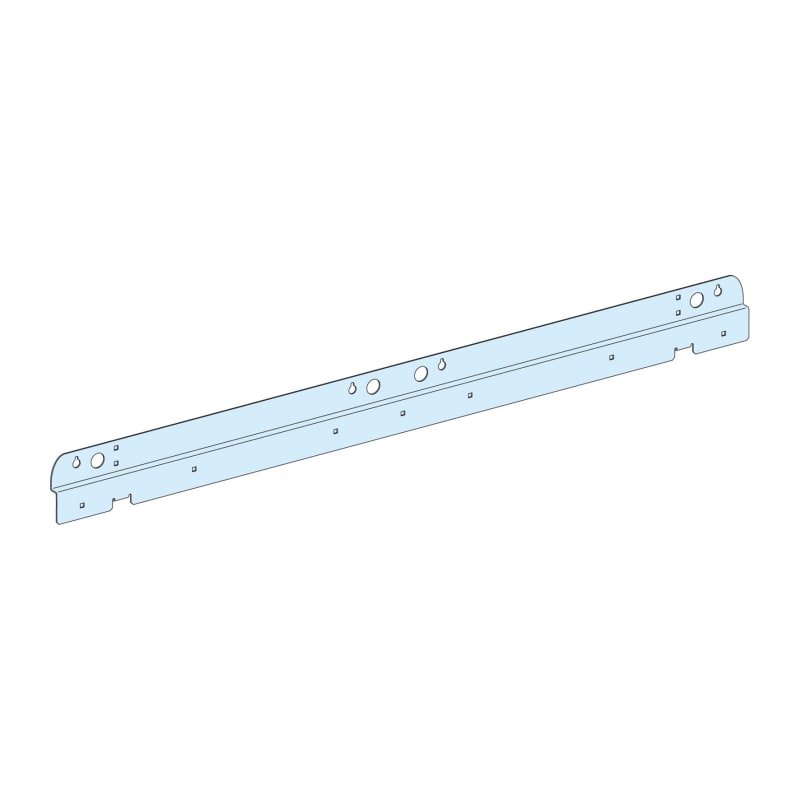

Schneider Electric Combination kit, PrismaSeT G, 2 vertical combination uprights, IP30 LVS08817
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08817 Sammenkoblingssett-2 vertikaler-IP30-for wall-mount cabinet PrismaSeT G.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08817
- EAN / GTIN
- 3606481879738
- Sales unit
- pcs
- IP rating
- IP30
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Upright
- Accessory / separate part category
- Enclosure accessory
- Range compatibility
- PrismaSeT PrismaSeT G enclosure extension
- Product compatibility
- IP43 enclosure; IP30 enclosure; IP31 enclosure
- IP degree of protection
- IP30; IP31; IP43
- Mounting position
- Vertical
- installation description
- Floor-standing enclosure - width 600 mm; Wall-mounted duct - width 300 mm; Floor-standing duct - width 300 mm; Wall-mounted enclosure - width 600 mm
- Quantity per set
- Set of 2
- Height
- 1676 mm
- Product weight
- 9.4 kg
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 25
- Warranty (in months)
- 18
- Model
- Components for lace up technique
- Width
- 170 mm
- Depth
- 25 mm
- RAL-number
- 9003
- Country of origin
- Czechia
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481879738
- SAP 1200547382
- Code 82880695
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Flush mounted push button head, Harmony XB5, plastic, blue, 30mm, spring return, unmarked ZB5FA6
Schneider Electric

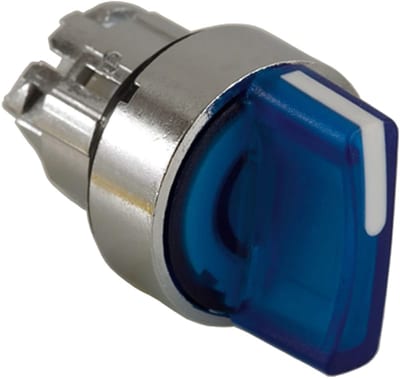

Selector switch with LIGHT 3ST.BLUE LED
ZB4BK1363
Schneider Electric

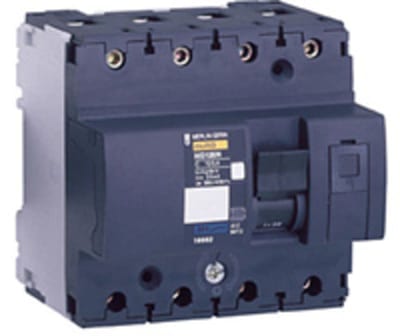

NG125L/B 20-4 Modular Power Switch
18770
Schneider Electric
Schneider Electric Circuit breaker, ComPacT NSXm 63H, 70KA/415VAC, 3 poles, TMD trip unit 40A, EverLink lugs C11H3TM040L
Schneider Electric

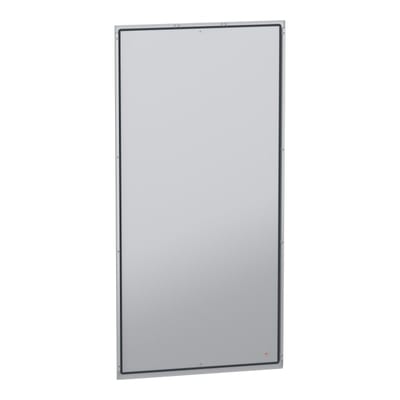

Back panel SFN 2000X1000
NSYBPN2010
Schneider Electric

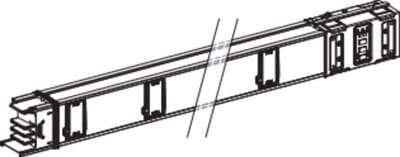

RAIL 630A 3L 5M 10 Outlet
KSA630ED35010
Schneider Electric

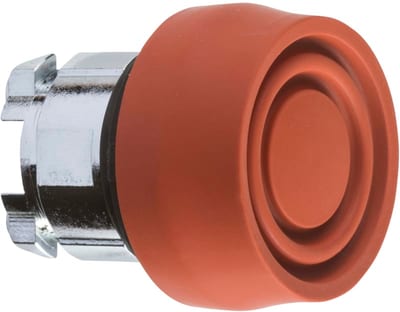

PUSH-Button with RED Silicone Cap
ZB4BP4S
Schneider Electric

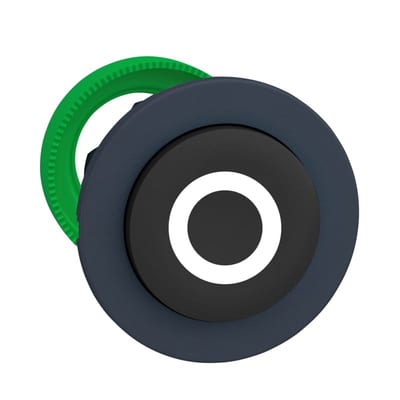

Push-button flush black with text (ZB5FL232)
