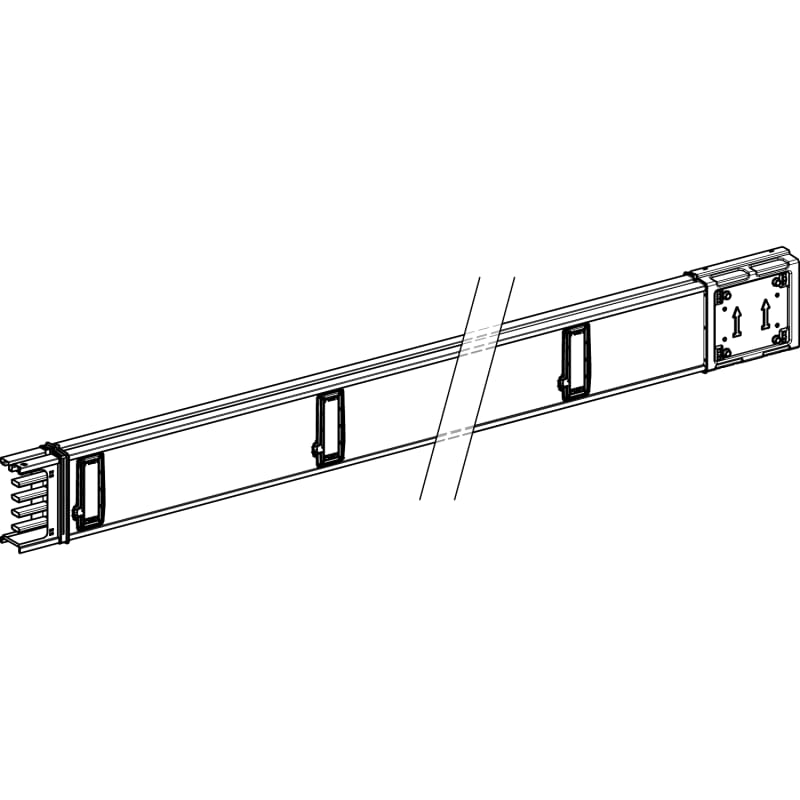

RAIL 400A 2M 8 Outlet

Schneider Electric KSA400ED4208 Canalis KSA. Distribution rails 100-1000A.

Manufacturer part number (MPN)

KSA400ED4208

EAN / GTIN

3606480004810

Sales unit

pcs

Rated current

400 A

Range

Canalis

Device short name

KSA

Offer type

Advanced

Product or component type

Busbar trunking

Busbar description

Horizontal distribution length

Product compatibility

Canalis KSA busbar trunking 400 A

Conductors material

Aluminium

Busbar trunking polarity

3L + N + PE

Number of tap-off outlets

8

[Ie] rated operational current

400 A at 35 °C

IP degree of protection

IP55 conforming to IEC 60529

mounting mode

By screws

Dimension type

Fix

Length

2 m

Colour

White (RAL 9001)

Number of poles

4

Neutral position

Up

Mounting position

Horizontal

[Ue] rated operational voltage

230...690 V

Network frequency

50/60 Hz

[Uimp] rated impulse withstand voltage

8 kV

[Ui] rated insulation voltage

690 V

[Icw] rated short-time withstand current

18.8 kA

[Ipk] rated peak withstand current

49.2 kA

Electrical connection

Lubricated sliding contact

Width

54 mm

Height

146 mm

Product weight

13.9 kg

Tap-off unit interval

500 mm

Radiated magnetic field

1 µT

Thermal stress limit

354000 kA².s

THDI

0…15 % 400 A; 15…33 % 315 A; 33…100 % 250 A

Maximum voltage drop

<0.022 V with power factor = 0.9 at 50 Hz with 1A for 100 m long; <0.022 V with power factor = 0.8 at 50 Hz with 1A for 100 m long; <0.021 V with power factor = 0.7 at 50 Hz with 1A for 100 m long; <0.018 V with power factor = 1 at 50 Hz with 1A for 100 m long

Standards

IEC 61439-1; IEC 61439-6

IK degree of protection

IK08 conforming to IEC 62262

Ambient air temperature for operation

35 °C (without derating); 55 °C (with derating factor)

Number of Units in Package 1

1

Number of Units in Package 2

20

Country of origin

FR

Warranty (in months)

18

Model

Single

Flexible

No

RAL-number

9001

Number of conductors (without earthing)

4

Degree of protection (IP)

IP55

Rated voltage AC 50 Hz

690 V

Number of tap-off units

8

Rated current AC 50 Hz

400 A

HS Code

8536.90

• EAN 3606480004810
• SAP 1200501420
• Code 82624807
