Cable Compartment with door-PrismaSeTG -IP55 23MOD
Pricing
Request a quote
We reply within 24 hours
Product Description

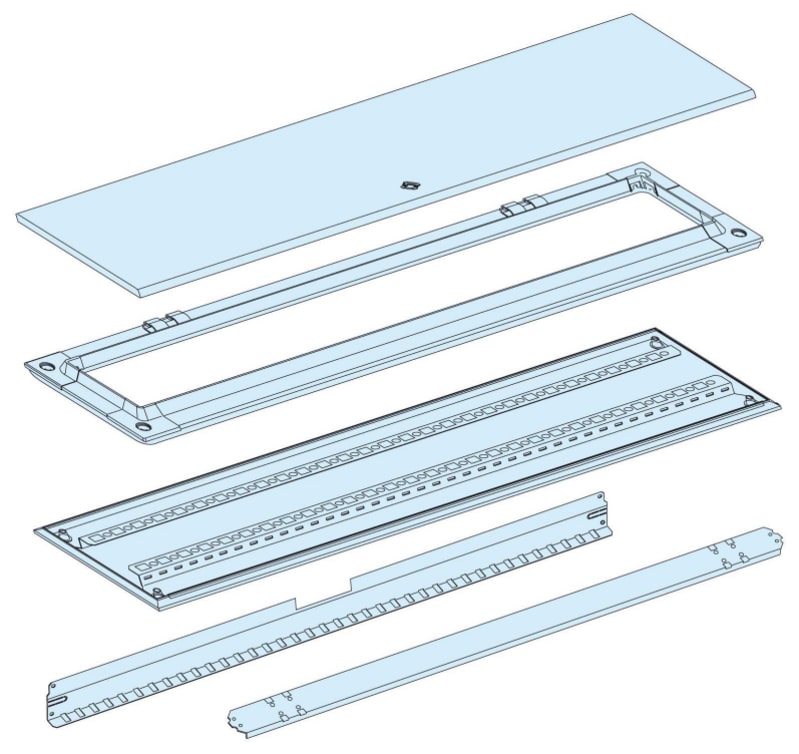

Schneider Electric LVS08346 Cable Compartment with door for PrismaSeT G Wall-mount cabinet 23-modules-width 300mm-IP55.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08346
- EAN / GTIN
- 3606481876690
- Sales unit
- pcs
- IP rating
- IP55
- Modular width
- 23 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Door; Rear panel
- Device application
- Low voltage electrical distribution
- Enclosure type
- Functional enclosure delivered in kit form
- Provided equipment
- 1 x door for enclosure
- Additional information
- Can be combined side by side and one on top of another
- type of front plate
- Without
- Number of vertical modules [50 mm]
- 23
- Number of 18 mm modules per row
- 10
- [Ui] rated insulation voltage
- 1000 V
- [In] rated current
- 630 A at 40 °C conforming to IEC 61439-2
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Matt; Smooth
- Colour
- White (RAL 9001)
- Width
- 300 mm
- Height
- 1250 mm
- Depth
- 260 mm
- Product weight
- 21.44 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP55 with door
- IK degree of protection
- IK10 with door conforming to EN/IEC 62262
- Mechanical robustness
- Seismic tests - 2.5G conforming to IEC 60068-2-57
- Warranty (in months)
- 18
- RAL-number
- 9003
- With mounting plate
- No
- Suitable for wall mounting
- No
- Pre-stamping
- No
- EMC-version
- No
- With glazed door
- No
- Couplable
- No
- Material
- Steel
- Impact strength
- IK10
- Degree of protection (IP)
- IP55
- Suitable for outdoor set-up
- No
- Suitable for metrical mounting
- Yes
- Mounting plate depth-adjustable
- No
- Connectable
- Yes
- With ventilation door
- No
- Wall fastening possible
- Yes
- Surface finishing
- Powder coating
- With rear door
- No
- Suitable for wall built-in
- No
- With cover
- No
- With door
- No
- Pitched roof
- No
- Pole fastening
- No
- Transparent cover
- No
- Suitable for outdoor installation
- No
- Floor standing wall model
- No
- Freestanding
- No
- Corner model
- No
- Intermediate mounting
- No
- Country of origin
- Italy
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481876690
- SAP 1200547535
- Code 82880405
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric TeSys D reversing contactor - 3P(3 NO) - AC-3 - <= 440 V 65 A - 24 V DC coil LC2D65ABD
Schneider Electric
Side Plates IP55 PrismaSeT G 33MOD
LVS08359
Schneider Electric
Schneider Electric Carriage switch, MasterPact MTZ1/2/3 drawout, chassis connected position (CE), 1 NO/NC contact, standard, 8A/240VAC LV833751
Schneider Electric

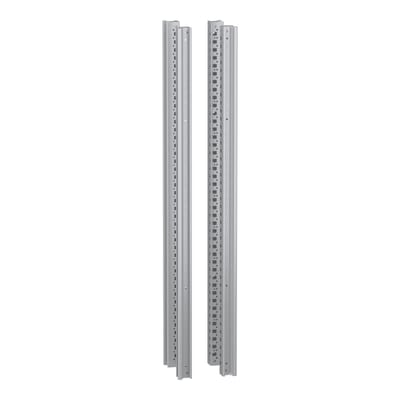

Schneider Electric NSYSFNV12 PanelSeT SFN Vertical Corner Uprights, 1200 mm
Schneider Electric

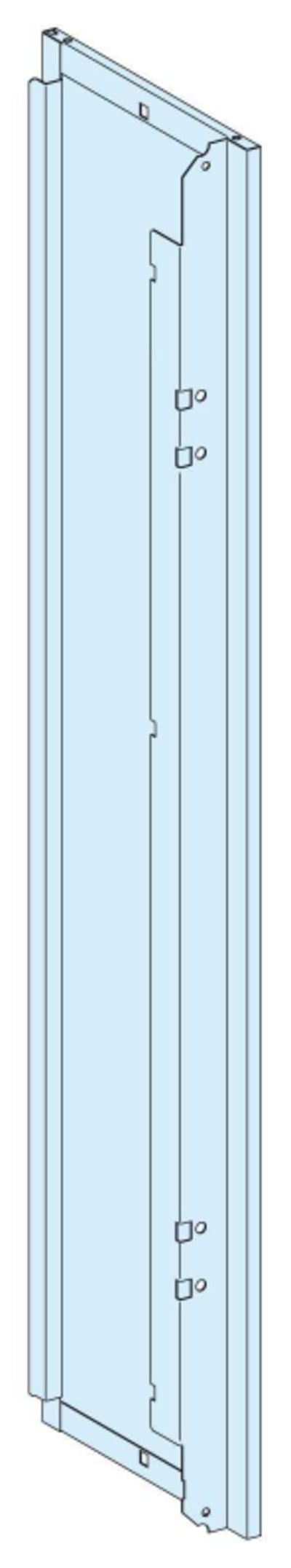

Side Plates IP55 PrismaSeT G 27MOD
LVS08357
Schneider Electric

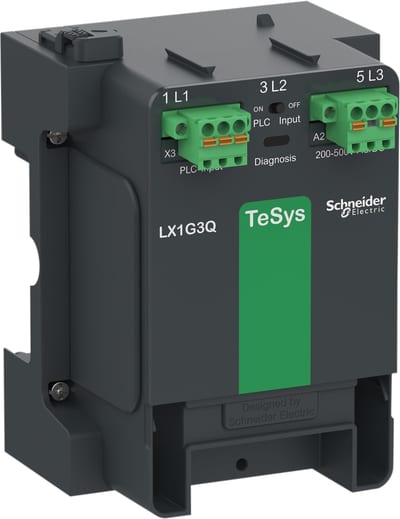

Coil 24-48V Adv 3P G115-225
LX1G3QBEEA
Schneider Electric

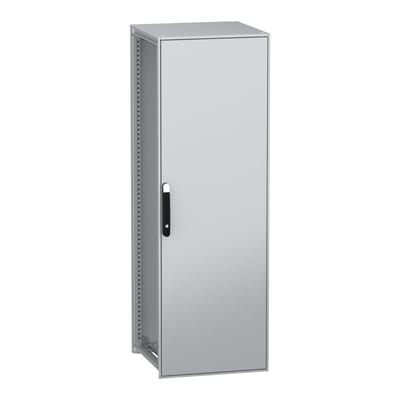

Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X600X600MM, IP55 NSYSFN18660
Schneider Electric

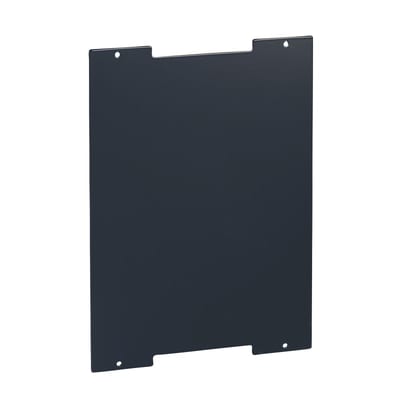

Schneider Electric LV833858SP Blanking Plate for Masterpact MTZ1 Drawout Door Cutout
