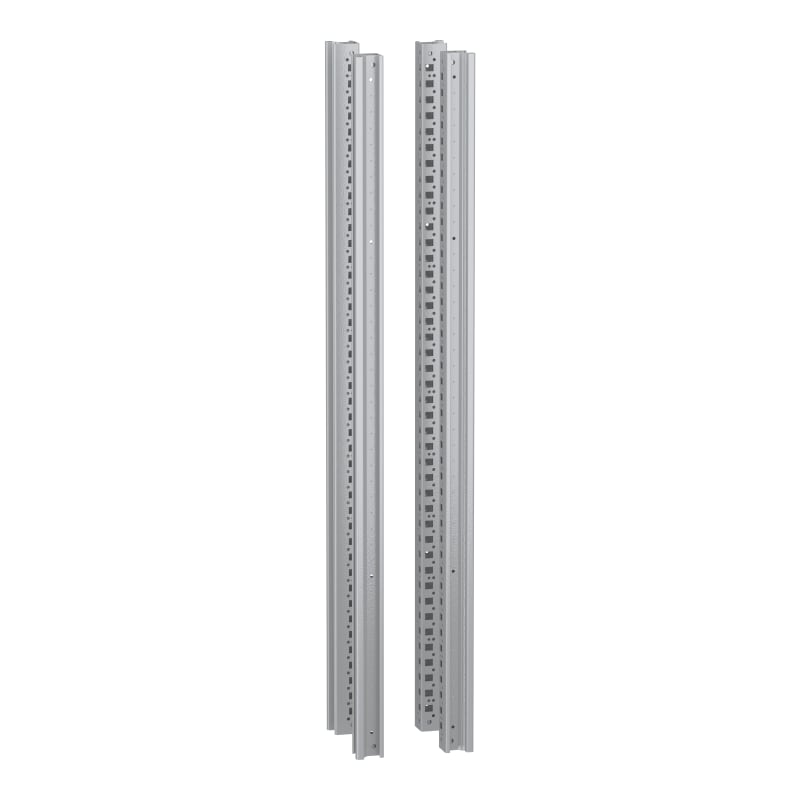

Schneider Electric NSYSFNV12 PanelSeT SFN Vertical Corner Uprights, 1200 mm
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric NSYSFNV12 is a set of four vertical corner uprights for PanelSeT SFN floor-standing enclosures with a build height of 1200 mm. Uprights are steel with a textured epoxy-polyester finish in RAL 7035 grey and fix by M12 screws. Section is 45 by 45 mm and set weight is 11.5 kg.
Technical Specifications
- Manufacturer part number (MPN)
- NSYSFNV12
- EAN / GTIN
- 3606486103852
- Sales unit
- pcs
- Range
- PanelSeT
- Accessory / separate part category
- Mounting accessory
- Product or component type
- Vertical upright
- device application
- Multi-purpose
- enclosure nominal dimensions
- -
- Mounting support
- Bottom frame and top frame with roof
- Range compatibility
- PanelSeT SFN
- Device composition
- 4 upright
- Quantity per set
- Set of 1
- Material
- Steel
- Surface finish
- Textured epoxy polyester
- Fixing mode
- By screws - screw type M12
- Height
- 1200 mm
- Width
- 45 mm
- Depth
- 45 mm
- Product weight
- 11.5 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 5.000 cm
- Package 1 Width
- 21.000 cm
- Package 1 Length
- 113.000 cm
- Package 1 Weight
- 12.000 kg
- Unit Type of Package 2
- PAM
- Number of Units in Package 2
- 40
- Package 2 Height
- 65.000 cm
- Package 2 Width
- 100.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 492.000 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Model
- Profile
- Suitable for enclosure building height
- 1200 mm
- Colour
- Grey
- RAL-number
- 7035
Standards & Compliance
- HS Code
- 8302.42
Cross References
- EAN 3606486103852
- SAP 1200698093
- Code 83799620
