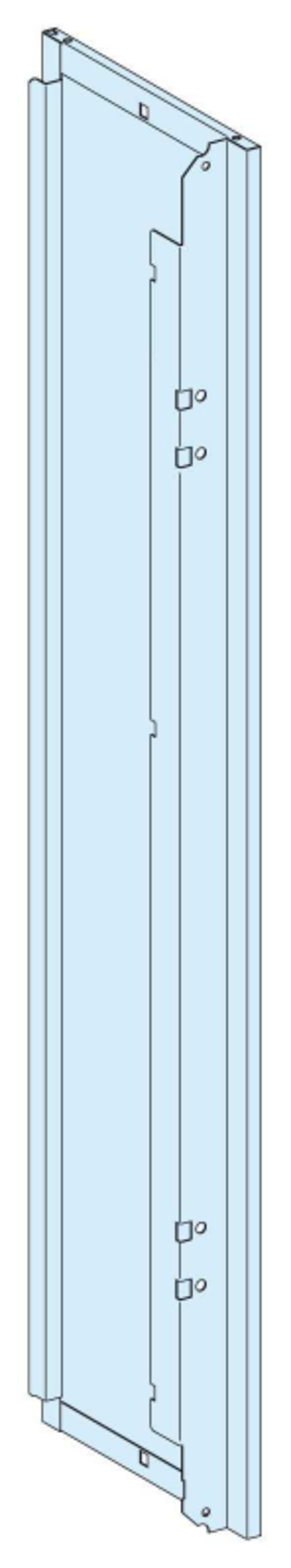

Side Plates IP55 PrismaSeT G 27MOD
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08357 Side Plates for IP55 PrismaSeT G 27modules- for 600mm expansion panel and 300mm cable compartment.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08357
- EAN / GTIN
- 3606481884572
- Sales unit
- pcs
- IP rating
- IP55
- Modular width
- 27 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Side panel
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure
- installation description
- Wall-mounted enclosure - width 600 mm
- Kit composition
- 2 side panel
- Number of vertical modules [50 mm]
- 27
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Special colour options
- Yes
- Width
- 250 mm
- Height
- 1450 mm
- Product weight
- 9.02 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP55 for enclosure
- IK degree of protection
- IK10
- Warranty (in months)
- 18
- Suitable as side panel
- Yes
- Suitable as rear panel
- No
- Suitable for enclosure building depth
- 260 mm
- Surface finishing
- Powder coating
- RAL-number
- 9003
- With cable entry
- No
- Number of height units
- 27
- With lock
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481884572
- SAP 1200547543
- Code 82879251
Product Documentation
