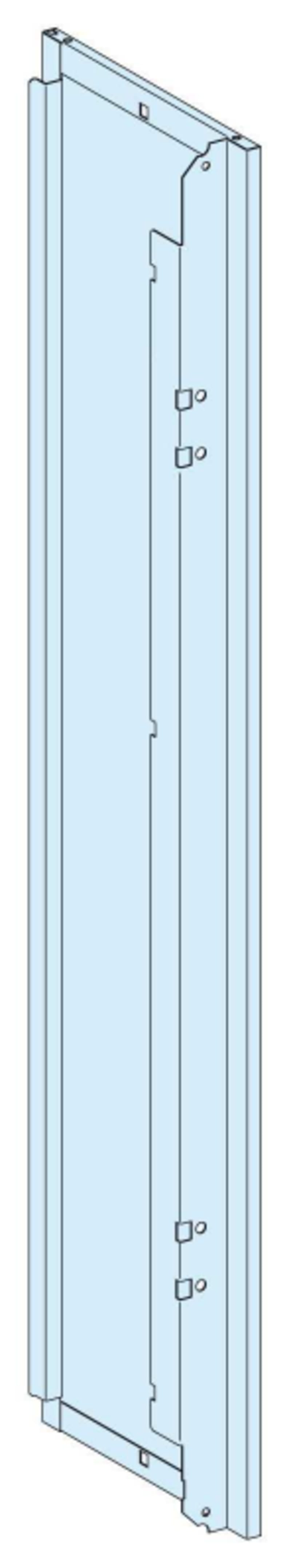

Side Plates IP55 PrismaSeT G 33MOD
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS08359 Side Plates for IP55 PrismaSeT G 33modules- for 600mm expansion panel and 300mm cable compartment.
Technical Specifications
- Manufacturer part number (MPN)
- LVS08359
- EAN / GTIN
- 3606481884565
- Sales unit
- pcs
- IP rating
- IP55
- Modular width
- 33 modules
- Range
- PrismaSeT
- Range of product
- PrismaSeT G
- Product or component type
- Side panel
- Range compatibility
- PrismaSeT PrismaSeT G enclosure
- Device application
- Low voltage electrical distribution
- Enclosure type
- Metal enclosure
- installation description
- Wall-mounted enclosure - width 600 mm
- Kit composition
- 2 side panel
- Number of vertical modules [50 mm]
- 33
- Standards
- IEC 61439-1 for enclosure; IEC 61439-2 for enclosure
- Product certifications
- ASTA
- Material
- Treated sheet steel
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Surface finish
- Textured; Matt
- Colour
- White (RAL 9003)
- Special colour options
- Yes
- Width
- 250 mm
- Height
- 1750 mm
- Product weight
- 10.86 kg
- Quantity per set
- Set of 1
- IP degree of protection
- IP55 for enclosure
- IK degree of protection
- IK10
- Warranty (in months)
- 18
- Suitable as side panel
- Yes
- Suitable as rear panel
- No
- Suitable for enclosure building depth
- 260 mm
- Surface finishing
- Powder coating
- RAL-number
- 9003
- With cable entry
- No
- Number of height units
- 33
- With lock
- No
- Country of origin
- France
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481884565
- SAP 1200547544
- Code 82879349
Product Documentation
More from Schneider Electric
Schneider Electric
Schneider Electric Carriage switch, MasterPact MTZ1/2/3 drawout, chassis connected position (CE), 1 NO/NC contact, standard, 8A/240VAC LV833751
Schneider Electric
Schneider Electric NSYSFNV12 PanelSeT SFN Vertical Corner Uprights, 1200 mm
Schneider Electric
Side Plates IP55 PrismaSeT G 27MOD
LVS08357
Schneider Electric
Coil 24-48V Adv 3P G115-225
LX1G3QBEEA
Schneider Electric
Schneider Electric Floor standing modular electrical enclosure, PanelSeT SFN, decarbonized steel, 1800X600X600MM, IP55 NSYSFN18660
Schneider Electric
Schneider Electric LV833858SP Blanking Plate for Masterpact MTZ1 Drawout Door Cutout
Schneider Electric

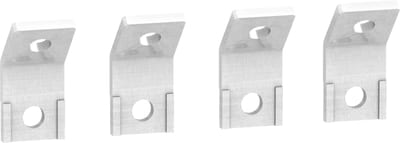

Schneider Electric Terminal extensions, ComPacT NSX 400/630, 45 degrees, set of 4 parts LV432587
Schneider Electric

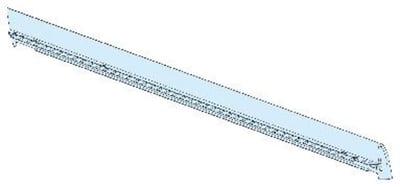

Vertical sammenconnection G 30 M
