Schneider Electric Wall mounted duct, PrismaSeT G, W 300mm, H 1080mm (21M), IP30, without side plates LVS08177

Schneider Electric LVS08177 Cable Compartment PrismaSeT G Wall-mount cabinet 21-modules-width 300mm-IP30.

Manufacturer part number (MPN)

LVS08177

EAN / GTIN

3606481877086

Sales unit

pcs

IP rating

IP30

Range

PrismaSeT

Range of product

PrismaSeT G

Product or component type

Duct

Device application

Low voltage electrical distribution

Enclosure type

Functional enclosure delivered in kit form; Metal enclosure; Indoor enclosure

Enclosure/cubicle description

Wall-mounted duct - width 300 mm

Kit composition

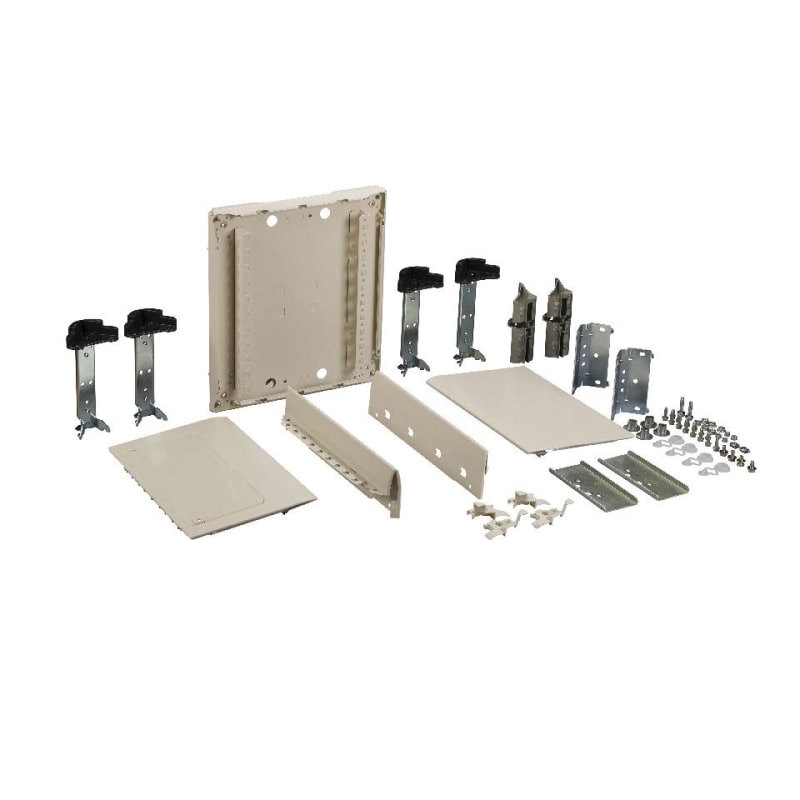

uprights; rear plate; top plate; bottom plate

Additional information

Can be combined side by side and one on top of another

type of front plate

Without to be ordered separately

Number of vertical modules [50 mm]

21

Number of 18 mm modules per row

10

Standards

IEC 61439-1; IEC 61439-2; IEC 62208

Product certifications

ASTA; EAC

[Ui] rated insulation voltage

1000 V on main rear busbars conforming to IEC 61439-2

Network frequency

50/60 Hz

[In] rated current

630 A at 40 °C conforming to IEC 61439-2

Short-circuit current

50 kA

[Icw] rated short-time withstand current

25 kA 1 s conforming to IEC 61439-1

[Ipk] rated peak withstand current

53 kA conforming to IEC 61439-1

Electrical insulation class

Class I

Material

Treated sheet steel

Protective treatment

Electrophoresis treatment and hot-polymerised polyester epoxy powder

Surface finish

Textured; Matt

Colour

White (RAL 9003)

Width

305 mm

Height

1080 mm

Depth

205 mm

Product weight

9.58 kg

Quantity per set

Set of 1

IP degree of protection

IP30 with front plate; IP40 with door; IP41 with door and canopy; IP43 with door, canopy and IP43 gasket

IK degree of protection

IK07 with front plate; IK08 with transparent door; IK10 with plain door

Mechanical robustness

Seismic tests - 2.5G conforming to IEC 60068-2-57

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

10.500 cm

Package 1 Width

35.500 cm

Package 1 Length

114.000 cm

Package 1 Weight

10.200 kg

Unit Type of Package 2

P12

Number of Units in Package 2

16

Package 2 Height

95.000 cm

Package 2 Width

80.000 cm

Package 2 Length

120.000 cm

Package 2 Weight

175.000 kg

Country of origin

FR

Warranty (in months)

18

RAL-number

9003

With mounting plate

No

Suitable for wall mounting

Yes

Pre-stamping

No

EMC-version

No

With glazed door

No

Couplable

No

Impact strength

IK07

Degree of protection (IP)

IP30

Suitable for outdoor set-up

No

Suitable for metrical mounting

Yes

Mounting plate depth-adjustable

No

Connectable

Yes

With ventilation door

No

Wall fastening possible

Yes

Surface finishing

Powder coating

With rear door

No

Suitable for wall built-in

No

With cover

No

With door

No

Pitched roof

No

Pole fastening

No

Transparent cover

No

Suitable for outdoor installation

No

Floor standing wall model

No

Freestanding

No

Corner model

No

Intermediate mounting

No

HS Code

9403.20
