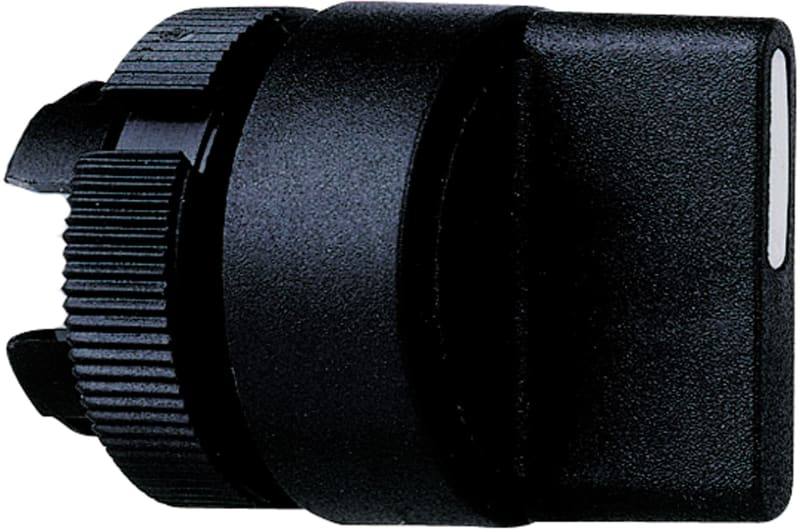

Schneider Electric black selector switch - 3 positions - standard handle ZA2BD3

Schneider Electric ZA2BD3 Selector Switch Head Short Black.

Manufacturer part number (MPN)

ZA2BD3

EAN / GTIN

3389110645316

Sales unit

pcs

Package quantity

10 pcs

Range of product

Harmony XAC

Product or component type

Selector switch

Component name

ZA2

Product compatibility

XACA

Product weight

0.018 kg

Cap/operator or lens colour

Black

Marking

Unmarked

Mounting location

Front of enclosure

Sale per indivisible quantity

1

Standards

IEC 60947-5-1; IEC 60204-32; UL 508; CSA C22.2 No 14

Ambient air temperature for operation

-25…70 °C

Ambient air temperature for storage

-40…70 °C

Vibration resistance

15 gn (f= 10…500 Hz) conforming to IEC 60068-2-6

Shock resistance

100 gn conforming to IEC 60068-2-27

Overvoltage category

Class II conforming to IEC 61140

IP degree of protection

IP65 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

4.200 cm

Package 1 Width

3.000 cm

Package 1 Length

4.500 cm

Package 1 Weight

21.000 g

Unit Type of Package 2

BB1

Number of Units in Package 2

10

Package 2 Height

4.000 cm

Package 2 Width

19.200 cm

Package 2 Length

22.000 cm

Package 2 Weight

218.000 g

Unit Type of Package 3

S02

Number of Units in Package 3

100

Package 3 Height

15.000 cm

Package 3 Width

30.000 cm

Package 3 Length

40.000 cm

Package 3 Weight

2.433 kg

Country of origin

FR

Warranty (in months)

18

Hole diameter

22.5 mm

Number of switch positions

3

Suitable for lighting

No

Spring-return

No

Colour front ring

Black

Degree of protection (IP), front side

IP66

Material front ring

Plastic

With front ring

Yes

Construction type lens

Round

Type of control element

Short rotary handle

Colour control element

Black

Switching function latching

Yes

HS Code

8538.90

• EAN 3389110645316
• SAP 1000038069
• Code 8518325
