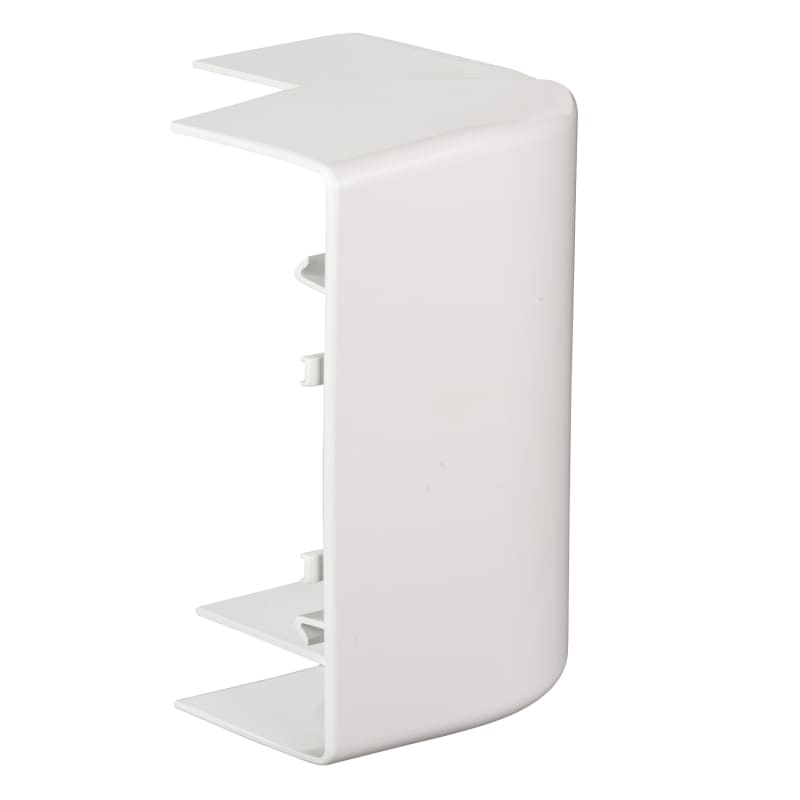

Schneider Electric OptiLine 45 - external corner - 140 x 55 mm - PC/ABS - polar white ISM10302P
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric ISM10302P OptiLine 45 External corner PC/ABS White Halogen-free for 140x55mm channels - 1 pcs.
Technical Specifications
- Manufacturer part number (MPN)
- ISM10302P
- EAN / GTIN
- 3606480681691
- Sales unit
- pcs
- Range of product
- OptiLine 45
- Cabling installation system
- Trunking
- product type
- External corner
- colour
- Polar white (RAL 9003)
- quantity package 1 / unit
- Set of 1
- Trunking material
- Plastic
- Trunking dimension
- 140 x 55 mm
- fixing mode
- Snap-fitted
- product material
- PC/ABS
- Length
- 105 mm
- Height
- 149 mm
- Width
- 105 mm
- Standards
- 73/23/EEC; 93/68/EEC; EN 50085-1:2005; EN 50085-1:2013/A1; EN 50085-2-1:2006; EN 50085-2-1:2011/A1
- operating temperature
- -25…60 °C
- IP degree of protection
- IP40
- IK degree of protection
- IK07
- Number of Units in Package 1
- 1
- Number of Units in Package 2
- 20
- Warranty (in months)
- 18
- Model
- Moulded hood
- Halogen free
- Yes
- Depth
- 105 mm
- RAL-number
- 9003
- Surface protection
- Untreated
- Material
- Plastic
- Mounting method cover
- Spanned
- Impact strength
- IK07
- Number of covers
- 1
- Bottom perforation
- No
- With cable fixing clip
- No
- With duct connector
- No
- With protective foil
- No
- Symmetric
- Yes
- Angle
- 75–135 °
- Degree of protection (IP)
- IP40
- Country of origin
- Poland
Standards & Compliance
- HS Code
- 3925.90
Cross References
- EAN 3606480681691
- SAP 1200536239
- Code 82696387
Product Documentation
