Shield clamp Linergy LGY Rear-mounted
Pricing
Request a quote
We reply within 24 hours
Product Description

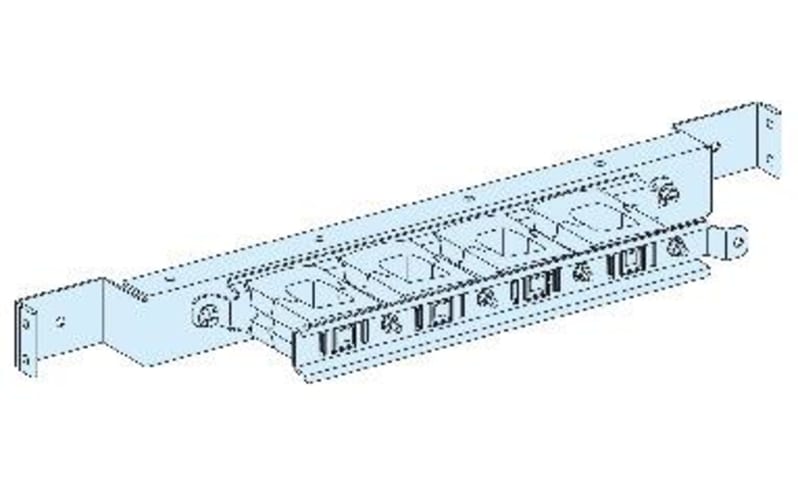

Schneider Electric LVS04652 Shield clamp for vertical busbar-Linergy LGY-rear-mounted-PrismaSeT P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04652
- EAN / GTIN
- 3606481867070
- Sales unit
- pcs
- Package quantity
- 8 pcs
- Range
- Linergy
- Range of product
- Linergy
- Product or component type
- Busbar support
- Product name
- Linergy LGY
- Range compatibility
- Linergy Linergy LGY busbar; PrismaSeT PrismaSeT P enclosure
- Provided equipment
- Supplied with 8.8 class mounting hardware
- Cubicle-device connection
- rear Linergy busbar
- installation description
- Cubicle - width 650 mm
- Product weight
- 2.76 kg
- Quantity per set
- Set of 1
- Standards
- IEC 61439-1; IEC 61439-2
- Product certifications
- ASTA
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 6.000 cm
- Package 1 Width
- 9.000 cm
- Package 1 Length
- 58.000 cm
- Package 1 Weight
- 2.774 kg
- Unit Type of Package 2
- S04
- Number of Units in Package 2
- 8
- Package 2 Height
- 30.000 cm
- Package 2 Width
- 40.000 cm
- Package 2 Length
- 60.000 cm
- Package 2 Weight
- 22.899 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Number of poles
- 4
- Busbar distance
- 75 mm
- Max. rated current
- 1600 A
Standards & Compliance
- HS Code
- 8538.90
Cross References
- EAN 3606481867070
- SAP 1200547008
- Code 82879405
