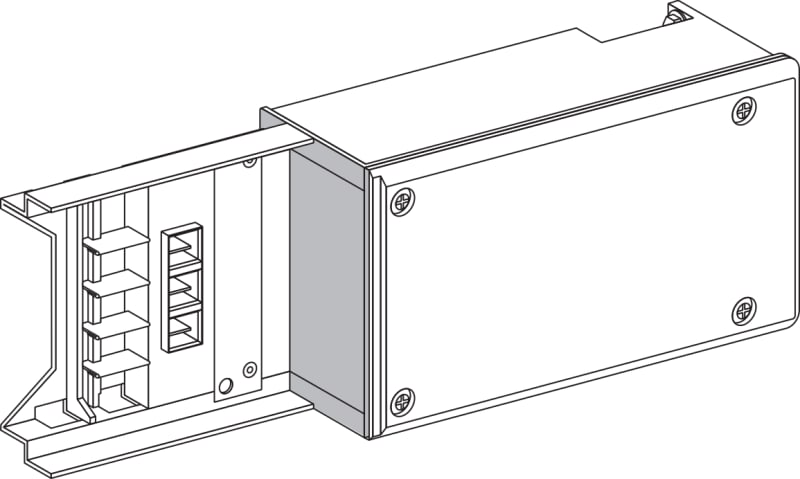

End feed 40-63A LH/PURE WHITE (KNA63AB4)

Schneider Electric KNA63AB4 End feed 40-63A V/H.

Manufacturer part number (MPN)

KNA63AB4

EAN / GTIN

3606480003172

Sales unit

pcs

Range of product

Canalis

Product name

KN

Device short name

KNA

Product compatibility

Canalis KNA busbar trunking 40…63 A

Product or component type

Feed unit

Conductors material

Aluminium

[Ie] rated operational current

63 A

[Ue] rated operational voltage

230...500 V

Number of circuits

1

Busbar trunking polarity

3L + N + PE; L + N + PE

Protection type

Without protection

Control type

Without

Colour

White (RAL 9001)

Provided equipment

End cover

Mounting location

Left; Right

mounting mode

By clips

Mounting support

Busbar

Connections - terminals

Terminal block for 16 mm² flexible; Terminal block for 25 mm² rigid

Width

265 mm

Depth

71 mm

Height

92 mm

Product weight

580 g

Standards

IEC 61439-6

IP degree of protection

IP55 conforming to IEC 60529

IK degree of protection

IK08 conforming to IEC 62262

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

8.000 cm

Package 1 Width

11.000 cm

Package 1 Length

29.900 cm

Package 1 Weight

666.000 g

Unit Type of Package 2

P06

Number of Units in Package 2

36

Package 2 Height

37.400 cm

Package 2 Width

60.000 cm

Package 2 Length

80.000 cm

Package 2 Weight

28.976 kg

Country of origin

FR

Warranty (in months)

18

Model

Single

RAL-number

9001

Number of poles

4

Length

265 mm

Degree of protection (IP)

IP55

Power supply position

End

Rated voltage AC 50 Hz

230–500 V

Rated current AC 50 Hz

63 A

HS Code

8536.90

• EAN 3606480003172
• SAP 1000470792
• Code 8580339
