Schneider Electric PrismaSeT Form 2 front barrier, lateral vertical busbar, L=150 mm
Pricing
Request a quote
We reply within 24 hours
Product Description

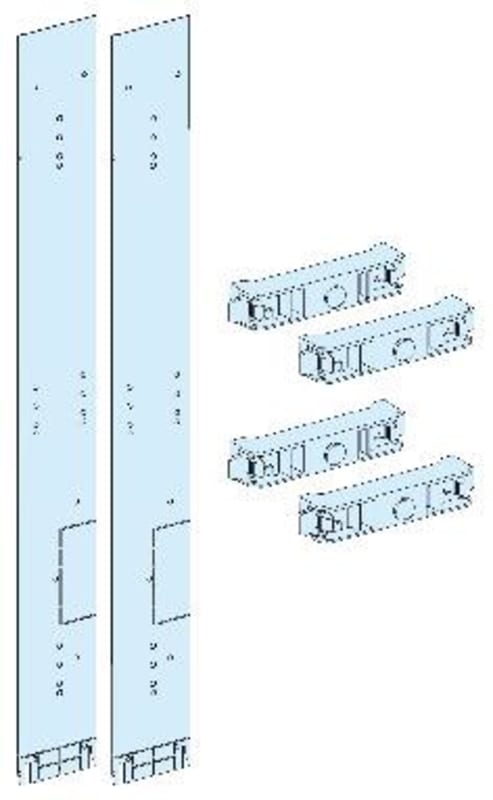

Schneider Electric LVS04921 — Form 2 front barrier for lateral vertical busbars, L = 150 mm, in the PrismaSeT P range. Steel construction with white (RAL 9003) matt textured powder-coated finish, height 996 mm, weight 2.32 kg. Insulation accessory for cubicle-duct 150 mm width, 36 vertical modules. Country of origin: FR.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04921
- EAN / GTIN
- 3606481880307
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT P
- Product or component type
- Barrier
- Accessory / separate part category
- Insulation accessory
- Range compatibility
- PrismaSeT PrismaSeT P framework
- Cubicle partitioning form
- Form 2
- Barrier position
- Rear; Front
- installation description
- Cubicle duct - width 150 mm
- Installed device
- Vertical lateral busbar
- Number of vertical modules [50 mm]
- 36
- Quantity per set
- Set of 1
- Material
- Steel
- Height
- 996 mm
- Surface finish
- Matt; Textured
- Protective treatment
- Electrophoresis treatment and hot-polymerised polyester epoxy powder
- Colour
- White (RAL 9003)
- Product weight
- 2.32 kg
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 3.000 cm
- Package 1 Width
- 12.000 cm
- Package 1 Length
- 101.000 cm
- Package 1 Weight
- 2.283 kg
- Unit Type of Package 2
- P12
- Number of Units in Package 2
- 120
- Package 2 Height
- 73.000 cm
- Package 2 Width
- 80.000 cm
- Package 2 Length
- 120.000 cm
- Package 2 Weight
- 285.940 kg
- Country of origin
- FR
- Warranty (in months)
- 18
- Suitable for enclosure building width
- 150 mm
- Surface finishing
- Powder coating
- RAL-number
- 9003
- With cable entry
- No
- With lock
- No
- Construction type
- Individual part
- For internal separation form 2a
- No
- For internal separation form 2b
- No
- For internal separation form 3a
- No
- For internal separation form 3b
- No
- For internal separation form 4a
- No
- For internal separation form 4b
- No
Standards & Compliance
- HS Code
- 7326.90
Cross References
- EAN 3606481880307
- SAP 1200547179
- Code 82879806
Product Documentation
