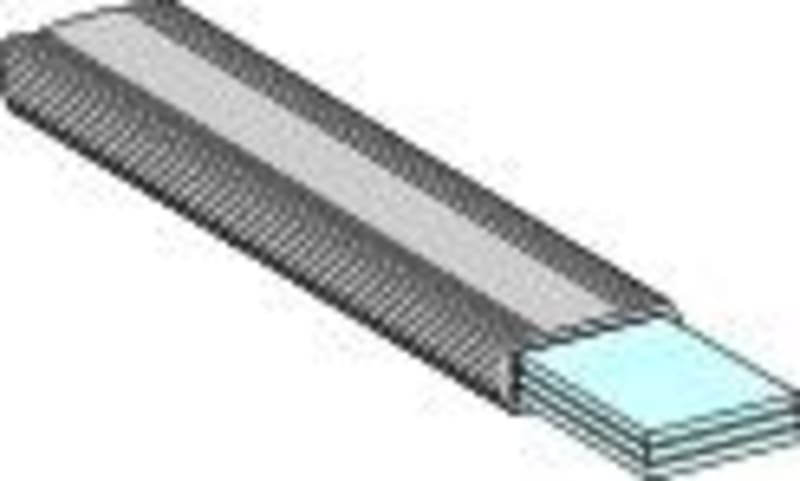

Schneider Electric Insulated flexible bar, 580 A, size 32 x 6 mm, length 1800 mm LVS04752
Pricing
Request a quote
We reply within 24 hours
Product Description
Schneider Electric LVS04752 Flexisbel rail insulated 580A 32X6mm length 1800mm PrismaSeT G/P.
Technical Specifications
- Manufacturer part number (MPN)
- LVS04752
- EAN / GTIN
- 3606481868275
- Sales unit
- pcs
- Range
- PrismaSeT
- Range of product
- PrismaSeT G; PrismaSeT P
- Product or component type
- Insulated flexible bar
- product name
- PrismaSeT PrismaSeT G enclosure; PrismaSeT PrismaSeT P enclosure
- Accessory / separate part category
- Current distribution accessory
- Standards
- IEC 61439-2, inside enclosure; IEC 61439-1, inside enclosure
- Product certifications
- ASTA
- installation description
- Cubicle; Floor-standing enclosure; Wall-mounted enclosure
- Installed device
- ComPact: INS500...630; ComPact: INV500...630
- [Ie] rated operational current
- 580 A
- Busbar cross section
- 32 x 6 mm
- Length
- 1800 mm
- Product weight
- 3.88 kg
- Quantity per set
- Set of 1
- Unit Type of Package 1
- PCE
- Number of Units in Package 1
- 1
- Package 1 Height
- 2.0 cm
- Package 1 Width
- 11.5 cm
- Package 1 Length
- 194.0 cm
- Package 1 Weight
- 3.775 kg
- Unit Type of Package 2
- P2M
- Number of Units in Package 2
- 100
- Package 2 Height
- 29.0 cm
- Package 2 Width
- 120.0 cm
- Package 2 Length
- 200.0 cm
- Package 2 Weight
- 399.0 kg
- Warranty (in months)
- 18
- Width
- 32 mm
- Height
- 6 mm
- Flexible
- Yes
- Rated current In
- 580 A
- Country of origin
- France
Standards & Compliance
- HS Code
- 8544.49
Cross References
- EAN 3606481868275
- SAP 1200547144
- Code 82879222
