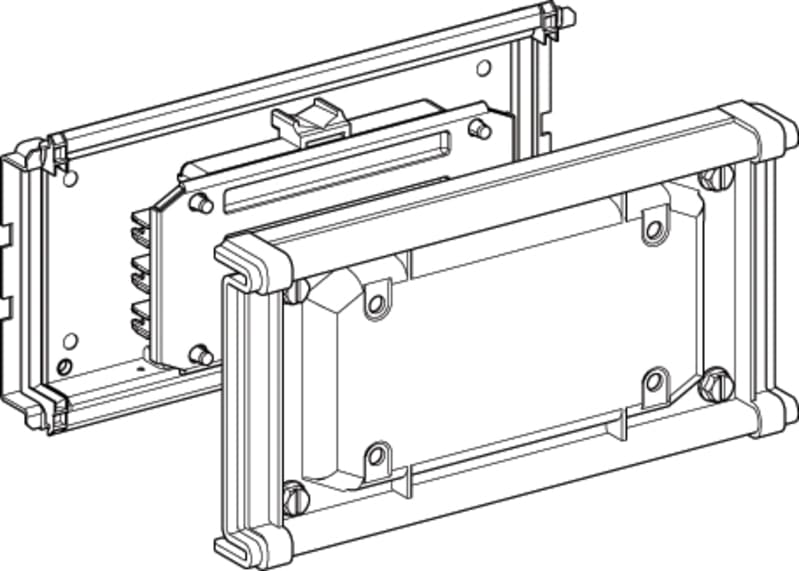

Schneider Electric KNA160ZJ4 Canalis KN Joint Coupling 160 A

Schneider Electric KNA160ZJ4 is an electrical and mechanical jointing element for Canalis KN busbar trunking rated 100-160 A at 230-500 V, supplied as a single-circuit spare part. The block measures 200 mm wide by 100 mm high by 38 mm deep and weighs 600 g, finished white (RAL 9001). Ratings include IP55 per IEC 60529 and IK08 per IEC 62262, conforming to IEC 61439-6 and IEC 60439-2. Country of origin is FR.

Manufacturer part number (MPN)

KNA160ZJ4

EAN / GTIN

3606485013237

Sales unit

pcs

Package quantity

15 pcs

Rated current

160 A

Range of product

Canalis

Product name

KN

Product or component type

Electrical and mechanical jointing

Product compatibility

KN

[Ie] rated operational current

100 A; 160 A

Offer type

Spare part

Colour

White (RAL 9001)

Device application

Low power distribution

[Ue] rated operational voltage

230...500 V

Control type

Without

Number of circuits

1

Width

200 mm

Depth

38 mm

Height

100 mm

Product weight

600 g

IK degree of protection

IK08 conforming to IEC 62262

IP degree of protection

IP55 conforming to IEC 60529

Standards

IEC 61439-6; IEC 60439-2

Number of Units in Package 1

1

Number of Units in Package 2

15

Number of Units in Package 3

60

Country of origin

FR

Warranty (in months)

18

Type of accessory/spare part

Coupling

Accessory

Yes

Spare part

Yes

HS Code

8536.90

• EAN 3606485013237
• SAP 1000470790
• Code 8580333
